TC工具之filter中U32工具匹配规则
规则讲解
tc filter add dev ifb0 parent 1: protocol ip u32 match u16 0x0800 0xffff at -2 flowid 100:0
上面的命令match u16 0x0800 0xffff at -2 是什么意思呢，到底想匹配数据包的哪个字段？

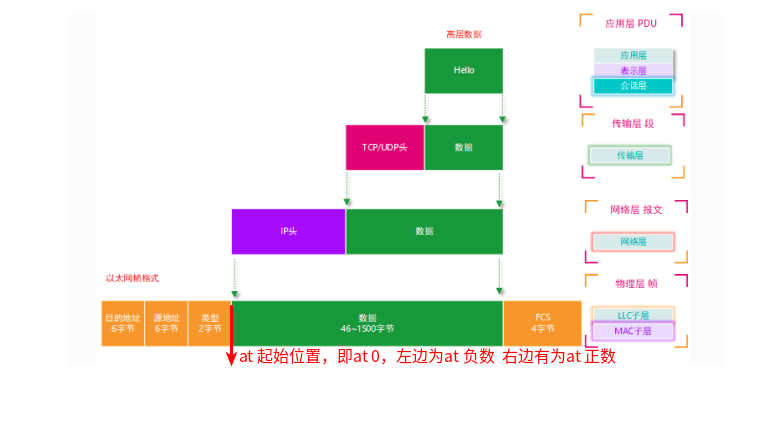

看下面的图：at的起始位置是二层报文的协议类型的结尾，即第14个字节(6+6+2)后，左边为负 右边为正

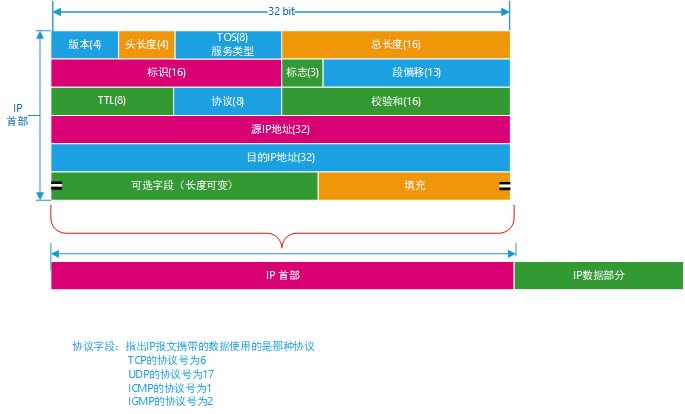

match u16 0x0800 0xffff at -2代表匹配以太网帧2字节的类型 ，掩码为0xffff，配置值为0x0800 即为IP数据报文，如果是ARP协议的话为0x0806match u8 0xe2 0xff at 1代表匹配ip协议的TOS字段 ，使用u8 匹配一个字节，0xff是掩码，at 1 是去掉1个字节（版本+头长度），即tos开始的位置，也可以使用match u16 0x00e2 0x00ff at 0效果一样，从at 0 开始，用u16匹配两个字节的数据，只不过我们不关心第一个字节的数据，所以掩码为0x00ff
tc filter 中的u32一些常用的命令
源地址匹配
match ip src 192.168.1.200/24tc filter add dev ifb0 parent 1: protocol ip u32 match ip src 192.168.1.200/24 flowid 100:0
目的地址匹配
match ip dst 192.168.1.200/24tc filter add dev ifb0 parent 1: protocol ip u32 match ip dst 192.168.1.200/24 flowid 100:0
单个ip匹配
match ip 192.168.1.200/24tc filter add dev ifb0 parent 1: protocol ip u32 match ip 192.168.1.200/24 flowid 100:0
端口匹配
match ip dport 80 0xffff或者源端口匹配match ip sport 80 0xffff这里的掩码其实可以匹配一段的端口号，例如下面：
match ip sport 4096 0xf000 = sport 4096-8191 match ip sport 8192 0xe000 = sport 8192-16383
根据ip协议
match ip protocol 1 0xff这里的1(icmp)是根据/etc/protocols里面内容确定ip 0 IP # internet protocol, pseudo protocol number hopopt 0 HOPOPT # IPv6 Hop-by-Hop Option [RFC1883] icmp 1 ICMP # internet control message protocol igmp 2 IGMP # Internet Group Management ggp 3 GGP # gateway-gateway protocol ipencap 4 IP-ENCAP # IP encapsulated in IP (officially ``IP'') st 5 ST # ST datagram mode tcp 6 TCP # transmission control protocol egp 8 EGP # exterior gateway protocol igp 9 IGP # any private interior gateway (Cisco) pup 12 PUP # PARC universal packet protocol udp 17 UDP # user datagram protocol hmp 20 HMP # host monitoring protocol xns-idp 22 XNS-IDP # Xerox NS IDP rdp 27 RDP # "reliable datagram" protocol iso-tp4 29 ISO-TP4 # ISO Transport Protocol class 4 [RFC905] dccp 33 DCCP # Datagram Congestion Control Prot. [RFC4340] xtp 36 XTP # Xpress Transfer Protocol ddp 37 DDP # Datagram Delivery Protocol idpr-cmtp 38 IDPR-CMTP # IDPR Control Message Transport ipv6 41 IPv6 # Internet Protocol, version 6 ipv6-route 43 IPv6-Route # Routing Header for IPv6 ipv6-frag 44 IPv6-Frag # Fragment Header for IPv6 idrp 45 IDRP # Inter-Domain Routing Protocol rsvp 46 RSVP # Reservation Protocol gre 47 GRE # General Routing Encapsulation esp 50 IPSEC-ESP # Encap Security Payload [RFC2406] ah 51 IPSEC-AH # Authentication Header [RFC2402] skip 57 SKIP # SKIP ipv6-icmp 58 IPv6-ICMP # ICMP for IPv6 ipv6-nonxt 59 IPv6-NoNxt # No Next Header for IPv6 ipv6-opts 60 IPv6-Opts # Destination Options for IPv6 rspf 73 RSPF CPHB # Radio Shortest Path First (officially CPHB) vmtp 81 VMTP # Versatile Message Transport eigrp 88 EIGRP # Enhanced Interior Routing Protocol (Cisco) ospf 89 OSPFIGP # Open Shortest Path First IGP ax.25 93 AX.25 # AX.25 frames ipip 94 IPIP # IP-within-IP Encapsulation Protocol etherip 97 ETHERIP # Ethernet-within-IP Encapsulation [RFC3378] encap 98 ENCAP # Yet Another IP encapsulation [RFC1241] # 99 # any private encryption scheme pim 103 PIM # Protocol Independent Multicast ipcomp 108 IPCOMP # IP Payload Compression Protocol vrrp 112 VRRP # Virtual Router Redundancy Protocol [RFC5798] l2tp 115 L2TP # Layer Two Tunneling Protocol [RFC2661] isis 124 ISIS # IS-IS over IPv4 sctp 132 SCTP # Stream Control Transmission Protocol fc 133 FC # Fibre Channel mobility-header 135 Mobility-Header # Mobility Support for IPv6 [RFC3775] udplite 136 UDPLite # UDP-Lite [RFC3828] mpls-in-ip 137 MPLS-in-IP # MPLS-in-IP [RFC4023] manet 138 # MANET Protocols [RFC5498] hip 139 HIP # Host Identity Protocol shim6 140 Shim6 # Shim6 Protocol [RFC5533] wesp 141 WESP # Wrapped Encapsulating Security Payload rohc 142 ROHC # Robust Header Compression
比如要匹配tcp协议
match ip protocol 6 0xff比如要tos为0x90
match ip tos 0x90 0xff对应的dscp 为0x90>>2bit = 36 即匹配36的dscp标签
总结
match [ u32 | u16 | u8 ] PATTERN MASK [ at OFFSET | nexthdr+OFFSET]
[ u32 | u16 | u8 ]:给出要匹配数据的位数PATTERN ：要匹配的值
MASK ：掩码

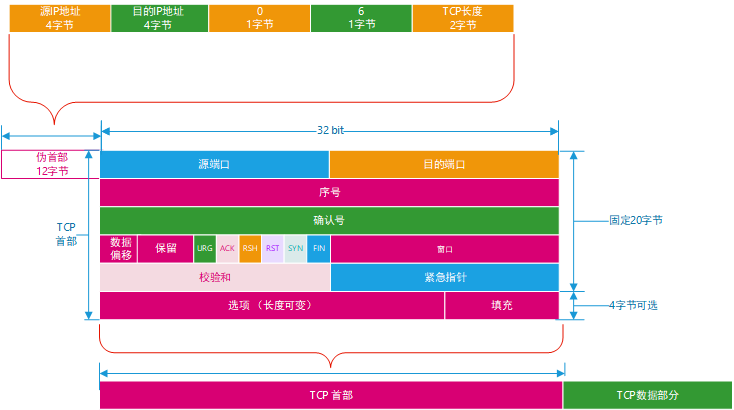

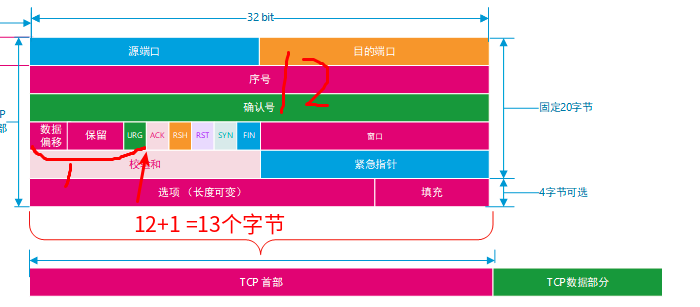

[ at OFFSET | nexthdr+OFFSET]：at的起始位置为二层协议后，即14字节后开始，向前为负 向后为正，如果出现nexthdr+ 则跳到上层协议开始处，例如下面的匹配，匹配协议为tcp协议，nexthdr跳过ip协议，来到他的上层协议tcp部分为起始位置，+13 刚好偏移到ack处，
match ip protocol 6 0xff \ match u8 0x10 0xff at nexthdr+13 \ flowid 1:3
