高通QSDK 常用测试命令

Host端Shell脚本直接在设备端执行方法

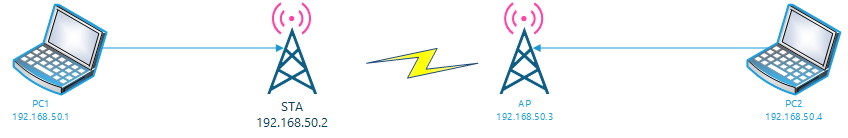

如上图所示的链路关系

  1. PC1上的脚本在STA端执行或者PC1上脚本在AP端执行方法

    • 在编写PC1端编写脚本格式如下（ps：假如脚本名字：script.sh）：

      #!/bin/bash
#指示需要在哪台设备执行
SCRIPT_DEV_IP=192.168.50.1

#自定义需要执行的命令
function scan()
{
    wpa_cli -p /var/run/wpa_supplicant-$1 -i $1 scan
}
function scan_res()
{
    wpa_cli -p /var/run/wpa_supplicant-$1 -i $1 scan_res
}


function main()
{
	case $1 in
		"scan")
            ssh root@$SCRIPT_DEV_IP  "$(typeset -f);scan $2"
           fi

		;;
		"scan_res")
            ssh root@$SCRIPT_DEV_IP  "$(typeset -f);scan_res $2"
		;;
		*)
			echo -e "args is error"
		;;
	esac
}

main $@

    • 在PC1端执行下面的命令即可

      #举例说明1:执行扫描ap命令
./script.sh scan ath2

#举例说明2:执行查询上次扫描结果命令
./script.sh scan_res ath2

常用的命令

  1. 设置单通道

    wifitool ath2 custom_chan_list -n -band 2 1 64
#2 band
#1 几个频段
#64 频段


2. 列出当前sta连接ap

   ```bash
   root@OpenWrt:/# wlanconfig ath0 list ap
   SSID            BSSID              CHAN RATE  S:N   INT CAPS
   xymAP           8c:1f:64:cc:b0:50   64   54M 45:0   100 EPsR RSN VEN VEN WME VEN VEN

  1. 列出当前ap连接的sta

    root@OpenWrt:/# wlanconfig ath0 list sta
ADDR               AID CHAN TXRATE RXRATE RSSI MINRSSI MAXRSSI IDLE  TXSEQ  RXSEQ  CAPS XCAPS ACAPS     ERP    STATE MAXRATE(DOT11) HTCAPS   VHTCAPS ASSOCTIME    IEs   MODE RXNSS TXNSS                   PSMODE
8c:1f:64:cc:b0:40    1   64   6M    229M  -66     -67     -66  144      0   65535   EPs  ETWt NULL    0          b         286800             APM           1gTRs 00:31:49     RSN WME IEEE80211_MODE_11AXA_HE20  4 4   0

 RSSI is combined over chains in dBm
 Minimum Tx Power               : 0
 Maximum Tx Power               : 0
 HT Capability                  : Yes
 VHT Capability                 : Yes
 MU capable                     : No
 SNR                            : 28
 Operating band                 :    5GHz
 Current Operating class        : 118
 Supported Operating classes    : 115  118  124  121  125  116  119  122  126  126  117  120  123  127  127  128  129  130
 Supported Rates                : 12  18  24  36  48  72  96  108
 Max STA phymode                : IEEE80211_MODE_11AXA_HE20

  2. 查看sta 连接状态

root@OpenWrt:/# iw dev ath2 link
Not connected. # 说明没有连接ap


root@OpenWrt:/# iw dev ath2 link
Connected to 8c:1f:64:cc:b0:60 (on ath2)
        SSID: xymAP #说明连接的ap名字
        freq: 5320

  1. 列出当前信道和可用信道

    root@OpenWrt:/# iwlist ath0 channel
ath0      25 channels in total; available frequencies :
          Channel 36 : 5.18 GHz
          Channel 40 : 5.2 GHz
          Channel 44 : 5.22 GHz
          Channel 48 : 5.24 GHz
          Channel 52 : 5.26 GHz
          Channel 56 : 5.28 GHz
          Channel 60 : 5.3 GHz
          Channel 64 : 5.32 GHz
          Channel 100 : 5.5 GHz
          Channel 104 : 5.52 GHz
          Channel 108 : 5.54 GHz
          Channel 112 : 5.56 GHz
          Channel 116 : 5.58 GHz
          Channel 120 : 5.6 GHz
          Channel 124 : 5.62 GHz
          Channel 128 : 5.64 GHz
          Channel 132 : 5.66 GHz
          Channel 136 : 5.68 GHz
          Channel 140 : 5.7 GHz
          Channel 144 : 5.72 GHz
          Channel 149 : 5.745 GHz
          Channel 153 : 5.765 GHz
          Channel 157 : 5.785 GHz
          Channel 161 : 5.805 GHz
          Channel 165 : 5.825 GHz
          Current Frequency:5.18 GHz (Channel 36)

  2. 显示当前带宽功率和通道

    root@OpenWrt:/# iw ath2 info
Interface ath2
        ifindex 21
        wdev 0x200000002
        addr 8c:1f:64:cc:b0:40
        ssid xymAP
        type managed
        wiphy 2
        channel 64 (5320 MHz), width: 20 MHz, center1: 5320 MHz
        txpower 24.00 dBm

  3. AP Level层面统计信息

    root@OpenWrt:/# apstats -a -i ath2
apstats: Warning - Ignoring Interface Name input for AP Level.
AP Level Stats:

WLAN Stats:
Tx Data Packets                 = 3727
Tx Data Bytes                   = 771671
Rx Data Packets                 = 2436
Rx Data Bytes                   = 227283
Tx Unicast Data Packets         = 3727
Tx Multi/Broadcast Data Packets = 0
Resource Utilization (0-255)    = <DISABLED>
Average Tx Rate (kbps)          = <NO STA>
Average Rx Rate (kbps)          = <NO STA>
Rx PHY errors                   = 12
Rx CRC errors                   = 0
Rx MIC errors                   = 0
Rx Decryption errors            = 0
Rx errors                       = 0
Tx failures                     = 0
Tx Dropped                      = 0
Throughput (kbps)               = <DISABLED>
Total PER (%)                   = 0
PER over configured period (%)  = <DISABLED>

  4. VAP Level层面的统计信息

    root@OpenWrt:/#  apstats -v -i ath2
VAP Level Stats: ath2 (under radio wifi2)
Tx Data Packets                 = 3727
Tx Data Bytes                   = 771671
Tx Offer Data Packets           = 3770
Tx Offer Data Bytes             = 776377
Tx Data Payload Bytes           = 719493
Tx Eapol Packets                = 0
Rx Data Packets                 = 2434
Rx Data Bytes                   = 227177
Rx Data Payload Bytes           = 193101
Tx Data Packets per AC:
 Best effort                    = 7432
 Background                     = 0
 Video                          = 0
 Voice                          = 84
Rx Data Packets per AC:
 Best effort                    = 4524
 Background                     = 0
 Video                          = 0
 Voice                          = 390
Tx Unicast Data Packets         = 3727
Rx Unicast Data Packets         = 2297
Tx Multi/Broadcast Data Packets = 0
Rx Multi/Broadcast Data Packets = 137
Last Packet Error Rate(PER)     = 0
Average Tx Rate (kbps)          = <NO STA>
Average Rx Rate (kbps)          = <NO STA>
Tx multicast Data Packets       = 0
Tx Broadcast Data Packets       = 0
Tx Broadcast Data Bytes         = 0
Rx multicast Data Packets       = 137
Rx Broadcast Data Packets       = 0
Packets Dropped                 = 0
Packets Errored                 = 0
Rx errors                       = 0
Rx Dropped                      = 0
Tx failures                     = 0
Tx Dropped                      = 0
Tx Mgmt Failures                = 0
Host Discard                    = 0
Rx MIC Errors                   = 0
Last Tx rate for unicast Packets        = 154900
Last Tx rate for unicast Packets(mcs)   = 6
Last Tx rate for multicast Packets      = 0
Last Tx rate for multicast Packets(mcs) = 0
Total number of offchan TX mgmt frames = 0
Total number of offchan TX data frames = 0
Number of failed offchan TX frames = 0
Total beacons sent to fw in SWBA intr = 0
Retries                         = 1324
Tx Mgmt Packets                 = 35
Rx Mgmt Packets                 = 28
Connections refuse Radio limit  = 0
Connections refuse Vap limit    = 0
802.11 Auth Attempts            = 8
802.11 Auth Success             = 8
MLME Authorize Attempts         = 0
MLME Authorize Success          = 8
Peer delete req                 = 7
Peer delete resp                = 7
Peer delete all req             = 0
Peer delete all resp            = 0
Excessive retries per AC:
 Best effort                    = 0
 Background                     = 0
 Video                          = 0
 Voice                          = 0
Beacon success                  = 0
Beacon failed                   = 0
Probe request drops             = 0
OOB probe requests              = 0
Wildcard probe requests drops   = 0
FILS enable                     = 0
FILS frames sent                = 0
FILS frames sent fail           = 0
6GHz stats:
 unsolicited probe response success = 0
 unsolicited probe response failed = 0
 20TU probe response status     = 0
 20TU probe response interval   = 0
Non-Tx Profile rollback count when ema_ext enabled = 0
IE Overflow count for Tx/Non-Tx VAP Beacon resource overflow = 0

  5. radio Level统计信息

    root@OpenWrt:/# apstats -r -i wifi2
Radio Level Stats: wifi2
Tx Data Packets                 = 3727
Tx Data Bytes                   = 771671
Rx Data Packets                 = 2436
Rx Data Bytes                   = 227283
Tx Unicast Data Packets         = 3727
Tx Multi/Broadcast Data Packets = 0
Tx Data Packets per AC:
 Best effort                    = 7432
 Background                     = 0
 Video                          = 0
 Voice                          = 84
Rx Data Packets per AC:
 Best effort                    = 4524
 Background                     = 0
 Video                          = 0
 Voice                          = 390
Channel Utilization (0-255)     = <DISABLED>
Tx Beacon Frames                = 0
Tx Mgmt Frames                  = 35
Rx Mgmt Frames                  = 28
Rx Mgmt Frames dropped(RSSI too low) = 0
Tx Ctl Frames                   = 0
Rx Ctl Frames                   = 0
Rx RSSI                         = 57
Rx PHY errors                   = 12
Rx CRC errors                   = 0
Rx MIC errors                   = 0
Rx Decryption errors            = 0
Rx errors                       = 0
Tx failures                     = 0
Tx Dropped                      = 0
Connections refuse Radio limit  = 0
Connections refuse Vap limit    = 0
802.11 Auth Attempts            = 8
802.11 Auth Success             = 8
MLME Authorize Attempts         = 0
MLME Authorize Success          = 8
Self BSS chan util              = 0
OBSS chan util                  = 0
lithium_cycle_counts:
lithium_cycle_cnt: Chan NF (BDF averaged NF_dBm) = -91
lithium_cycle_cnt: Tx Frame Cnt = 1356584
lithium_cycle_cnt: Rx Frame Cnt = 2611648728
lithium_cycle_cnt: Rx Clear Cnt = 2748593055
lithium_cycle_cnt: Cycle Cnt    = 3923166492
lithium_cycle_cnt: Phy Err Cnt  = 12
lithium_cycle_cnt: Chan Tx Pwr  = 48
Current profile periodicity     = <DISABLED>
Number of Active Vaps           = 0
TX Vap ID                       = <DISABLED>
Throughput (kbps)               = <DISABLED>
PER over configured period (%)  = <DISABLED>
Total PER (%)                   = 0
Co-located RNR stats:
 Created vap:                   = 0
 Active vap:                    = 0
 RNR count:                     = 0
 6GHz SoC status:               = 0

  6. 在AP端显示连接的STA的信息

root@OpenWrt:/# apstats -s -m 8C:1F:64:CC:B0:40
Node Level Stats: 8c:1f:64:cc:b0:40 (under VAP ath0)
Tx Data Packets                 = 0
Tx Data Bytes                   = 0
Tx Success Data Packets         = 0
Tx Success Data Bytes           = 0
Tx Data Packets per AC:
 Best effort                    = 0
 Background                     = 0
 Video                          = 0
 Voice                          = 0
Rx Data Packets per AC:
 Best effort                    = 5
 Background                     = 1
 Video                          = 0
 Voice                          = 0
Tx Success Unicast Data Packets = 0
TX MCS Stats
OFDM 48 Mbps: 0
OFDM 24 Mbps: 0
OFDM 12 Mbps: 0
OFDM 6 Mbps : 0
OFDM 54 Mbps: 0
OFDM 36 Mbps: 0
OFDM 18 Mbps: 0
OFDM 9 Mbps : 0
CCK 11 Mbps Long  : 0
CCK 5.5 Mbps Long : 0
CCK 2 Mbps Long   : 0
CCK 1 Mbps Long   : 0
CCK 11 Mbps Short : 0
CCK 5.5 Mbps Short: 0
CCK 2 Mbps Short  : 0
HT MCS 0 (BPSK 1/2)  : 0
HT MCS 1 (QPSK 1/2)  : 0
HT MCS 2 (QPSK 3/4)  : 0
HT MCS 3 (16-QAM 1/2): 0
HT MCS 4 (16-QAM 3/4): 0
HT MCS 5 (64-QAM 2/3): 0
HT MCS 6 (64-QAM 3/4): 0
HT MCS 7 (64-QAM 5/6): 0
VHT MCS 0 (BPSK 1/2)     : 0
VHT MCS 1 (QPSK 1/2)     : 0
VHT MCS 2 (QPSK 3/4)     : 0
VHT MCS 3 (16-QAM 1/2)   : 0
VHT MCS 4 (16-QAM 3/4)   : 0
VHT MCS 5 (64-QAM 2/3)   : 0
VHT MCS 6 (64-QAM 3/4)   : 0
VHT MCS 7 (64-QAM 5/6)   : 0
VHT MCS 8 (256-QAM 3/4)  : 0
VHT MCS 9 (256-QAM 5/6)  : 0
VHT MCS 10 (1024-QAM 3/4): 0
VHT MCS 11 (1024-QAM 5/6): 0
HE MCS 0 (BPSK 1/2)     : 0
HE MCS 1 (QPSK 1/2)     : 0
HE MCS 2 (QPSK 3/4)     : 0
HE MCS 3 (16-QAM 1/2)   : 0
HE MCS 4 (16-QAM 3/4)   : 0
HE MCS 5 (64-QAM 2/3)   : 0
HE MCS 6 (64-QAM 3/4)   : 0
HE MCS 7 (64-QAM 5/6)   : 0
HE MCS 8 (256-QAM 3/4)  : 0
HE MCS 9 (256-QAM 5/6)  : 0
HE MCS 10 (1024-QAM 3/4): 0
HE MCS 11 (1024-QAM 5/6): 0
HE MCS 12 (4096-QAM 3/4): 0
HE MCS 13 (4096-QAM 5/6): 0
RX MCS Stats
OFDM 48 Mbps: 0
OFDM 24 Mbps: 0
OFDM 12 Mbps: 0
OFDM 6 Mbps : 0
OFDM 54 Mbps: 0
OFDM 36 Mbps: 0
OFDM 18 Mbps: 0
OFDM 9 Mbps : 0
CCK 11 Mbps Long  : 0
CCK 5.5 Mbps Long : 0
CCK 2 Mbps Long   : 0
CCK 1 Mbps Long   : 0
CCK 11 Mbps Short : 0
CCK 5.5 Mbps Short: 0
CCK 2 Mbps Short  : 0
HT MCS 0 (BPSK 1/2)  : 0
HT MCS 1 (QPSK 1/2)  : 0
HT MCS 2 (QPSK 3/4)  : 0
HT MCS 3 (16-QAM 1/2): 0
HT MCS 4 (16-QAM 3/4): 0
HT MCS 5 (64-QAM 2/3): 0
HT MCS 6 (64-QAM 3/4): 0
HT MCS 7 (64-QAM 5/6): 0
VHT MCS 0 (BPSK 1/2)     : 0
VHT MCS 1 (QPSK 1/2)     : 0
VHT MCS 2 (QPSK 3/4)     : 0
VHT MCS 3 (16-QAM 1/2)   : 0
VHT MCS 4 (16-QAM 3/4)   : 0
VHT MCS 5 (64-QAM 2/3)   : 0
VHT MCS 6 (64-QAM 3/4)   : 0
VHT MCS 7 (64-QAM 5/6)   : 0
VHT MCS 8 (256-QAM 3/4)  : 0
VHT MCS 9 (256-QAM 5/6)  : 0
VHT MCS 10 (1024-QAM 3/4): 0
VHT MCS 11 (1024-QAM 5/6): 0
HE MCS 0 (BPSK 1/2)     : 1
HE MCS 1 (QPSK 1/2)     : 0
HE MCS 2 (QPSK 3/4)     : 0
HE MCS 3 (16-QAM 1/2)   : 0
HE MCS 4 (16-QAM 3/4)   : 0
HE MCS 5 (64-QAM 2/3)   : 0
HE MCS 6 (64-QAM 3/4)   : 5
HE MCS 7 (64-QAM 5/6)   : 0
HE MCS 8 (256-QAM 3/4)  : 0
HE MCS 9 (256-QAM 5/6)  : 0
HE MCS 10 (1024-QAM 3/4): 0
HE MCS 11 (1024-QAM 5/6): 0
HE MCS 12 (4096-QAM 3/4): 0
HE MCS 13 (4096-QAM 5/6): 0
TX OFDMA Stats
RU_26: 0
RU_52: 0
RU_106: 0
RU_242: 0
RU_484: 0
RU_996: 0
Tx Success Unicast Data Bytes   = 0
Tx Success Multicast Data Packets = 0
Tx Success Multicast Data Bytes = 0
Tx Success Broadcast Data Packets = 0
Tx Success Broadcast Data Bytes = 0
Last Packet Error Rate (PER)    = 0
Rx Data Packets                 = 5
Rx Data Bytes                   = 729
Rx Unicast   Data Packets       = 0
Rx Unicast   Data Bytes         = 0
Rx Multicast Data Packets       = 5
Rx Multicast Data Bytes         = 729
Average Tx Rate (kbps)          = 6000
Average Rx Rate (kbps)          = 154900
Last tx rate                    = 0
Last rx rate                    = 154900
Last mgmt rx rate               = 48000
Rx MIC Errors                   = 0
Rx Decryption errors            = 0
Rx errors                       = 0
Packets Queued                  = 0
Tx failed                       = 0
Host Discard                    = 0
Tx Mgmt Packets                 = 3
Rx Mgmt Packets                 = 2
Rx mpdu count                   = 0
Rx ppdu count                   = 0
Rx retry count                  = 1
MSDU: Tx failed retry count     = 0
MSDU: Tx retry count            = 0
MSDU: Tx multiple retry count   = 0
Avg ppdu Tx rate(kbps)          = 0
Avg ppdu Rx rate(kbps)          = 0
Tx Dropped(valid for offload driver)     = 0
Rx RSSI                         = 28
Rx MGMT RSSI                    = 29
Excessive retries per AC:
 Best effort                    = 0
 Background                     = 0
 Video                          = 0
 Voice                          = 0
Ack RSSI chain 1                = 0
Ack RSSI chain 2                = 0
Ack RSSI chain 3                = 0
Ack RSSI chain 4                = 0
Band Width                      = 20
stbc                            tx(1) rx(1)
chainmask (NSS)                 tx(4) rx(4)
Tx packets for last one second  = 0
Tx bytes for last one second    = 0
Rx packets for last one second  = 0
Rx bytes for last one second    = 0
TWT event type                  = 0
TWT flow ID                     = 0
Broadcast TWT                   = 0
TWT Trigger                     = 0
TWT Announcement                = 0
TWT Dialog ID                   = 0
TWT Wake duration (us)          = 0
TWT Wake interval (us)          = 0
TWT SP offset (us)              = 0
Arithmetic exception

  1. tx相关

    root@OpenWrt:/# wifistats wifi0 9
HTT_TX_PDEV_RATE_STATS_TLV:
mac_id = 0
tx_ldpc = 6528
ac_mu_mimo_tx_ldpc = 0
ax_mu_mimo_tx_ldpc = 0
ofdma_tx_ldpc = 0
rts_cnt = 281
rts_success = 279
ack_rssi = 96
tx_11ax_su_ext = 0
Legacy CCK Rates: 1 Mbps: 0, 2 Mbps: 0, 5.5 Mbps: 0, 11 Mbps: 0
Legacy OFDM Rates: 6 Mbps: 15706624, 9 Mbps: 0, 12 Mbps: 0, 18 Mbps: 0
                   24 Mbps: 0, 36 Mbps: 0, 48 Mbps: 287824, 54 Mbps: 0
tx_mcs =  0:0, 1:0, 2:0, 3:0, 4:0, 5:0, 6:110, 7:290, 8:2494, 9:3111, 10:523, 11:0, 12:0, 13:0,
ac_mu_mimo_tx_mcs =  0:0, 1:0, 2:0, 3:0, 4:0, 5:0, 6:0, 7:0, 8:0, 9:0, 10:0, 11:0, 12:0, 13:0,
ax_mu_mimo_tx_mcs =  0:0, 1:0, 2:0, 3:0, 4:0, 5:0, 6:0, 7:0, 8:0, 9:0, 10:0, 11:0, 12:0, 13:0,
ofdma_tx_mcs =  0:0, 1:0, 2:0, 3:0, 4:0, 5:0, 6:0, 7:0, 8:0, 9:0, 10:0, 11:0, 12:0, 13:0,
tx_nss =  1:0, 2:6528, 3:0, 4:0, 5:0, 6:0, 7:0, 8:0,
ac_mu_mimo_tx_nss =  1:0, 2:0, 3:0, 4:0, 5:0, 6:0, 7:0, 8:0,
ax_mu_mimo_tx_nss =  1:0, 2:0, 3:0, 4:0, 5:0, 6:0, 7:0, 8:0,
ofdma_tx_nss =  1:0, 2:0, 3:0, 4:0, 5:0, 6:0, 7:0, 8:0,
tx_bw =  0:6528, 1:0, 2:0, 3:0,
ac_mu_mimo_tx_bw =  0:0, 1:0, 2:0, 3:0,
ax_mu_mimo_tx_bw =  0:0, 1:0, 2:0, 3:0,
ofdma_tx_bw =  0:0, 1:0, 2:0, 3:0,
tx_stbc =  0:0, 1:0, 2:0, 3:0, 4:0, 5:0, 6:0, 7:0, 8:0, 9:0, 10:0, 11:0, 12:0, 13:0,
tx_pream =  0:15994448, 1:0, 2:0, 3:0, 4:6530, 5:0, 6:0,
HE LTF: 1x: 0, 2x: 6528, 4x: 0
tx_gi[0] =  0:0, 1:0, 2:0, 3:0, 4:0, 5:0, 6:110, 7:290, 8:2494, 9:3111, 10:523, 11:0, 12:0, 13:0,
tx_gi[1] =  0:0, 1:0, 2:0, 3:0, 4:0, 5:0, 6:0, 7:0, 8:0, 9:0, 10:0, 11:0, 12:0, 13:0,
tx_gi[2] =  0:0, 1:0, 2:0, 3:0, 4:0, 5:0, 6:0, 7:0, 8:0, 9:0, 10:0, 11:0, 12:0, 13:0,
tx_gi[3] =  0:0, 1:0, 2:0, 3:0, 4:0, 5:0, 6:0, 7:0, 8:0, 9:0, 10:0, 11:0, 12:0, 13:0,
ac_mu_mimo_tx_gi[0] =  0:0, 1:0, 2:0, 3:0, 4:0, 5:0, 6:0, 7:0, 8:0, 9:0, 10:0, 11:0,
ac_mu_mimo_tx_gi[1] =  0:0, 1:0, 2:0, 3:0, 4:0, 5:0, 6:0, 7:0, 8:0, 9:0, 10:0, 11:0,
ac_mu_mimo_tx_gi[2] =  0:0, 1:0, 2:0, 3:0, 4:0, 5:0, 6:0, 7:0, 8:0, 9:0, 10:0, 11:0,
ac_mu_mimo_tx_gi[3] =  0:0, 1:0, 2:0, 3:0, 4:0, 5:0, 6:0, 7:0, 8:0, 9:0, 10:0, 11:0,
ax_mu_mimo_tx_gi[0] =  0:0, 1:0, 2:0, 3:0, 4:0, 5:0, 6:0, 7:0, 8:0, 9:0, 10:0, 11:0, 12:0, 13:0,
ax_mu_mimo_tx_gi[1] =  0:0, 1:0, 2:0, 3:0, 4:0, 5:0, 6:0, 7:0, 8:0, 9:0, 10:0, 11:0, 12:0, 13:0,
ax_mu_mimo_tx_gi[2] =  0:0, 1:0, 2:0, 3:0, 4:0, 5:0, 6:0, 7:0, 8:0, 9:0, 10:0, 11:0, 12:0, 13:0,
ax_mu_mimo_tx_gi[3] =  0:0, 1:0, 2:0, 3:0, 4:0, 5:0, 6:0, 7:0, 8:0, 9:0, 10:0, 11:0, 12:0, 13:0,
ofdma_tx_gi[0] =  0:0, 1:0, 2:0, 3:0, 4:0, 5:0, 6:0, 7:0, 8:0, 9:0, 10:0, 11:0, 12:0, 13:0,
ofdma_tx_gi[1] =  0:0, 1:0, 2:0, 3:0, 4:0, 5:0, 6:0, 7:0, 8:0, 9:0, 10:0, 11:0, 12:0, 13:0,
ofdma_tx_gi[2] =  0:0, 1:0, 2:0, 3:0, 4:0, 5:0, 6:0, 7:0, 8:0, 9:0, 10:0, 11:0, 12:0, 13:0,
ofdma_tx_gi[3] =  0:0, 1:0, 2:0, 3:0, 4:0, 5:0, 6:0, 7:0, 8:0, 9:0, 10:0, 11:0, 12:0, 13:0,
tx_dcm =  0:0, 1:0, 2:0, 3:0, 4:0,
11ax_trigger_type =  0:0, 1:0, 2:0, 3:0, 4:0, 5:0,

  2. rx相关

    root@OpenWrt:/# wifistats wifi0 10
HTT_RX_PDEV_RATE_STATS_TLV:
mac_id = 0
nsts = 0
rx_ldpc = 4163
rts_cnt = 0
rssi_mgmt = 29
rssi_data = 27
rssi_comb = 46
rssi_in_dbm = -67
rx_mcs =  0:5, 1:0, 2:0, 3:0, 4:0, 5:0, 6:21, 7:19, 8:372, 9:2929, 10:805, 11:17,
rx_nss =  1:5, 2:4163, 3:0, 4:0, 5:0, 6:0, 7:0, 8:0,
rx_dcm =  0:0, 1:0, 2:0, 3:0, 4:0,
rx_stbc =  0:0, 1:0, 2:0, 3:0, 4:0, 5:0, 6:0, 7:0, 8:0, 9:0, 10:0, 11:0,
rx_bw =  0:15926080, 1:0, 2:0, 3:0,
rx_evm_nss_count = 1
rx_evm_pilot_count = 4
pilot_evm_dB[0] =  0:18, 1:14, 2:15, 3:17, 4:0, 5:0, 6:0, 7:0, 8:0, 9:0, 10:0, 11:0, 12:0, 13:0, 14:0, 15:0,
pilot_evm_dB[1] =  0:0, 1:0, 2:0, 3:0, 4:0, 5:0, 6:0, 7:0, 8:0, 9:0, 10:0, 11:0, 12:0, 13:0, 14:0, 15:0,
pilot_evm_dB[2] =  0:0, 1:0, 2:0, 3:0, 4:0, 5:0, 6:0, 7:0, 8:0, 9:0, 10:0, 11:0, 12:0, 13:0, 14:0, 15:0,
pilot_evm_dB[3] =  0:0, 1:0, 2:0, 3:0, 4:0, 5:0, 6:0, 7:0, 8:0, 9:0, 10:0, 11:0, 12:0, 13:0, 14:0, 15:0,
pilot_evm_dB[4] =  0:0, 1:0, 2:0, 3:0, 4:0, 5:0, 6:0, 7:0, 8:0, 9:0, 10:0, 11:0, 12:0, 13:0, 14:0, 15:0,
pilot_evm_dB[5] =  0:0, 1:0, 2:0, 3:0, 4:0, 5:0, 6:0, 7:0, 8:0, 9:0, 10:0, 11:0, 12:0, 13:0, 14:0, 15:0,
pilot_evm_dB[6] =  0:0, 1:0, 2:0, 3:0, 4:0, 5:0, 6:0, 7:0, 8:0, 9:0, 10:0, 11:0, 12:0, 13:0, 14:0, 15:0,
pilot_evm_dB[7] =  0:0, 1:0, 2:0, 3:0, 4:0, 5:0, 6:0, 7:0, 8:0, 9:0, 10:0, 11:0, 12:0, 13:0, 14:0, 15:0,
pilot_evm_dB_mean =  0:16, 1:0, 2:0, 3:0, 4:0, 5:0, 6:0, 7:0,
rssi_chain[0] =  0:45, 1:128, 2:128, 3:128,
rssi_chain[1] =  0:36, 1:128, 2:128, 3:128,
rssi_chain[2] =  0:128, 1:128, 2:128, 3:128,
rssi_chain[3] =  0:128, 1:128, 2:128, 3:128,
rssi_chain[4] =  0:128, 1:128, 2:128, 3:128,
rssi_chain[5] =  0:128, 1:128, 2:128, 3:128,
rssi_chain[6] =  0:128, 1:128, 2:128, 3:128,
rssi_chain[7] =  0:128, 1:128, 2:128, 3:128,
rx_gi[0] =  0:0, 1:0, 2:0, 3:0, 4:0, 5:0, 6:21, 7:19, 8:372, 9:2929, 10:805, 11:17,
rx_gi[1] =  0:0, 1:0, 2:0, 3:0, 4:0, 5:0, 6:0, 7:0, 8:0, 9:0, 10:0, 11:0,
rx_gi[2] =  0:0, 1:0, 2:0, 3:0, 4:0, 5:0, 6:0, 7:0, 8:0, 9:0, 10:0, 11:0,
rx_gi[3] =  0:5, 1:0, 2:0, 3:0, 4:0, 5:0, 6:0, 7:0, 8:0, 9:0, 10:0, 11:0,
rx_pream =  0:15921912, 1:0, 2:0, 3:0, 4:4168, 5:0, 6:0,
rx_11ax_su_ext = 0
rx_11ac_mumimo = 0
rx_11ax_mumimo = 0
rx_11ax_ofdma = 0
txbf = 4163
rx_su_ndpa = 3649
rx_11ax_su_txbf_mcs =  0:0, 1:0, 2:0, 3:0, 4:0, 5:0, 6:21, 7:19, 8:372, 9:2929, 10:805, 11:17,
rx_mu_ndpa = 53
rx_11ax_mu_txbf_mcs =  0:0, 1:0, 2:0, 3:0, 4:0, 5:0, 6:0, 7:0, 8:0, 9:0, 10:0, 11:0,
rx_br_poll = 0
rx_legacy_cck_rate =  0:0, 1:0, 2:0, 3:0,
rx_legacy_ofdm_rate =  0:15921584, 1:10, 2:14, 3:8, 4:217, 5:11, 6:4, 7:64,
rx_active_dur_us_low = 544843
rx_active_dur_us_high = 0
rx_11ax_ul_ofdma = 5
ul_ofdma_rx_mcs =  0:0, 1:0, 2:0, 3:0, 4:0, 5:0, 6:0, 7:0, 8:0, 9:0, 10:0, 11:0,
ul_ofdma_rx_gi[0] =  0:0, 1:0, 2:0, 3:0, 4:0, 5:0, 6:0, 7:0, 8:0, 9:0, 10:0, 11:0,
ul_ofdma_rx_gi[1] =  0:0, 1:0, 2:0, 3:0, 4:0, 5:0, 6:0, 7:0, 8:0, 9:0, 10:0, 11:0,
ul_ofdma_rx_gi[2] =  0:0, 1:0, 2:0, 3:0, 4:0, 5:0, 6:0, 7:0, 8:0, 9:0, 10:0, 11:0,
ul_ofdma_rx_gi[3] =  0:0, 1:0, 2:0, 3:0, 4:0, 5:0, 6:0, 7:0, 8:0, 9:0, 10:0, 11:0,
ul_ofdma_rx_nss =  1:0, 2:0, 3:0, 4:0, 5:0, 6:0, 7:0, 8:0,
ul_ofdma_rx_bw =  0:0, 1:0, 2:0, 3:0,
ul_ofdma_rx_stbc = 0
ul_ofdma_rx_ldpc = 0
rx_ulofdma_non_data_ppdu =  0:0, 1:0, 2:0, 3:0, 4:0, 5:0, 6:0, 7:0,
rx_ulofdma_data_ppdu =  0:0, 1:0, 2:0, 3:0, 4:0, 5:0, 6:0, 7:0,
rx_ulofdma_mpdu_ok =  0:0, 1:0, 2:0, 3:0, 4:0, 5:0, 6:0, 7:0,
rx_ulofdma_mpdu_fail =  0:0, 1:0, 2:0, 3:0, 4:0, 5:0, 6:0, 7:0,
rx_ulmumimo_non_data_ppdu =  0:0, 1:0, 2:0, 3:0, 4:0, 5:0, 6:0, 7:0,
rx_ulmumimo_data_ppdu =  0:0, 1:0, 2:0, 3:0, 4:0, 5:0, 6:0, 7:0,
rx_ulmumimo_mpdu_ok =  0:0, 1:0, 2:0, 3:0, 4:0, 5:0, 6:0, 7:0,
rx_ulmumimo_mpdu_fail =  0:0, 1:0, 2:0, 3:0, 4:0, 5:0, 6:0, 7:0,
rx_ul_fd_rssi: nss[0] =  0:0, 1:0, 2:0, 3:0, 4:0, 5:0, 6:0, 7:0,
rx_ul_fd_rssi: nss[1] =  0:0, 1:0, 2:0, 3:0, 4:0, 5:0, 6:0, 7:0,
rx_ul_fd_rssi: nss[2] =  0:0, 1:0, 2:0, 3:0, 4:0, 5:0, 6:0, 7:0,
rx_ul_fd_rssi: nss[3] =  0:0, 1:0, 2:0, 3:0, 4:0, 5:0, 6:0, 7:0,
rx_ul_fd_rssi: nss[4] =  0:0, 1:0, 2:0, 3:0, 4:0, 5:0, 6:0, 7:0,
rx_ul_fd_rssi: nss[5] =  0:0, 1:0, 2:0, 3:0, 4:0, 5:0, 6:0, 7:0,
rx_ul_fd_rssi: nss[6] =  0:0, 1:0, 2:0, 3:0, 4:0, 5:0, 6:0, 7:0,
rx_ul_fd_rssi: nss[7] =  0:0, 1:0, 2:0, 3:0, 4:0, 5:0, 6:0, 7:0,
per_chain_rssi_pkt_type = 0
rx_per_chain_rssi_in_dbm[0] =  0:-50, 1:0, 2:0, 3:0,
rx_per_chain_rssi_in_dbm[1] =  0:-58, 1:0, 2:0, 3:0,
rx_per_chain_rssi_in_dbm[2] =  0:-128, 1:-128, 2:-128, 3:-128,
rx_per_chain_rssi_in_dbm[3] =  0:-128, 1:-128, 2:-128, 3:-128,
rx_per_chain_rssi_in_dbm[4] =  0:-128, 1:-128, 2:-128, 3:-128,
rx_per_chain_rssi_in_dbm[5] =  0:-128, 1:-128, 2:-128, 3:-128,
rx_per_chain_rssi_in_dbm[6] =  0:-128, 1:-128, 2:-128, 3:-128,
rx_per_chain_rssi_in_dbm[7] =  0:-128, 1:-128, 2:-128, 3:-128,
rx_11ax_dl_ofdma_mcs =  0:0, 1:0, 2:0, 3:0, 4:0, 5:0, 6:0, 7:0, 8:0, 9:0, 10:0, 11:0,
rx_11ax_dl_ofdma_ru =  0:0, 1:0, 2:0, 3:0, 4:0, 5:0,
rx_ulofdma_non_data_nusers =  0:0, 1:0, 2:0, 3:0, 4:0, 5:0, 6:0, 7:0,
rx_ulofdma_data_nusers =  0:0, 1:0, 2:0, 3:0, 4:0, 5:0, 6:0, 7:0,

  3. athstats -i wifi2

  4. 如何修改wireless默认文件

    # package/feeds/qca/qca-wifi/files/qcawificfg80211.sh
# 修改内容如下:

		cat <<EOF
config wifi-device  wifi$devidx
	option type	qcawificfg80211
	option channel	auto
	option macaddr	$(cat /sys/class/net/${dev}/address)
	option hwmode	11${mode_11}
	# REMOVE THIS LINE TO ENABLE WIFI:
	option disabled 0

config wifi-iface
	option device	wifi$devidx
	option network	lan
	option mode	ap
	option ssid	wim
	option encryption none

EOF

  5. 如何修改network默認文件

    下面的方法不生效

    #package/base-files/files/etc/config/network
config interface 'loopback'
	option ifname 'lo'
	option proto 'static'
	option ipaddr '127.0.0.1'
	option netmask '255.0.0.0'

config globals 'globals'
	option ula_prefix 'fd01:7cca:90c1::/48'

config switch
	option name 'switch0'

config interface 'lan'
	option ifname 'eth0 eth1'
	option force_link '1'
	option type 'bridge'
	option proto 'static'
	option ipaddr '192.168.1.1'
	option netmask '255.255.255.0'
	option ip6assign '60'
	option multicast_querier '0'
	option igmp_snooping '0'
	#option ieee1905managed '1'

    使用下面的文件

    # target/linux/ipq/base-files/etc/uci-defaults/network
ap-cp01-c1|\
ap-cp01-c2|\
ap-cp01-c3|\
ap-cp01-c4|\
db-cp01)
	ucidef_add_switch "switch0"
	ucidef_set_interfaces_lan_wan "eth0 eth2 eth3 eth4" "eth1"
	;;
ap-cp02-c1|\
ap-cp03-c1|\
db-cp02 |\
ap-mp02.1 |\
db-mp02.1 |\
ap-mp03.3 |\
ap-mp03.3-c2 |\
ap-mp03.3-c3 |\
ap-mp03.4-c1 |\
ap-mp03.4-c2 |\
ap-mp03.5-c1 |\
ap-mp03.5-c2 |\
ap-mp03.6-c1 |\
ap-mp03.6-c2 |\
db-mp03.3 |\
db-mp03.3-c2 |\
tb-mp04)
	ucidef_add_switch "switch0"
	ucidef_set_interfaces_lan_wan "eth0" "eth1"
	;;
