高通QSDK新增分区
修改文件
apss_proc/out/proprietary/QSDK-Base/meta-tools/ipq6018/flash_partition/norplusnand-partition.xml

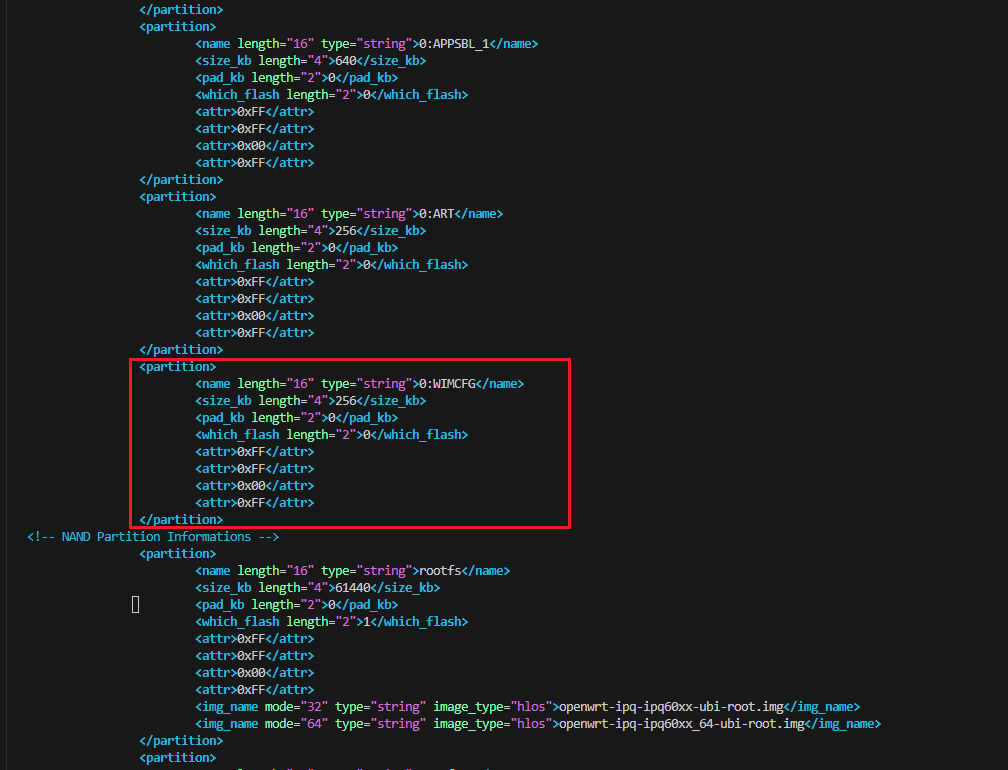

修改下：
修改完后执行打包，第一次请使用tftp下载
说明：
文件的全部内容如下：
<?xml version="1.0" encoding="UTF-8"?>
<!--
===========================================================================
Copyright (c) 2017, 2019 Qualcomm Technologies, Inc.
All Rights Reserved.
Confidential and Proprietary - Qualcomm Technologies, Inc.
===========================================================================
-->
<norplusnandboot>
<magic_numbers>
<usr_part_magic1>0xAA7D1B9A</usr_part_magic1>
<usr_part_magic2>0x1F7D48BC</usr_part_magic2>
</magic_numbers>
<partition_version length="4">0x4</partition_version>
<partitions>
<!-- NOR Partition Informations -->
<partition>
<name length="16" type="string">0:SBL1</name>
<size_kb length="4">768</size_kb>
<pad_kb length="2">0</pad_kb>
<which_flash length="2">0</which_flash>
<attr>0xFF</attr>
<attr>0xFF</attr>
<attr>0x00</attr>
<attr>0xFF</attr>
<img_name type="string">xbl.elf</img_name>
</partition>
<partition>
<name length="16" type="string">0:MIBIB</name>
<size_kb length="4">64</size_kb>
<pad_kb length="2">0</pad_kb>
<which_flash length="2">0</which_flash>
<attr>0xFF</attr>
<attr>64</attr>
<attr>16</attr>
<attr>0xFF</attr>
<img_name type="string">norplusnand-system-partition-ipq6018.bin</img_name>
</partition>
<partition>
<name length="16" type="string">0:BOOTCONFIG</name>
<size_kb length="4">128</size_kb>
<pad_kb length="2">0</pad_kb>
<which_flash length="2">0</which_flash>
<attr>0xFF</attr>
<attr>64</attr>
<attr>16</attr>
<attr>0xFF</attr>
<img_name type="string">bootconfig.bin</img_name>
</partition>
<partition>
<name length="16" type="string">0:BOOTCONFIG1</name>
<size_kb length="4">128</size_kb>
<pad_kb length="2">0</pad_kb>
<which_flash length="2">0</which_flash>
<attr>0xFF</attr>
<attr>64</attr>
<attr>16</attr>
<attr>0xFF</attr>
<img_name type="string">bootconfig.bin</img_name>
</partition>
<partition>
<name length="16" type="string">0:QSEE</name>
<size_kb length="4">1664</size_kb>
<pad_kb length="2">0</pad_kb>
<which_flash length="2">0</which_flash>
<attr>0xFF</attr>
<attr>0xFF</attr>
<attr>0x00</attr>
<attr>0xFF</attr>
<img_name type="string">tz.mbn</img_name>
</partition>
<partition>
<name length="16" type="string">0:QSEE_1</name>
<size_kb length="4">1664</size_kb>
<pad_kb length="2">0</pad_kb>
<which_flash length="2">0</which_flash>
<attr>0xFF</attr>
<attr>0xFF</attr>
<attr>0x00</attr>
<attr>0xFF</attr>
</partition>
<partition>
<name length="16" type="string">0:DEVCFG</name>
<size_kb length="4">64</size_kb>
<pad_kb length="2">0</pad_kb>
<which_flash length="2">0</which_flash>
<attr>0xFF</attr>
<attr>0xFF</attr>
<attr>0x00</attr>
<attr>0xFF</attr>
<img_name type="string">devcfg.mbn</img_name>
</partition>
<partition>
<name length="16" type="string">0:DEVCFG_1</name>
<size_kb length="4">64</size_kb>
<pad_kb length="2">0</pad_kb>
<which_flash length="2">0</which_flash>
<attr>0xFF</attr>
<attr>0xFF</attr>
<attr>0x00</attr>
<attr>0xFF</attr>
</partition>
<partition>
<name length="16" type="string">0:RPM</name>
<size_kb length="4">256</size_kb>
<pad_kb length="2">0</pad_kb>
<which_flash length="2">0</which_flash>
<attr>0xFF</attr>
<attr>0xFF</attr>
<attr>0x00</attr>
<attr>0xFF</attr>
<img_name type="string">rpm.mbn</img_name>
</partition>
<partition>
<name length="16" type="string">0:RPM_1</name>
<size_kb length="4">256</size_kb>
<pad_kb length="2">0</pad_kb>
<which_flash length="2">0</which_flash>
<attr>0xFF</attr>
<attr>0xFF</attr>
<attr>0x00</attr>
<attr>0xFF</attr>
</partition>
<partition>
<name length="16" type="string">0:CDT</name>
<size_kb length="4">64</size_kb>
<pad_kb length="2">0</pad_kb>
<which_flash length="2">0</which_flash>
<attr>0xFF</attr>
<attr>0xFF</attr>
<attr>0x00</attr>
<attr>0xFF</attr>
<img_name type="string">cdt.bin</img_name>
</partition>
<partition>
<name length="16" type="string">0:CDT_1</name>
<size_kb length="4">64</size_kb>
<pad_kb length="2">0</pad_kb>
<which_flash length="2">0</which_flash>
<attr>0xFF</attr>
<attr>0xFF</attr>
<attr>0x00</attr>
<attr>0xFF</attr>
</partition>
<partition>
<name length="16" type="string">0:APPSBLENV</name>
<size_kb length="4">64</size_kb>
<pad_kb length="2">0</pad_kb>
<which_flash length="2">0</which_flash>
<attr>0xFF</attr>
<attr>0xFF</attr>
<attr>0x00</attr>
<attr>0xFF</attr>
</partition>
<partition>
<name length="16" type="string">0:APPSBL</name>
<size_kb length="4">640</size_kb>
<pad_kb length="2">0</pad_kb>
<which_flash length="2">0</which_flash>
<attr>0xFF</attr>
<attr>0xFF</attr>
<attr>0x00</attr>
<attr>0xFF</attr>
<img_name type="string">openwrt-ipq6018-u-boot.mbn</img_name>
</partition>
<partition>
<name length="16" type="string">0:APPSBL_1</name>
<size_kb length="4">640</size_kb>
<pad_kb length="2">0</pad_kb>
<which_flash length="2">0</which_flash>
<attr>0xFF</attr>
<attr>0xFF</attr>
<attr>0x00</attr>
<attr>0xFF</attr>
</partition>
<partition>
<name length="16" type="string">0:ART</name>
<size_kb length="4">256</size_kb>
<pad_kb length="2">0</pad_kb>
<which_flash length="2">0</which_flash>
<attr>0xFF</attr>
<attr>0xFF</attr>
<attr>0x00</attr>
<attr>0xFF</attr>
</partition>
<partition>
<name length="16" type="string">0:WIMCFG</name>
<size_kb length="4">256</size_kb>
<pad_kb length="2">0</pad_kb>
<which_flash length="2">0</which_flash>
<attr>0xFF</attr>
<attr>0xFF</attr>
<attr>0x00</attr>
<attr>0xFF</attr>
</partition>
<!-- NAND Partition Informations -->
<partition>
<name length="16" type="string">rootfs</name>
<size_kb length="4">61440</size_kb>
<pad_kb length="2">0</pad_kb>
<which_flash length="2">1</which_flash>
<attr>0xFF</attr>
<attr>0xFF</attr>
<attr>0x00</attr>
<attr>0xFF</attr>
<img_name mode="32" type="string" image_type="hlos">openwrt-ipq-ipq60xx-ubi-root.img</img_name>
<img_name mode="64" type="string" image_type="hlos">openwrt-ipq-ipq60xx_64-ubi-root.img</img_name>
</partition>
<partition>
<name length="16" type="string">rootfs_1</name>
<size_kb length="4">61440</size_kb>
<pad_kb length="2">0</pad_kb>
<which_flash length="2">1</which_flash>
<attr>0xFF</attr>
<attr>0xFF</attr>
<attr>0x00</attr>
<attr>0xFF</attr>
</partition>
</partitions>
</norplusnandboot>
