驱动层scan过程分析
当应用层发送NL80211_CMD_TRIGGER_SCAN nl消息到内核时候，内核收到消息后，会调用
qca/src/linux-4.4/net/wireless/nl80211.c文件下的nl80211_trigger_scan函数，该ops注册的地方参见[cfg80211层到mac80211层传递过程分析]
static const struct genl_ops nl80211_ops[] = {
{
.cmd = NL80211_CMD_TRIGGER_SCAN, // 扫描
.doit = nl80211_trigger_scan,
.policy = nl80211_policy,
.flags = GENL_ADMIN_PERM,
.internal_flags = NL80211_FLAG_NEED_WDEV_UP |
NL80211_FLAG_NEED_RTNL,
},
// 下面省略了很多
};
nl80211_trigger_scan
该函数将用户态的扫描请求参数封装到struct cfg80211_scan_request对象中，然后调用mac80211子模块提供的扫描接口发起扫描。
static int nl80211_trigger_scan(struct sk_buff *skb, struct genl_info *info)
{
struct cfg80211_registered_device *rdev = info->user_ptr[0];
struct net_device *dev = info->user_ptr[1];
struct cfg80211_scan_request *request;
struct cfg80211_ssid *ssid;
struct ieee80211_channel *channel;
struct nlattr *attr;
struct wiphy *wiphy;
int err, tmp, n_ssids = 0, n_channels, i;
enum ieee80211_band band;
size_t ie_len;
if (!is_valid_ie_attr(info->attrs[NL80211_ATTR_IE]))
return -EINVAL;
wiphy = &rdev->wiphy;
// 设备必须提供扫描回调，由mac80211模块或者设备驱动提供
if (!rdev->ops->scan)
return -EOPNOTSUPP;
// 不能重复发起扫描，rdev->scan_req会保存上一次的扫描请求(扫描结束后会清空)
if (rdev->scan_req)
return -EBUSY;
// 计算要扫描的子带数目。如果用户态指定了要扫描的子带，那么以用户态为准，否则
// 就是设备支持的全部子带，即全频段扫描
if (info->attrs[NL80211_ATTR_SCAN_FREQUENCIES]) {
n_channels = validate_scan_freqs(info->attrs[NL80211_ATTR_SCAN_FREQUENCIES]);
if (!n_channels)
return -EINVAL;
} else {
n_channels = 0;
for (band = 0; band < IEEE80211_NUM_BANDS; band++)
if (wiphy->bands[band])
n_channels += wiphy->bands[band]->n_channels;
}
//遍历NL80211_ATTR_SCAN_SSIDS属性
// 计算要扫描ssid个数，通过wiphy->max_scan_ssids，内核态可以限制用户态一次主动
// 扫描可以扫描的SSID个数
if (info->attrs[NL80211_ATTR_SCAN_SSIDS])
nla_for_each_nested(attr, info->attrs[NL80211_ATTR_SCAN_SSIDS], tmp)
n_ssids++;
if (n_ssids > wiphy->max_scan_ssids)
return -EINVAL;
// 用户态指定的IE信息，类似的wiphy->max_scan_ie_len可以限定IE长度
if (info->attrs[NL80211_ATTR_IE])
ie_len = nla_len(info->attrs[NL80211_ATTR_IE]);
else
ie_len = 0;
if (ie_len > wiphy->max_scan_ie_len)
return -EINVAL;
// 分配一块内存保存所有的扫描请求参数
request = kzalloc(sizeof(*request) + sizeof(*ssid) * n_ssids + sizeof(channel) * n_channels
+ ie_len, GFP_KERNEL);
if (!request)
return -ENOMEM;
// 让扫描请求结构中的ssid和ie指向正确的内存位置，channel默认已经指向正确
if (n_ssids)
request->ssids = (void *)&request->channels[n_channels];
request->n_ssids = n_ssids;
if (ie_len) {
if (request->ssids)
request->ie = (void *)(request->ssids + n_ssids);
else
request->ie = (void *)(request->channels + n_channels);
}
// 得到最终要扫描的channel，这些channel必须是设备支持的，并且没有被设置disable标记
i = 0;
if (info->attrs[NL80211_ATTR_SCAN_FREQUENCIES]) {
/* user specified, bail out if channel not found */
nla_for_each_nested(attr, info->attrs[NL80211_ATTR_SCAN_FREQUENCIES], tmp) {
struct ieee80211_channel *chan;
chan = ieee80211_get_channel(wiphy, nla_get_u32(attr));
if (!chan) {
err = -EINVAL;
goto out_free;
}
/* ignore disabled channels */
if (chan->flags & IEEE80211_CHAN_DISABLED)
continue;
request->channels[i] = chan;
i++;
}
} else {
/* all channels */
for (band = 0; band < IEEE80211_NUM_BANDS; band++) {
int j;
if (!wiphy->bands[band])
continue;
for (j = 0; j < wiphy->bands[band]->n_channels; j++) {
struct ieee80211_channel *chan;
chan = &wiphy->bands[band]->channels[j];
if (chan->flags & IEEE80211_CHAN_DISABLED)
continue;
request->channels[i] = chan;
i++;
}
}
}
// 没有能够扫描的channel
if (!i) {
err = -EINVAL;
goto out_free;
}
// 记录最好要扫描的channel个数
request->n_channels = i;
// 保存ssid信息到扫描请求中
i = 0;
if (info->attrs[NL80211_ATTR_SCAN_SSIDS]) {
nla_for_each_nested(attr, info->attrs[NL80211_ATTR_SCAN_SSIDS], tmp) {
request->ssids[i].ssid_len = nla_len(attr);
if (request->ssids[i].ssid_len > IEEE80211_MAX_SSID_LEN) {
err = -EINVAL;
goto out_free;
}
memcpy(request->ssids[i].ssid, nla_data(attr), nla_len(attr));
i++;
}
}
// 保存IE信息到扫描请求中
if (info->attrs[NL80211_ATTR_IE]) {
request->ie_len = nla_len(info->attrs[NL80211_ATTR_IE]);
memcpy((void *)request->ie,
nla_data(info->attrs[NL80211_ATTR_IE]),
request->ie_len);
}
request->dev = dev;
request->wiphy = &rdev->wiphy;
// 保存扫描请求，调用rdev的扫描回调，mac80211提供的是 ieee80211_scan()
rdev->scan_req = request;
// 重点这里需要mac80211层提供，下面重点分析
err = rdev_scan(rdev, request);
{
err = rdev->ops->scan(&rdev->wiphy, dev, request);// -----------------------------------------------调用mac80211 中的函数 wlan_cfg80211_scan_start
}
//扫描命令下发成功后，通过 nl80211_send_scan_start 通知上层已经成功下发扫描命令。
if (!err) {
nl80211_send_scan_start(rdev, dev); // 下面会分析
dev_hold(dev);
}
}
/* dev_hold 和 dev_put, 可以用来增加和递减net_device 的使用计数的.
linux可以使用dev_get_by_name函数取得设备指针，但是使用是需要注意，使用过dev_get_by_name函数后一定要使用 dev_put(pDev)函数释放设备引用，不然可能导致GET的设备无法正常卸载。
通知上层开始扫描的nl80211_send_scan_start函数分析
void nl80211_send_scan_start(struct cfg80211_registered_device *rdev,
struct wireless_dev *wdev)
{
struct sk_buff *msg;
msg = nlmsg_new(NLMSG_DEFAULT_SIZE, GFP_KERNEL);
if (!msg)
return;
if (nl80211_send_scan_msg(msg, rdev, wdev, 0, 0, 0,
NL80211_CMD_TRIGGER_SCAN) < 0) {
nlmsg_free(msg);
return;
}
//通知应用层发送扫描命令的结果
genlmsg_multicast_netns(&nl80211_fam, wiphy_net(&rdev->wiphy), msg, 0,
NL80211_MCGRP_SCAN, GFP_KERNEL);
}
**总结：**上述过程精简过程如下
//nl80211_trigger_scan()关键分析
static int nl80211_trigger_scan(struct sk_buff *skb, struct genl_info *info)
{
struct cfg80211_registered_device *rdev = info->user_ptr[0];
struct wireless_dev *wdev = info->user_ptr[1];
struct wiphy *wiphy;
wiphy = &rdev->wiphy;
//调用mac80211注册的cfg80211_ops对应的函数.scan
rdev->scan_req = request;
err = rdev_scan(rdev, request);
---->ret = rdev->ops->scan(&rdev->wiphy, request); ----对应wlan_cfg80211_scan_start函数
//构造netlink消息，回复给应用层
nl80211_send_scan_start(rdev, wdev);
---->msg = nlmsg_new(NLMSG_DEFAULT_SIZE, GFP_KERNEL);
---->nl80211_prep_scan_msg(msg, rdev, wdev, 0, 0, 0,NL80211_CMD_TRIGGER_SCAN)
-------->nl80211hdr_put(msg, portid, seq, flags, cmd);
-------->nla_put_u32(msg, NL80211_ATTR_WIPHY, rdev->wiphy_idx)
-------->nl80211_add_scan_req(msg, rdev);
-------->genlmsg_end(msg, hdr);
---->genlmsg_multicast_netns(&nl80211_fam, wiphy_net(&rdev->wiphy), msg, 0,
NL80211_MCGRP_SCAN, GFP_KERNEL);
return err;
}
下面分析wlan_cfg80211_scan_start函数
wlan_cfg80211_scan_start
上述代码提到的rdev->ops->scan的值为wlan_cfg80211_scan_start，是mac80211向cfg80211注册的cfg80211_ops 里面的函数
static struct cfg80211_ops wlan_cfg80211_ops = {
.add_virtual_intf = wlan_cfg80211_add_virtual_intf,
.del_virtual_intf = wlan_cfg80211_del_virtual_intf,
#if (LINUX_VERSION_CODE < KERNEL_VERSION(3, 4, 0))
.set_beacon = NULL,
#else
.start_ap = wlan_cfg80211_start_ap,
.change_beacon = wlan_cfg80211_change_beacon,
.stop_ap = wlan_cfg80211_stop_ap,
#endif
.change_bss = wlan_cfg80211_change_bss,
.add_key = wlan_cfg80211_add_key,
.get_key = wlan_cfg80211_get_key,
.del_key = wlan_cfg80211_del_key,
.set_default_key = wlan_cfg80211_set_default_key,
.scan = wlan_cfg80211_scan_start, // 这就是上面提到的rdev->ops->scan
#if (LINUX_VERSION_CODE >= KERNEL_VERSION(4, 5, 0))
.abort_scan = wlan_cfg80211_scan_abort,
#endif
.connect = wlan_cfg80211_connect,
.disconnect = wlan_cfg80211_disconnect,
// 这里省略了很多
};
注册的地方
wlan_cfg80211_ops注册//注册 ic_cfg80211_radio_attach 地方 int ol_ath_pdev_attach(struct ol_ath_softc_net80211 *scn, IEEE80211_REG_PARAMETERS *ieee80211_conf_parm, uint8_t phy_id) { #if UMAC_SUPPORT_CFG80211 ic->ic_cfg80211_radio_attach = ieee80211_cfg80211_radio_attach; #endif } //调用ic_cfg80211_radio_attach地方 int __ol_ath_attach(void *hif_hdl, struct ol_attach_t *ol_cfg, osdev_t osdev, qdf_device_t qdf_dev) { #if UMAC_SUPPORT_CFG80211 if (ic->ic_cfg80211_config) { ic->ic_cfg80211_radio_attach(osdev->device, pdev_netdev, ic); } #endif } // ic_cfg80211_radio_attach函数原型如下：注册 wlan_cfg80211_ops int ieee80211_cfg80211_radio_attach(struct device *dev, struct net_device *net_dev, struct ieee80211com *ic) { struct wiphy *wiphy = NULL; wiphy = wlan_cfg80211_wiphy_alloc(&wlan_cfg80211_ops, sizeof(struct cfg80211_context)); }
下面分析wlan_cfg80211_scan_start函数
wlan_cfg80211_scan_start
int wlan_cfg80211_scan_start(struct wiphy *wiphy,
struct cfg80211_scan_request *request)
{
//扫描参数 params
status = wlan_cfg80211_scan(vdev, request, ¶ms);
}
wlan_cfg80211_scan
int wlan_cfg80211_scan(struct wlan_objmgr_vdev *vdev, struct cfg80211_scan_request *request, struct scan_params *params) { /* 省略扫描参数填充部分 */ qdf_status = wlan_schedule_scan_start_request(pdev, request, params->source, req); }
wlan_schedule_scan_start_request
/*扫描队列中的请求扫描数量必须小于8*/ wlan_schedule_scan_start_request(struct wlan_objmgr_pdev *pdev, struct cfg80211_scan_request *req, uint8_t source, struct scan_start_request *scan_start_req) { if (qdf_list_size(&osif_scan->scan_req_q) < WLAN_MAX_SCAN_COUNT) { status = ucfg_scan_start(scan_start_req); }
ucfg_scan_start
status = ucfg_scan_start(scan_start_req);
{
static inline QDF_STATUS ucfg_scan_start(struct scan_start_request *req)
{
return wlan_scan_start(req); // 下面分析wlan_scan_start
}
}
wlan_scan_start
QDF_STATUS wlan_scan_start(struct scan_start_request *req)
{
struct scheduler_msg msg = {0};
msg.bodyptr = req;
msg.callback = scm_scan_start_req;// 消息的回调函数
msg.flush_callback = scm_scan_start_flush_callback;
status = scheduler_post_message(QDF_MODULE_ID_OS_IF,
QDF_MODULE_ID_SCAN,
QDF_MODULE_ID_OS_IF, &msg);
}

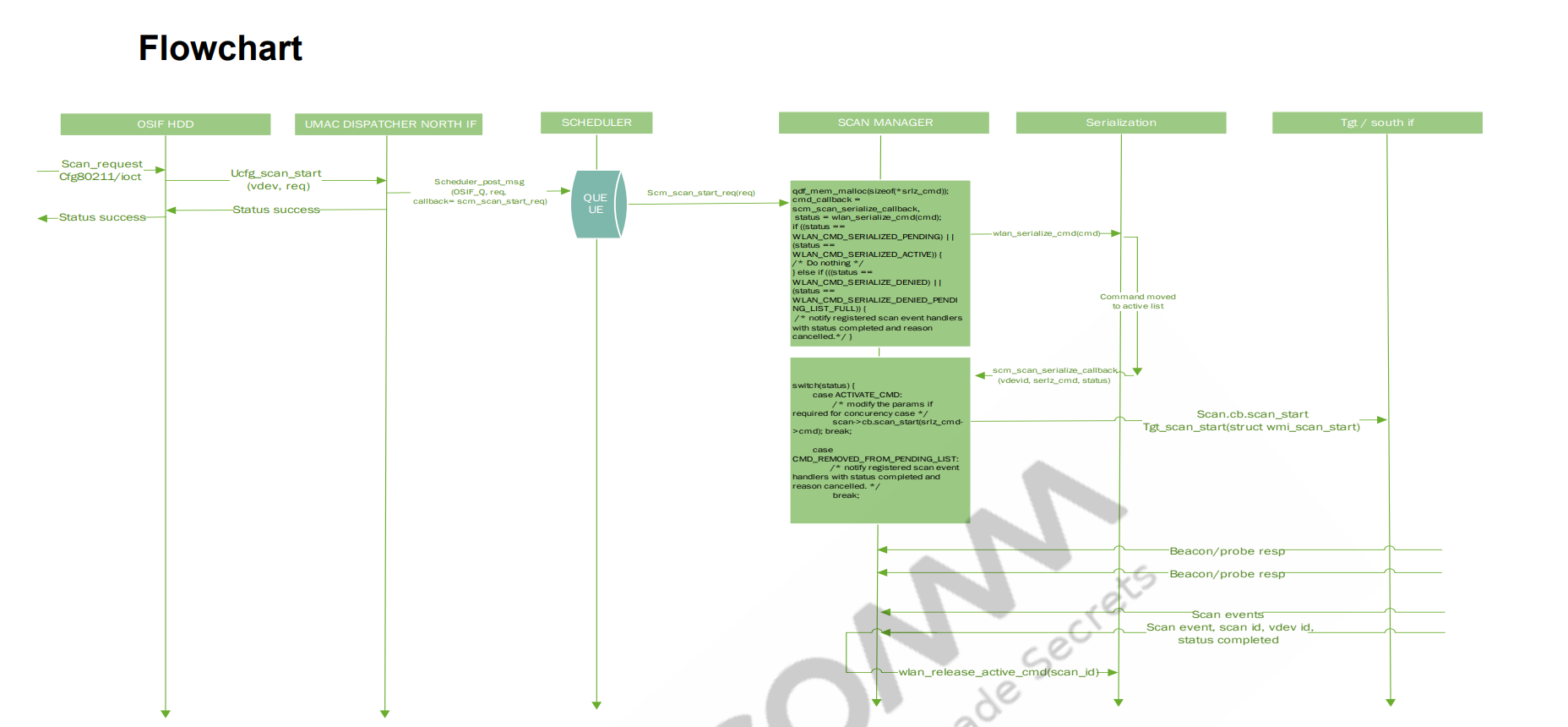

调度器调度扫描，调用回调函数scm_scan_start_req
/* 在UMAC DISPATCHER 层下发扫描请求后SCHEDULER MANAGER层提供的接口会根据优先级处理扫描队列中的msg，在SCHEDULER MANAGER层初始化的时候scheduler_init会根据QDF_MODULE_ID注册对应的scheduler_msg_process_fn_t回调函数 */ QDF_STATUS scheduler_post_msg_by_priority(uint32_t qid, struct scheduler_msg *msg, bool is_high_priority) { /* message qid to qidx mapping */ qidx = sched_ctx->queue_ctx.scheduler_msg_qid_to_qidx[que_id]; /* scheduler_register_module(QDF_MODULE_ID qid, scheduler_msg_process_fn_t callback) 判断qdi之前注册的回调函数是否存在 */ if (!sched_ctx->queue_ctx.scheduler_msg_process_fn[qidx]) { QDF_DEBUG_PANIC("callback not registered for qid[%d]", que_id); return QDF_STATUS_E_FAILURE; } target_mq = &(sched_ctx->queue_ctx.sch_msg_q[qidx]); //调用的地方scm_scan_start_req queue_msg = scheduler_core_msg_dup(msg); }
scm_scan_start_req
scm_scan_start_req(struct scheduler_msg *msg) { cmd.cmd_type = WLAN_SER_CMD_SCAN; cmd.cmd_id = req->scan_req.scan_id; cmd.cmd_cb = scm_scan_serialize_callback; //这里很重要 下面会分析 cmd.umac_cmd = req; cmd.source = WLAN_UMAC_COMP_SCAN; ser_cmd_status = wlan_serialization_request(&cmd);// 执行命令 { serialization_status = wlan_serialization_enqueue_cmd(cmd, SER_REQUEST); } }
scm_scan_serialize_callback
/* 在Serialization层对下发CMD做序列化处理，将相应的command移动到active list而SCAN MANAGER层通过状态机调用lmac层提供的接口发送scan给FW */ scm_scan_serialize_callback(struct wlan_serialization_command *cmd, enum wlan_serialization_cb_reason reason) { switch (reason) { case WLAN_SER_CB_ACTIVATE_CMD: /* command moved to active list * modify the params if required for concurency case. */ /* call the WMI/LMAC_IF API to send the scan to FW */ status = scm_activate_scan_request(req); { status = tgt_scan_start(req); } break; }
tgt_scan_start
//Lmac层挂接了器件层驱动的相关方法，这一层的操作对象是psoc的相关操作 tgt_scan_start(struct scan_start_request *req) { //这里会得到scan_ops scan_ops = wlan_psoc_get_scan_txops(psoc); { struct wlan_lmac_if_tx_ops *tx_ops; tx_ops = wlan_psoc_get_lmac_if_txops(psoc); return &tx_ops->scan; } /* invoke wmi_unified_scan_start_cmd_send() */ QDF_ASSERT(scan_ops->scan_start); if (scan_ops->scan_start) return scan_ops->scan_start(pdev, req);//注意这里调用 scan_ops 里面的scan_start // 即对应target_if_scan_start 后面分析该函数注册的地方 }
注册的地方
//那么tx_opsd->scan_ops什么时候，注册，如下： /* lmac相关操作注册 */ target_if_scan_tx_ops_register(struct wlan_lmac_if_tx_ops *tx_ops) { struct wlan_lmac_if_scan_tx_ops *scan; scan = &tx_ops->scan; if (!scan) { target_if_err("Scan txops NULL"); return QDF_STATUS_E_FAILURE; } scan->scan_start = target_if_scan_start; scan->scan_cancel = target_if_scan_cancel; scan->pno_start = target_if_pno_start; scan->pno_stop = target_if_pno_stop; scan->scan_reg_ev_handler = target_if_scan_register_event_handler; scan->scan_unreg_ev_handler = target_if_scan_unregister_event_handler; return QDF_STATUS_SUCCESS; }
所以相当于调用target_if_scan_start
target_if_scan_start
//到这一层了 target_if_scan_start(struct wlan_objmgr_pdev *pdev, struct scan_start_request *req) { wmi_unified_t pdev_wmi_handle; pdev_wmi_handle = GET_WMI_HDL_FROM_PDEV(pdev); if (!pdev_wmi_handle) { target_if_err("Invalid PDEV WMI handle"); return QDF_STATUS_E_FAILURE;c } return wmi_unified_scan_start_cmd_send(pdev_wmi_handle, &req->scan_req); }
wmi_unified_scan_start_cmd_send
QDF_STATUS wmi_unified_scan_start_cmd_send(wmi_unified_t wmi_handle, struct scan_req_params *param) { if (wmi_handle->ops->send_scan_start_cmd)c return wmi_handle->ops->send_scan_start_cmd(wmi_handle, param); }
那么
wmi_handle->ops->send_scan_start_cmd又是哪一个参见
qca-wifi-g431c69b42e38-dirty/cmn_dev/wmi/src/wmi_unified_tlv.c的struct wmi_ops tlv_ops结构体struct wmi_ops tlv_ops = { .send_vdev_create_cmd = send_vdev_create_cmd_tlv, .send_beacon_tmpl_send_cmd = send_beacon_tmpl_send_cmd_tlv, .send_fd_tmpl_cmd = send_fd_tmpl_cmd_tlv, .send_peer_assoc_cmd = send_peer_assoc_cmd_tlv, .send_scan_start_cmd = send_scan_start_cmd_tlv, // 这里是扫描相关的 接下来分析 // 下面省略了很多 };
接下来分析
send_scan_start_cmd_tlv函数分析send_scan_start_cmd_tlv
static QDF_STATUS send_scan_start_cmd_tlv(wmi_unified_t wmi_handle, struct scan_req_params *params) { //组织tlv ret = wmi_unified_cmd_send(wmi_handle, wmi_buf, len, WMI_START_SCAN_CMDID); }
#define wmi_unified_cmd_send(wmi_handle, buf, buflen, cmd_id) \ wmi_unified_cmd_send_fl(wmi_handle, buf, buflen, \ cmd_id, __func__, __LINE__)
接下来分析htc
QDF_STATUS wmi_unified_cmd_send_fl(wmi_unified_t wmi_handle, wmi_buf_t buf, uint32_t len, uint32_t cmd_id, const char *func, uint32_t line) { // 转为htc的pkt SET_HTC_PACKET_INFO_TX(pkt, NULL, qdf_nbuf_data(buf), len + sizeof(WMI_CMD_HDR), wmi_handle->wmi_endpoint_id, htc_tag); SET_HTC_PACKET_NET_BUF_CONTEXT(pkt, buf); wmi_htc_send_pkt(wmi_handle, pkt, func, line); { status = htc_send_pkt(wmi_handle->htc_handle, pkt); { __htc_send_pkt(htc_handle, htc_packet); pEndpoint = &target->endpoint[pPacket->Endpoint]; netbuf = GET_HTC_PACKET_NET_BUF_CONTEXT(pPacket); qdf_nbuf_push_head(netbuf, sizeof(HTC_FRAME_HDR)); /* setup HTC frame header */ htc_hdr = (HTC_FRAME_HDR *)qdf_nbuf_get_frag_vaddr(netbuf, 0); // 发送htc的包 htc_try_send(target, pEndpoint, &pPktQueue); } } }

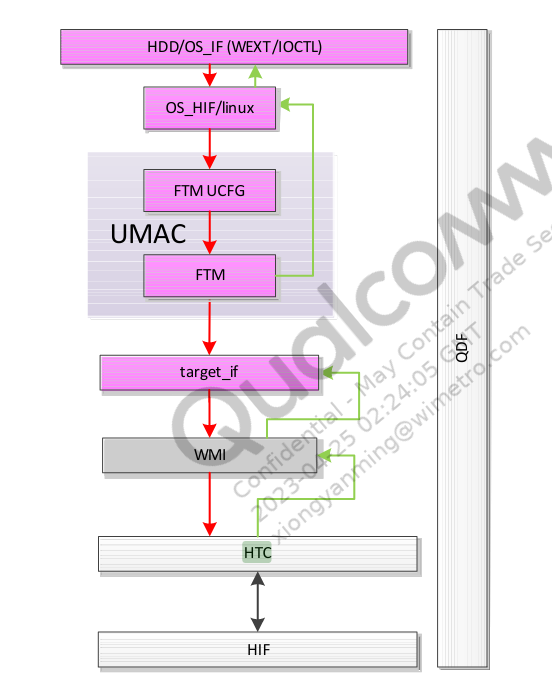

总结：

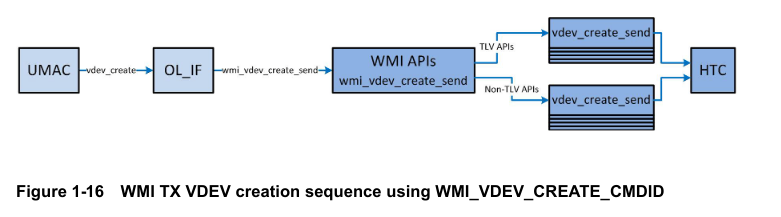

wmi

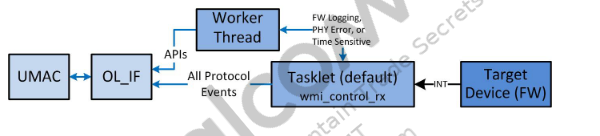

rx path
tx path
cfg80211层到mac80211层传递过程分析
cfg80211注册流程
驱动入口函数 cfg80211_init
在linux-ipq_ipq60xx/linux-4.4.60/net/wireless/core.c文件完成cfg80211_init的注册
static struct notifier_block cfg80211_netdev_notifier = {
.notifier_call = cfg80211_netdev_notifier_call,
};
static void __net_exit cfg80211_pernet_exit(struct net *net)
{
struct cfg80211_registered_device *rdev;
rtnl_lock();
list_for_each_entry(rdev, &cfg80211_rdev_list, list) {
if (net_eq(wiphy_net(&rdev->wiphy), net))
WARN_ON(cfg80211_switch_netns(rdev, &init_net));
}
rtnl_unlock();
}
//内核子系统的ops
static struct pernet_operations cfg80211_pernet_ops = {
.exit = cfg80211_pernet_exit,
};
//入口函数
static int __init cfg80211_init(void)
{
int err;
// 在系统中注册网络命名空间子系统
err = register_pernet_device(&cfg80211_pernet_ops);
// 注册ieee80211_class类
err = wiphy_sysfs_init();
{
//将class注册到内核中，同时会在/sys/class/下创建class对应的节点
class_register(&ieee80211_class);
}
// 注册网络通知，以接收网络事件
err = register_netdevice_notifier(&cfg80211_netdev_notifier);
// 注册netlink "nl80211",其操作为nl80211_ops 下面会重点分析---------------------------------------重点nl80211_init
err = nl80211_init();
// 创建sys/class/ieee80211目录
ieee80211_debugfs_dir = debugfs_create_dir("ieee80211", NULL);
err = regulatory_init();
// 创建名为“cfg80211”的内核线程
cfg80211_wq = create_singlethread_workqueue("cfg80211");
}
//subsys_initcall与module_init仅仅是__define_initcall的第二个参数不同而已,前者使用4，后者使用6,因此归纳出仅仅是谁先被执行的差异，subsys_initcall比module_init先执行
subsys_initcall(cfg80211_init);
//出口函数
static void __exit cfg80211_exit(void)
{
debugfs_remove(ieee80211_debugfs_dir);
nl80211_exit();
unregister_netdevice_notifier(&cfg80211_netdev_notifier);
wiphy_sysfs_exit();
regulatory_exit();
unregister_pernet_device(&cfg80211_pernet_ops);
destroy_workqueue(cfg80211_wq);
}
module_exit(cfg80211_exit);
nl80211_init函数分析
在上面的在内核cfg80211_init初始化代码中，完成了对nl80211的初始化，接下来分析nl80211_init 内核中nl80211模块
nl80211直接使用的是Generic Netlink接口，添加了一个name为“nl80211”的family和对应的 ops方法，同时注册了多个多播组(代码位置kernel/net/wireless/nl80211.c)
int nl80211_init(void)
{
/*
* nl80211_fam添加到genl中的family,nl80211_ops包含了nl80211可以接受到的命令，
* 每种命令都有相应的nl80211
* 处理函数.wifi的scan，associate，connect等等，都是由此处理的
*/
err = genl_register_family_with_ops_groups(&nl80211_fam, nl80211_ops, nl80211_mcgrps);
/*
* 在netlink_register链上注册回调函数nl80211_netlink_notifier
* notifier机制是子系统之间通信手段，netlink_register链上的子系统会检测用户态socket的连接状况
* 如果发生改变则通知运行回调函数
*/
err = netlink_register_notifier(&nl80211_netlink_notifier);
}
在nl80211_init()之后，通过nl80211_ops结构体实现与CMD关联，参见qca/src/linux-4.4/net/wireless/nl80211.c文件
static const struct genl_ops nl80211_ops[] = {
{
.cmd = NL80211_CMD_GET_WIPHY,
.doit = nl80211_get_wiphy,
.dumpit = nl80211_dump_wiphy,
.done = nl80211_dump_wiphy_done,
.policy = nl80211_policy,
/* can be retrieved by unprivileged users */
.internal_flags = NL80211_FLAG_NEED_WIPHY |
NL80211_FLAG_NEED_RTNL,
},
{
.cmd = NL80211_CMD_SET_WIPHY,
.doit = nl80211_set_wiphy,
.policy = nl80211_policy,
.flags = GENL_ADMIN_PERM,
.internal_flags = NL80211_FLAG_NEED_RTNL,
},
{
.cmd = NL80211_CMD_GET_INTERFACE,
.doit = nl80211_get_interface,
.dumpit = nl80211_dump_interface,
.policy = nl80211_policy,
/* can be retrieved by unprivileged users */
.internal_flags = NL80211_FLAG_NEED_WDEV |
NL80211_FLAG_NEED_RTNL,
},
{
.cmd = NL80211_CMD_TRIGGER_SCAN, // 扫描
.doit = nl80211_trigger_scan,
.policy = nl80211_policy,
.flags = GENL_ADMIN_PERM,
.internal_flags = NL80211_FLAG_NEED_WDEV_UP |
NL80211_FLAG_NEED_RTNL,
},
{
.cmd = NL80211_CMD_CONNECT,// 连接
.doit = nl80211_connect,
.policy = nl80211_policy,
.flags = GENL_ADMIN_PERM,
.internal_flags = NL80211_FLAG_NEED_NETDEV_UP |
NL80211_FLAG_NEED_RTNL,
},
// 下面省略了很多
};
这样应用层在发出nl消息后，驱动层在根据cmd 调用对应的ops来接收应用nl消息，并处理执行动作。
