高通QSDK 编译分析

uboot说明

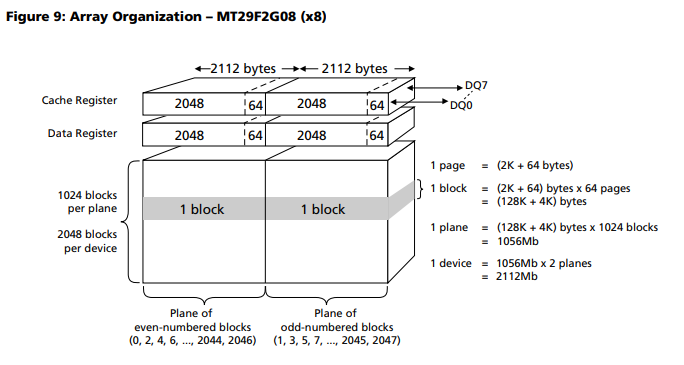

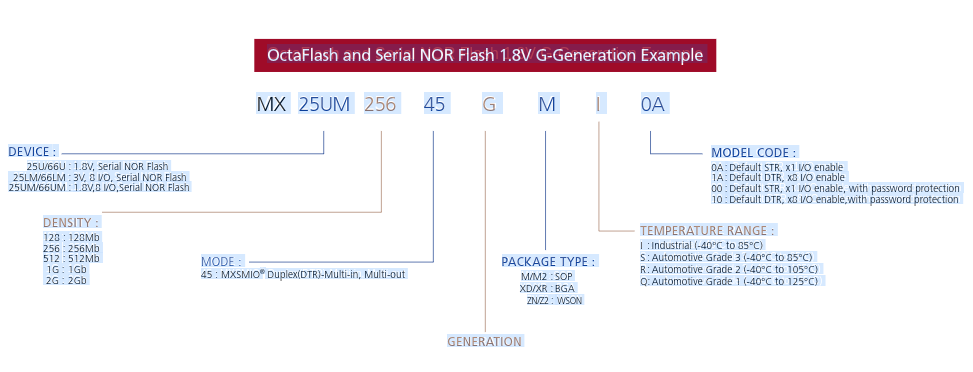

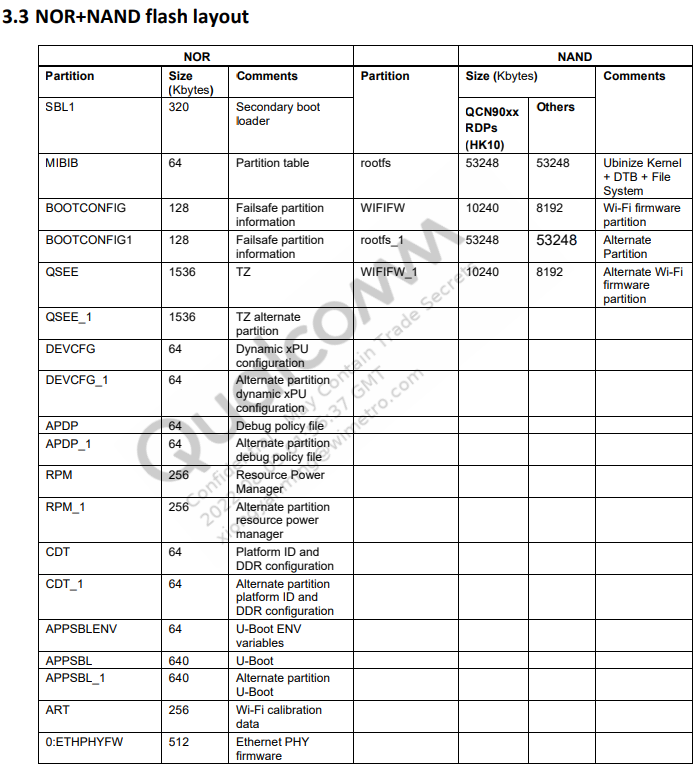

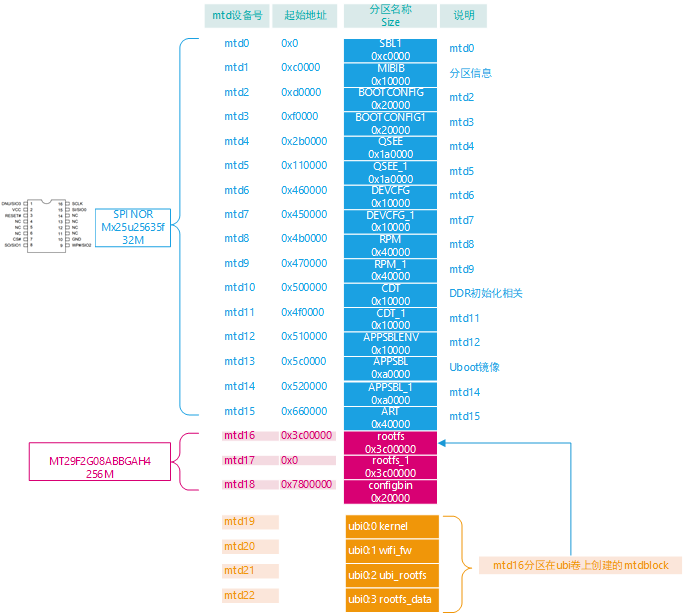

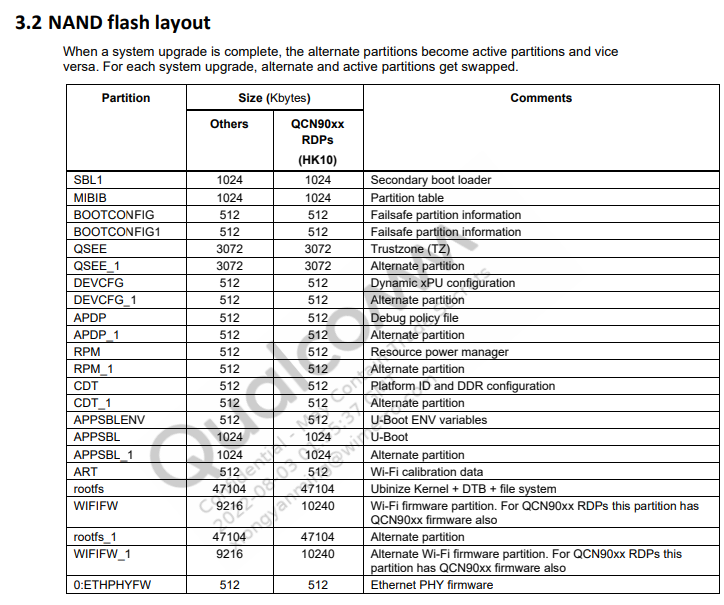

Flash 布局

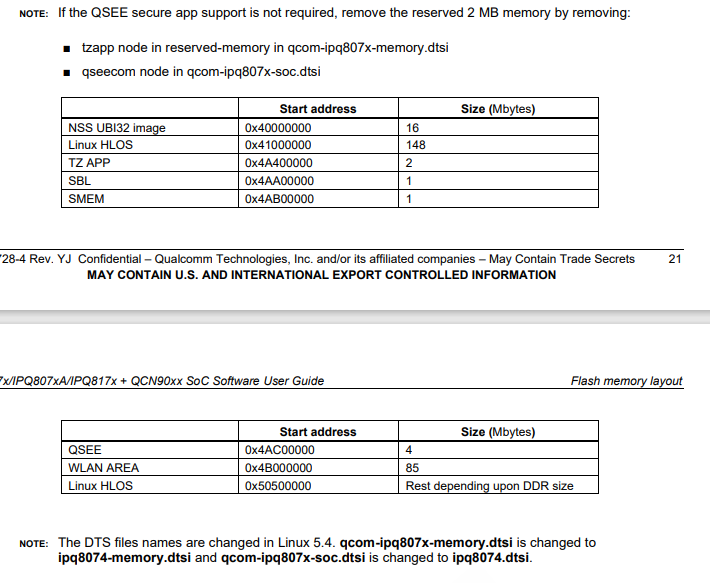

DDR 布局

自定义flash分区

在<chipcode>目录下分别在下面的目录会看到分区表信息

<chipcode>/apss_proc/out/proprietary/QSDK-Base/meta-tools/ipq6018/flash_partition目录

原始分区文件目录
<chipcode>/apss_proc/out/meta-tools/ipq6018/flash_partition目录

在打包single_image执行./wim_pack_single_image.sh脚本时，拷贝【步骤1】中的内容到该目录下
<chipcode>/qsdk/meta-tools/ipq6018/flash_partition/

在生成qsdk的时执行./wim_rebuild.sh时，拷贝【步骤1】中内容到该目录下
<chipcode>/common/build/ipq/ipq6018/flash_partition目录

todo

生成系统分区镜像在qsdk\meta-tools目录下执行下面脚本生成不同的分区镜像

# --arch   架构 例如 ipq60xx ipq807x
# --fltype 存储类型例如 nor、nand、emmc、norplusnand、norplusemmc
# --in     Output directory where all individual images are copied for single image packing

# NOR 输出镜像路径为：common/build/ipq/nor-system-partition-ipq6018.bin
python prepareSingleImage.py --arch ipq60xx --fltype nor --genpart
--in /images/ipq

# NAND 输出镜像路径为：common/build/ipq/nand-system-partition-ipq6018.bin
python prepareSingleImage.py --arch ipq60xx --fltype nand --genpart
--in /images/ipq

# NOR+NAND 输出镜像路径为：common/build/ipq/norplusnand-system-partition-ipq6018.bin
python prepareSingleImage.py --arch ipq60xx --fltype norplusnand --genpart
--in /images/ipq

# NOR+emmc 输出镜像路径为：common/build/ipq/norplusemmc-system-partition-ipq6018.bin
python prepareSingleImage.py --arch ipq60xx --fltype norplusemmc --genpart
--in /images/ipq

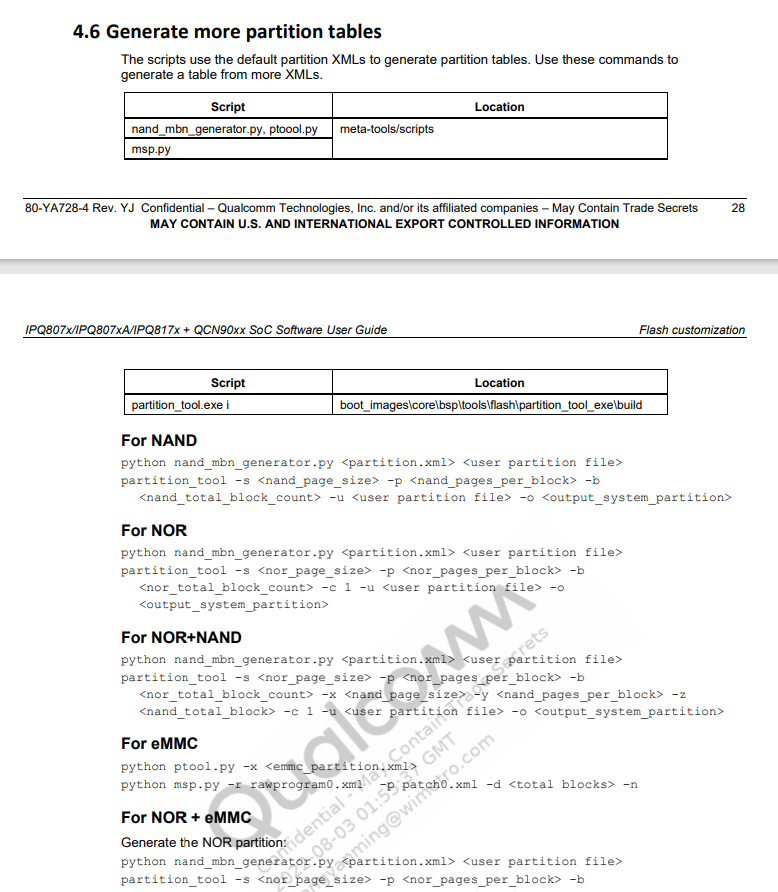

生成更多的分区信息表

编译Single image

编译分析

生成不带initramfs版本镜像

用下面的命令生成压缩格式的镜像

make -C /home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx/linux-4.4.60 HOSTCFLAGS="-O2 -I/home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/staging_dir/host/include -I/home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/staging_dir/host/usr/include -Wall -Wmissing-prototypes -Wstrict-prototypes" CROSS_COMPILE="arm-openwrt-linux-muslgnueabi-" ARCH="arm" KBUILD_HAVE_NLS=no CONFIG_SHELL="bash" V='' CC="arm-openwrt-linux-muslgnueabi-gcc" zImage Image dtbs modules

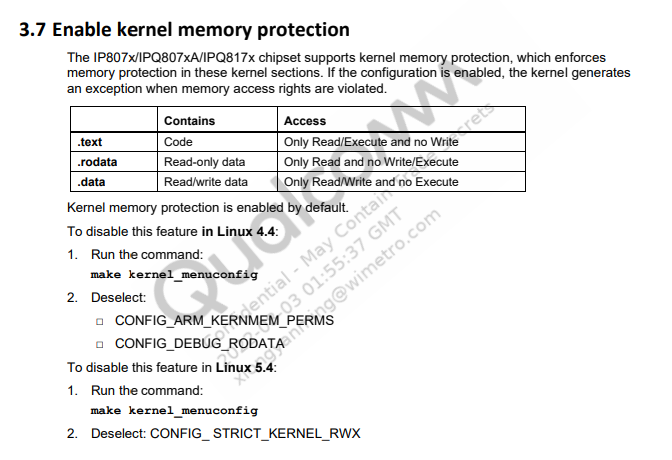

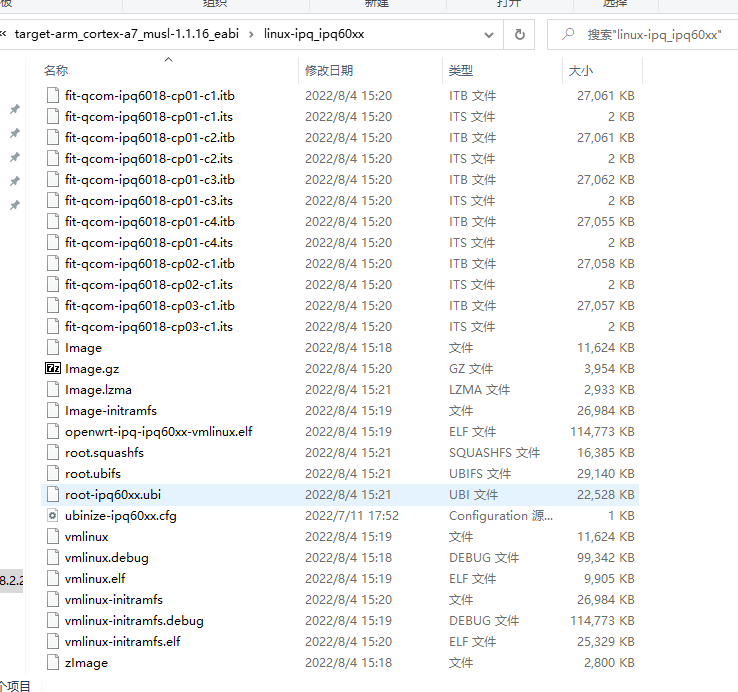

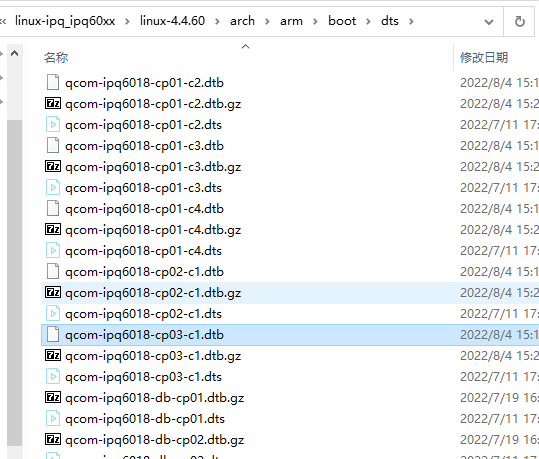

最終生成的镜像zImage和Image和dtbs路径在下面的目录：

qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx/linux-4.4.60/arch/arm/boot/

拷贝镜像到qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx/

cp -fpR qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx/linux-4.4.60/vmlinux
qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx/vmlinux.debug

cp -fpR qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx/linux-4.4.60/arch/arm/boot//zImage
qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx/zImage;

cp -fpR qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx/linux-4.4.60/arch/arm/boot//Image
qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx/Image;

拷贝后

备份内核配置

mv qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx/linux-4.4.60/.config
qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx/linux-4.4.60/.config.old

生成带initramfs的镜像

修改内核配置

echo 'CONFIG_INITRAMFS_SOURCE="qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/root-ipq qsdk/target/linux/generic/image/initramfs-base-files.txt"'
>> qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx/linux-4.4.60/.config

echo 'CONFIG_INITRAMFS_ROOT_UID=1001'
>> qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx/linux-4.4.60/.config

echo 'CONFIG_INITRAMFS_ROOT_GID=1001'
>> qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx/linux-4.4.60/.config

echo "# CONFIG_INITRAMFS_COMPRESSION_NONE is not set"
>> qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx/linux-4.4.60/.config

echo -e "# CONFIG_INITRAMFS_COMPRESSION_GZIP is not set\n# CONFIG_RD_GZIP is not set"
>> qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx/linux-4.4.60/.config

echo -e "# CONFIG_INITRAMFS_COMPRESSION_BZIP2 is not set\n# CONFIG_RD_BZIP2 is not set"
>> qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx/linux-4.4.60/.config

echo -e "CONFIG_INITRAMFS_COMPRESSION_LZMA=y\nCONFIG_RD_LZMA=y"
>> qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx/linux-4.4.60/.config

echo -e "# CONFIG_INITRAMFS_COMPRESSION_LZO is not set\n# CONFIG_RD_LZO is not set"
>> qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx/linux-4.4.60/.config

echo -e "# CONFIG_INITRAMFS_COMPRESSION_XZ is not set\n# CONFIG_RD_XZ is not set"
>> qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx/linux-4.4.60/.config

echo -e "# CONFIG_INITRAMFS_COMPRESSION_LZ4 is not set\n# CONFIG_RD_LZ4 is not set"
>> qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx/linux-4.4.60/.config


#~~~~~~~~~~~~~~~~~~~~~~~~~省略N行~~~~~~~~~~~~~~~~~~~~~

用下面的命令再次生成镜像

make -C /home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx/linux-4.4.60 HOSTCFLAGS="-O2 -I/home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/staging_dir/host/include -I/home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/staging_dir/host/usr/include -Wall -Wmissing-prototypes -Wstrict-prototypes" CROSS_COMPILE="arm-openwrt-linux-muslgnueabi-" ARCH="arm" KBUILD_HAVE_NLS=no CONFIG_SHELL="bash" V='' CC="arm-openwrt-linux-muslgnueabi-gcc" zImage Image dtbs modules

拷贝镜像到qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx/

cp -fpR /home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx/linux-4.4.60/vmlinux
/home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx/vmlinux-initramfs.debug

cp -fpR /home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx/linux-4.4.60/arch/arm/boot//zImage
/home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx/zImage-initramfs;

cp -fpR /home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx/linux-4.4.60/arch/arm/boot//Image
/home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx/Image-initramfs;

拷贝modules和安装modules到文件系统目录

rm -rf /home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx/debug

mkdir -p /home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx/debug/modules

cp -fpR /home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx/linux-4.4.60/vmlinux
/home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx/debug/

cp -fpR /home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/staging_dir/target-arm_cortex-a7_musl-1.1.16_eabi/root-ipq/lib/modules/4.4.60/*
/home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx/debug/modules/

cp -fpR /home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx/debug
/home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/bin/ipq/

touch /home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx/linux-4.4.60/.image
make -C image compile install TARGET_BUILD=
make[5]: Entering directory '/home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/target/linux/ipq/image'
make[5]: Nothing to be done for 'compile'.
mkdir -p /home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx/tmp


cp -fpR /home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx/linux-4.4.60/vmlinux
/home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx/openwrt-ipq-ipq60xx-vmlinux.elf

# Use symbolic permissions to avoid clobbering SUID/SGID/sticky bits
find /home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/root-ipq -type f -not -perm /0100 -not -name 'ssh_host*' -not -name 'shadow' -print0 | xargs -r -0 chmod u+rw,g+r,o+r
find /home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/root-ipq -type f -perm /0100 -print0 | xargs -r -0 chmod u+rwx,g+rx,o+rx
find /home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/root-ipq -type d -print0 | xargs -r -0 chmod u+rwx,g+rx,o+rx

install -d -m0755 /home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/root-ipq/tmp
 /home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/root-ipq/overlay

chmod 1777 /home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/root-ipq/tmp
cp -fpR /home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx/vmlinux.debug
/home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/bin/ipq/openwrt-ipq-ipq60xx-vmlinux.elf

todo

压缩镜像，为后面生成itb用

gzip Image ->Image.gz
lzma Image->Image.lzma

cp -fpR /home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx/Image
/home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/bin/ipq/openwrt-ipq-ipq60xx-vmlinux.bin

gzip -9 -c /home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx/Image
> /home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx/Image.gz

/home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/staging_dir/host/bin/lzma
e /home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx/Image
-lc1 -lp2 -pb2 /home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx/Image.lzma

生成itb文件

生成its文件 gzip格式压缩

home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/scripts/mkits.sh
-D qcom-ipq6018-cp01-c2
-o /home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx/fit-qcom-ipq6018-cp01-c2.its
-k  /home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx/Image.gz
-d  /home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx/linux-4.4.60/arch/arm/boot/dts//qcom-ipq6018-cp01-c2.dtb
-C gzip
-a 0x41008000
-e 0x41008000
-A arm
-v 4.4.60

根据its生成itb文件

mkimage -f /home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx/fit-qcom-ipq6018-cp01-c2.its
/home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx/fit-qcom-ipq6018-cp01-c2.itb

把生成的itb dtb image 文件拷贝到qsdk/bin/ipq/目录下

cp -fpR /home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx/fit-qcom-ipq6018-cp01-c2.itb
/home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/bin/ipq/openwrt-ipq-ipq60xx-qcom-ipq6018-cp01-c2-fit-uImage.itb

mkdir -p /home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/bin/ipq/dtbs/
cp -fpR /home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx/linux-4.4.60/arch/arm/boot/dts//qcom-ipq*.dtb
/home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/bin/ipq/dtbs/

cp -fpR /home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx/Image
/home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/bin/ipq/dtbs/

cp -fpR /home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx/Image
/home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/bin/ipq/openwrt-ipq-ipq60xx-vmlinux.bin

gzip -9 -c /home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx/Image
> /home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx/Image.gz

/home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/staging_dir/host/bin/lzma
e /home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx/Image
-lc1 -lp2 -pb2 /home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx/Image.lzma

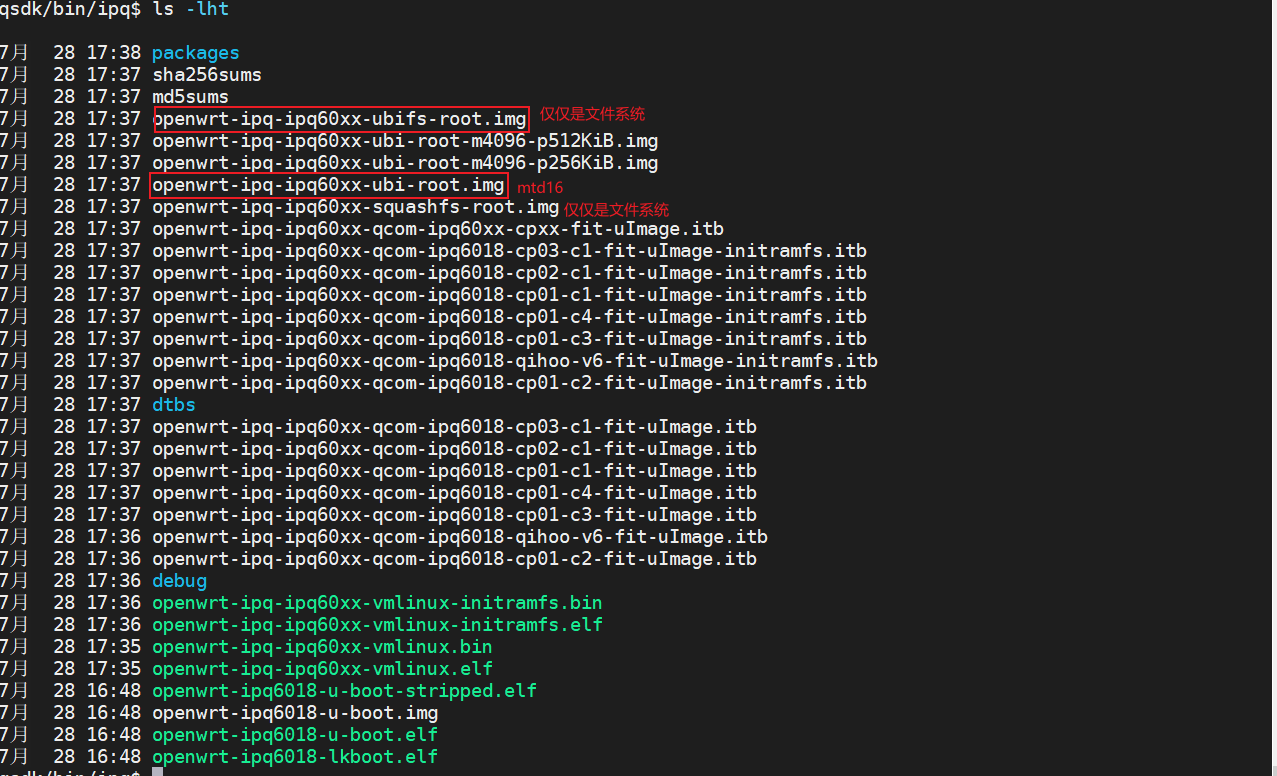

按照上面的流程以此生成剩下的的itb文件并拷贝到qsdk/bin/ipq/目录下
- openwrt-ipq-ipq60xx-qcom-ipq6018-cp01-c2-fit-uImage.itb
- openwrt-ipq-ipq60xx-qcom-ipq6018-cp01-c3-fit-uImage.itb
- openwrt-ipq-ipq60xx-qcom-ipq6018-db-cp02-fit-uImage.itb
- openwrt-ipq-ipq60xx-qcom-ipq6018-db-cp01-fit-uImage.itb
- openwrt-ipq-ipq60xx-qcom-ipq6018-cp01-c4-fit-uImage.itb
- openwrt-ipq-ipq60xx-qcom-ipq6018-cp01-c1-fit-uImage.itb
openwrt-ipq-ipq60xx-qcom-ipq6018-cp02-c1-fit-uImage.itb
- openwrt-ipq-ipq60xx-qcom-ipq6018-cp03-c1-fit-uImage.itb

上面一步是生成的内核和单个的dtb的镜像，下面生成内核和所有dtb的镜像

生成its文件 gzip格式压缩，用-d 指定多个dtb文件生成fit-qcom-ipq60xx-cpxx.its

/home/xym/works/03.qsdk_oem/qsdk/scripts/mkits.sh
-D qcom-ipq60xx-cpxx
-o /home/xym/works/03.qsdk_oem/qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx/fit-qcom-ipq60xx-cpxx.its
-k /home/xym/works/03.qsdk_oem/qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx/Image.gz
-d /home/xym/works/03.qsdk_oem/qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx/linux-4.4.60/arch/arm/boot/dts//qcom-ipq6018-cp01-c2.dtb
-d /……/qcom-ipq6018-cp01-c3.dtb
-d /……/qcom-ipq6018-db-cp02.dtb
-d /……/qcom-ipq6018-db-cp01.dtb
-d /……/qcom-ipq6018-cp01-c4.dtb
-d /……/qcom-ipq6018-cp01-c1.dtb
-d /……/qcom-ipq6018-cp02-c1.dtb
-d /……/qcom-ipq6018-cp03-c1.dtb
-C gzip
-a  0x41008000
-e  0x41008000
-A arm
-v 4.4.60

根据fit-qcom-ipq60xx-cpxx.its生成包含所有dtb的fit-qcom-ipq60xx-cpxx.itb文件

默认是config@cp03-c1

mkimage -f /home/xym/works/03.qsdk_oem/qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx/fit-qcom-ipq60xx-cpxx.its /home/xym/works/03.qsdk_oem/qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx/fit-qcom-ipq60xx-cpxx.itb

FIT description: ARM OpenWrt FIT (Flattened Image Tree)
Created:         Mon Aug  8 09:59:37 2022
 Image 0 (kernel@1)
  Description:  ARM OpenWrt Linux-4.4.60
  Created:      Mon Aug  8 09:59:37 2022
  Type:         Kernel Image
  Compression:  gzip compressed
  Data Size:    4050739 Bytes = 3955.80 kB = 3.86 MB
  Architecture: ARM
  OS:           Linux
  Load Address: 0x41008000
  Entry Point:  0x41008000
  Hash algo:    crc32
  Hash value:   2eb15341
  Hash algo:    sha1
  Hash value:   aacab0a37da026a0ec9351cfef53beb264389c14
 Image 1 (fdt@cp01-c2)
  Description:  ARM OpenWrt qcom-ipq60xx-cpxx device tree blob
  Created:      Mon Aug  8 09:59:37 2022
  Type:         Flat Device Tree
  Compression:  uncompressed
  Data Size:    75585 Bytes = 73.81 kB = 0.07 MB
  Architecture: ARM
  Hash algo:    crc32
  Hash value:   b0c5bdee
  Hash algo:    sha1
  Hash value:   a888bde80fe22ae0874098b8447f41985340b81d
 Image 2 (fdt@cp01-c3)
  Description:  ARM OpenWrt qcom-ipq60xx-cpxx device tree blob
  Created:      Mon Aug  8 09:59:37 2022
  Type:         Flat Device Tree
  Compression:  uncompressed
  Data Size:    78857 Bytes = 77.01 kB = 0.08 MB
  Architecture: ARM
  Hash algo:    crc32
  Hash value:   a313fd6c
  Hash algo:    sha1
  Hash value:   202478b900fb4552fe7371fbe3c14dabd46edbb8
 Image 3 (fdt@db-cp02)
  Description:  ARM OpenWrt qcom-ipq60xx-cpxx device tree blob
  Created:      Mon Aug  8 09:59:37 2022
  Type:         Flat Device Tree
  Compression:  uncompressed
  Data Size:    95903 Bytes = 93.66 kB = 0.09 MB
  Architecture: ARM
  Hash algo:    crc32
  Hash value:   ca7608ae
  Hash algo:    sha1
  Hash value:   4ac53b46480ca793daa2bf58690a4b951d88b916
 Image 4 (fdt@db-cp01)
  Description:  ARM OpenWrt qcom-ipq60xx-cpxx device tree blob
  Created:      Mon Aug  8 09:59:37 2022
  Type:         Flat Device Tree
  Compression:  uncompressed
  Data Size:    72188 Bytes = 70.50 kB = 0.07 MB
  Architecture: ARM
  Hash algo:    crc32
  Hash value:   73e49fc1
  Hash algo:    sha1
  Hash value:   cf23f30775ab9f4f666ca0822660d3bf2c5adc9d
 Image 5 (fdt@cp01-c4)
  Description:  ARM OpenWrt qcom-ipq60xx-cpxx device tree blob
  Created:      Mon Aug  8 09:59:37 2022
  Type:         Flat Device Tree
  Compression:  uncompressed
  Data Size:    69001 Bytes = 67.38 kB = 0.07 MB
  Architecture: ARM
  Hash algo:    crc32
  Hash value:   544d1f1a
  Hash algo:    sha1
  Hash value:   5a1c2c1e4fbae52fe36633db68a3be27d7f312a2
 Image 6 (fdt@cp01-c1)
  Description:  ARM OpenWrt qcom-ipq60xx-cpxx device tree blob
  Created:      Mon Aug  8 09:59:37 2022
  Type:         Flat Device Tree
  Compression:  uncompressed
  Data Size:    75384 Bytes = 73.62 kB = 0.07 MB
  Architecture: ARM
  Hash algo:    crc32
  Hash value:   42e387a1
  Hash algo:    sha1
  Hash value:   1d51a8eeee9abac0aa7621e3e2fd5418943f5c4d
 Image 7 (fdt@cp02-c1)
  Description:  ARM OpenWrt qcom-ipq60xx-cpxx device tree blob
  Created:      Mon Aug  8 09:59:37 2022
  Type:         Flat Device Tree
  Compression:  uncompressed
  Data Size:    72170 Bytes = 70.48 kB = 0.07 MB
  Architecture: ARM
  Hash algo:    crc32
  Hash value:   df594489
  Hash algo:    sha1
  Hash value:   4ea6259b8d869c41f2ec541f272deb9e7d7f77ea
 Image 8 (fdt@cp03-c1)
  Description:  ARM OpenWrt qcom-ipq60xx-cpxx device tree blob
  Created:      Mon Aug  8 09:59:37 2022
  Type:         Flat Device Tree
  Compression:  uncompressed
  Data Size:    71499 Bytes = 69.82 kB = 0.07 MB
  Architecture: ARM
  Hash algo:    crc32
  Hash value:   33aa1f1b
  Hash algo:    sha1
  Hash value:   9660c4a152641a0c33c854c90c9eed4834165779
 Default Configuration: 'config@cp03-c1'
 Configuration 0 (config@cp01-c2)
Description:  OpenWrt
  Kernel:       kernel@1
  FDT:          fdt@cp01-c2
 Configuration 1 (config@cp01-c3)
  Description:  OpenWrt
  Kernel:       kernel@1
  FDT:          fdt@cp01-c3
 Configuration 2 (config@db-cp02)
  Description:  OpenWrt
  Kernel:       kernel@1
  FDT:          fdt@db-cp02
 Configuration 3 (config@db-cp01)
  Description:  OpenWrt
  Kernel:       kernel@1
  FDT:          fdt@db-cp01
 Configuration 4 (config@cp01-c4)
  Description:  OpenWrt
  Kernel:       kernel@1
  FDT:          fdt@cp01-c4
 Configuration 5 (config@cp01-c1)
  Description:  OpenWrt
  Kernel:       kernel@1
  FDT:          fdt@cp01-c1
 Configuration 6 (config@cp02-c1)
  Description:  OpenWrt
  Kernel:       kernel@1
  FDT:          fdt@cp02-c1
 Configuration 7 (config@cp03-c1)
  Description:  OpenWrt
  Kernel:       kernel@1
  FDT:          fdt@cp03-c1

最终会把fit-qcom-ipq60xx-cpxx.itb拷贝到qsdk\bin\ipq\openwrt-ipq-ipq60xx-qcom-ipq60xx-cpxx-fit-uImage.itb

重复上面两步，只是在制作its的时候指定不使用gzip压缩，且内核为initramfs，即生成带ramfs的itb文件

即生成单个initramfs版本的内核和单个dtb的itb文件

例如：下面使用Image-initramfs 來制作单个的itb文件

/home/xym/works/03.qsdk_oem/qsdk/scripts/mkits.sh
-D qcom-ipq6018-cp03-c1
-o /home/xym/works/03.qsdk_oem/qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx/fit-qcom-ipq6018-cp03-c1.its
-k  /home/xym/works/03.qsdk_oem/qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx/Image-initramfs
-d  /home/xym/works/03.qsdk_oem/qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx/linux-4.4.60/arch/arm/boot/dts//qcom-ipq6018-cp03-c1.dtb
-C  none -a 0x41008000 -e 0x41008000 -A arm -v 4.4.60

生成的itb文件如下

openwrt-ipq-ipq60xx-qcom-ipq6018-cp01-c2-fit-uImage-initramfs.itb
openwrt-ipq-ipq60xx-qcom-ipq6018-cp01-c3-fit-uImage-initramfs.itb
openwrt-ipq-ipq60xx-qcom-ipq6018-cp01-c4-fit-uImage-initramfs.itb
openwrt-ipq-ipq60xx-qcom-ipq6018-cp01-c1-fit-uImage-initramfs.itb
openwrt-ipq-ipq60xx-qcom-ipq6018-cp02-c1-fit-uImage-initramfs.itb
openwrt-ipq-ipq60xx-qcom-ipq6018-cp03-c1-fit-uImage-initramfs.itb

下面这一段不知道为什么和步骤7重复

然后生成总的fit-qcom-ipq60xx-cpxx.itb

/home/xym/works/03.qsdk_oem/qsdk/scripts/mkits.sh
-D qcom-ipq60xx-cpxx
-o /home/xym/works/03.qsdk_oem/qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx/fit-qcom-ipq60xx-cpxx.its
-k /home/xym/works/03.qsdk_oem/qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx/Image.gz
-d /……/qcom-ipq6018-cp01-c2.dtb
-d /……/qcom-ipq6018-cp01-c3.dtb
-d /……/qcom-ipq6018-db-cp02.dtb
-d /……/qcom-ipq6018-db-cp01.dtb
-d /……/qcom-ipq6018-cp01-c4.dtb
-d /……/qcom-ipq6018-cp01-c1.dtb
-d /……/qcom-ipq6018-cp02-c1.dtb
-d /……/qcom-ipq6018-cp03-c1.dtb
-C gzip
-a  0x41008000
-e  0x41008000
-A arm
-v 4.4.60

mkimage
-f /home/xym/works/03.qsdk_oem/qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx/fit-qcom-ipq60xx-cpxx.its
/home/xym/works/03.qsdk_oem/qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx/fit-qcom-ipq60xx-cpxx.itb

FIT description: ARM OpenWrt FIT (Flattened Image Tree)
Created:         Mon Aug  8 09:59:48 2022
 Image 0 (kernel@1)
  Description:  ARM OpenWrt Linux-4.4.60
  Created:      Mon Aug  8 09:59:48 2022
  Type:         Kernel Image
  Compression:  gzip compressed
  Data Size:    4050739 Bytes = 3955.80 kB = 3.86 MB
  Architecture: ARM
  OS:           Linux
  Load Address: 0x41008000
  Entry Point:  0x41008000
  Hash algo:    crc32
  Hash value:   2eb15341
  Hash algo:    sha1
  Hash value:   aacab0a37da026a0ec9351cfef53beb264389c14
 Image 1 (fdt@cp01-c2)
  Description:  ARM OpenWrt qcom-ipq60xx-cpxx device tree blob
  Created:      Mon Aug  8 09:59:48 2022
  Type:         Flat Device Tree
  Compression:  uncompressed
  Data Size:    75585 Bytes = 73.81 kB = 0.07 MB
  Architecture: ARM
  Hash algo:    crc32
  Hash value:   b0c5bdee
  Hash algo:    sha1
  Hash value:   a888bde80fe22ae0874098b8447f41985340b81d
 Image 2 (fdt@cp01-c3)
  Description:  ARM OpenWrt qcom-ipq60xx-cpxx device tree blob
  Created:      Mon Aug  8 09:59:48 2022
  Type:         Flat Device Tree
  Compression:  uncompressed
  Data Size:    78857 Bytes = 77.01 kB = 0.08 MB
  Architecture: ARM
  Hash algo:    crc32
  Hash value:   a313fd6c
  Hash algo:    sha1
  Hash value:   202478b900fb4552fe7371fbe3c14dabd46edbb8
 Image 3 (fdt@db-cp02)
  Description:  ARM OpenWrt qcom-ipq60xx-cpxx device tree blob
  Created:      Mon Aug  8 09:59:48 2022
  Type:         Flat Device Tree
  Compression:  uncompressed
  Data Size:    95903 Bytes = 93.66 kB = 0.09 MB
  Architecture: ARM
  Hash algo:    crc32
  Hash value:   ca7608ae
  Hash algo:    sha1
  Hash value:   4ac53b46480ca793daa2bf58690a4b951d88b916
 Image 4 (fdt@db-cp01)
  Description:  ARM OpenWrt qcom-ipq60xx-cpxx device tree blob
  Created:      Mon Aug  8 09:59:48 2022
  Type:         Flat Device Tree
  Compression:  uncompressed
  Data Size:    72188 Bytes = 70.50 kB = 0.07 MB
  Architecture: ARM
  Hash algo:    crc32
  Hash value:   73e49fc1
  Hash algo:    sha1
  Hash value:   cf23f30775ab9f4f666ca0822660d3bf2c5adc9d
 Image 5 (fdt@cp01-c4)
  Description:  ARM OpenWrt qcom-ipq60xx-cpxx device tree blob
  Created:      Mon Aug  8 09:59:48 2022
  Type:         Flat Device Tree
  Compression:  uncompressed
  Data Size:    69001 Bytes = 67.38 kB = 0.07 MB
  Architecture: ARM
  Hash algo:    crc32
  Hash value:   544d1f1a
  Hash algo:    sha1
  Hash value:   5a1c2c1e4fbae52fe36633db68a3be27d7f312a2
 Image 6 (fdt@cp01-c1)
  Description:  ARM OpenWrt qcom-ipq60xx-cpxx device tree blob
  Created:      Mon Aug  8 09:59:48 2022
  Type:         Flat Device Tree
  Compression:  uncompressed
  Data Size:    75384 Bytes = 73.62 kB = 0.07 MB
  Architecture: ARM
  Hash algo:    crc32
  Hash value:   42e387a1
  Hash algo:    sha1
  Hash value:   1d51a8eeee9abac0aa7621e3e2fd5418943f5c4d
 Image 7 (fdt@cp02-c1)
  Description:  ARM OpenWrt qcom-ipq60xx-cpxx device tree blob
  Created:      Mon Aug  8 09:59:48 2022
  Type:         Flat Device Tree
  Compression:  uncompressed
  Data Size:    72170 Bytes = 70.48 kB = 0.07 MB
  Architecture: ARM
  Hash algo:    crc32
  Hash value:   df594489
  Hash algo:    sha1
  Hash value:   4ea6259b8d869c41f2ec541f272deb9e7d7f77ea
 Image 8 (fdt@cp03-c1)
  Description:  ARM OpenWrt qcom-ipq60xx-cpxx device tree blob
  Created:      Mon Aug  8 09:59:48 2022
  Type:         Flat Device Tree
  Compression:  uncompressed
  Data Size:    71499 Bytes = 69.82 kB = 0.07 MB
  Architecture: ARM
  Hash algo:    crc32
  Hash value:   33aa1f1b
  Hash algo:    sha1
  Hash value:   9660c4a152641a0c33c854c90c9eed4834165779
 Default Configuration: 'config@cp03-c1'
 Configuration 0 (config@cp01-c2)
  Description:  OpenWrt
  Kernel:       kernel@1
  FDT:          fdt@cp01-c2
 Configuration 1 (config@cp01-c3)
  Description:  OpenWrt
  Kernel:       kernel@1
  FDT:          fdt@cp01-c3
 Configuration 2 (config@db-cp02)
  Description:  OpenWrt
  Kernel:       kernel@1
  FDT:          fdt@db-cp02
 Configuration 3 (config@db-cp01)
  Description:  OpenWrt
  Kernel:       kernel@1
  FDT:          fdt@db-cp01
 Configuration 4 (config@cp01-c4)
  Description:  OpenWrt
  Kernel:       kernel@1
  FDT:          fdt@cp01-c4
 Configuration 5 (config@cp01-c1)
  Description:  OpenWrt
  Kernel:       kernel@1
  FDT:          fdt@cp01-c1
 Configuration 6 (config@cp02-c1)
  Description:  OpenWrt
  Kernel:       kernel@1
  FDT:          fdt@cp02-c1
 Configuration 7 (config@cp03-c1)
  Description:  OpenWrt
  Kernel:       kernel@1
  FDT:          fdt@cp03-c1

生成的root.squashfs进行对齐并使用dd命令生成qsdk/bin/ipq/openwrt-ipq-ipq60xx-squashfs-root.img

制作文件系统

mksquashfs4 把 root-ipq/ 生成 root.squashfs

/home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/staging_dir/host/bin/mksquashfs4
/home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/root-ipq
/home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx/root.squashfs
-nopad -noappend -root-owned -comp xz -Xpreset 9 -Xe -Xlc 0 -Xlp 2 -Xpb 2 -Xbcj arm -b 256k -p '/dev d 755 0 0' -p '/dev/console c 600 0 0 5 1' -processors 1

dd root.squashfs 生成 qsdk/bin/ipq/openwrt-ipq-ipq60xx-squashfs-root.img

/home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/staging_dir/host/bin/padjffs2
/home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx/root.squashfs 4 8 16 64 128 256

dd if=/home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx/root.squashfs of=/home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/bin/ipq/openwrt-ipq-ipq60xx-squashfs-root.img bs=2k conv=sync

制作ubifs

mkfs.ubifs 命令把/root-ipq 生成 root.ubifs

/home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/staging_dir/host/bin/mkfs.ubifs
-m 2048
-e 124KiB
-c 4096
-U
-F
--space-fixup
--force-compr=zlib
--squash-uids
-o /home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx/root.ubifs
-d /home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/root-ipq

根据ubinize-ipq60xx.cfg使用ubinize和dd命令生成qsdk/bin/ipq/openwrt-ipq-ipq60xx-ubi-root.img

注意ubinize-ipq60xx.cfg原始文件存放目录qsdk\target\linux\ipq\image目录下，所以下面也是从该目录拷贝到qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx下才用的，

cp -fpR qsdk/target/linux/ipq/image/ubinize-ipq60xx.cfg
/home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx

cd /home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx;

/home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/staging_dir/host/bin/ubinize
-m 2048
-p 128KiB
-o /home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx/root-ipq60xx.ubi
ubinize-ipq60xx.cfg

ubinize: volume size was not specified in section "kernel", assume minimum to fit image "fit-qcom-ipq60xx-cpxx.itb"4491784 bytes (4.3 MiB)
ubinize: volume size was not specified in section "rootfs", assume minimum to fit image "root.squashfs"16777220 bytes (16.0 MiB)


dd if=/home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx/root-ipq60xx.ubi

of=/home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/bin/ipq/openwrt-ipq-ipq60xx-ubi-root.img bs=2k conv=sync

同理改变ubiinize参数生成

- openwrt-ipq-ipq60xx-ubi-root-m4096-p256KiB.img
- openwrt-ipq-ipq60xx-ubi-root-m4096-p512KiB.img
- openwrt-ipq-ipq60xx-ubifs-root.img

```bash
生成 openwrt-ipq-ipq60xx-ubi-root-m4096-p256KiB.img

cp -fpR ./ubinize-ipq60xx.cfg
/home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx

cd /home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx
/home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/staging_dir/host/bin/ubinize
-m 4096 -p 256KiB
-o /home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx/root-ipq60xx.ubi ubinize-ipq60xx.cfg


ubinize: volume size was not specified in section "kernel", assume minimum to fit image "fit-qcom-ipq60xx-cpxx.itb"4491784 bytes (4.3 MiB)
ubinize: volume size was not specified in section "rootfs", assume minimum to fit image "root.squashfs"16777220 bytes (16.0 MiB)
dd if=/home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx/root-ipq60xx.ubi
of=/home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/bin/ipq/openwrt-ipq-ipq60xx-ubi-root-m4096-p256KiB.img bs=2k conv=sync

生成 openwrt-ipq-ipq60xx-ubi-root-m4096-p512KiB.img

cp -fpR ./ubinize-ipq60xx.cfg /home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx
cd /home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx
/home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/staging_dir/host/bin/ubinize
-m 4096
-p 512KiB
-o /home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx/root-ipq60xx.ubi ubinize-ipq60xx.cfg

dd if=/home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx/root-ipq60xx.ubi
of=/home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/bin/ipq/openwrt-ipq-ipq60xx-ubi-root-m4096-p512KiB.img bs=2k conv=sync


生成 openwrt-ipq-ipq60xx-ubifs-root.img
dd if=/home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/build_dir/target-arm_cortex-a7_musl-1.1.16_eabi/linux-ipq_ipq60xx/root.ubifs
of=/home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/bin/ipq/openwrt-ipq-ipq60xx-ubifs-root.img bs=2k conv=sync

cd /home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/bin/ipq
find -maxdepth 1 -type f \! -name 'md5sums'  -printf "%P\n" | sort | xargs md5sum --binary > md5sums )
cd /home/xym/works/01.qsdk/QSDK_r11.4_1.2/qsdk/bin/ipq
find -maxdepth 1 -type f \! -name 'md5sums'  -printf "%P\n" | sort | xargs openssl dgst -sha256 > sha256sums )

总结下来就是

mksquashfs4 把 root-ipq/        生成 root.squashfs
dd          把 root.squashfs    生成 openwrt-ipq-ipq60xx-squashfs-root.img

mkfs.ubifs 把  root-ipq/        生成 root.ubifs
dd         把  root.ubifs       生成 openwrt-ipq-ipq60xx-ubifs-root.img

ubinize 根据ubinize-ipq60xx.cfg 生成 root-ipq60xx.ubi
[fit-qcom-ipq60xx-cpxx.itb]
[root.squashfs]
[rootfs_data]
dd         把root-ipq60xx.ubi   生成 openwrt-ipq-ipq60xx-ubi-root.img

todo

打包分析

./ipq/prepareSingleImage.py --arch ipq6018 --in ./ipq --gencdt --genbootconf --genpart --genmbn --memory 512

cdt_generator.py 227 INFO: Filename: '/home/xym/works/01.qsdk/QSDK_r11.4_1.2/common/build/ipq/ipq6018/machid_xml/AP-CP01-C4_256M32_DDR3_LM512.xml'


python /home/xym/works/01.qsdk/QSDK_r11.4_1.2/./apss_proc/out/meta-scripts/pack_hk.py --arch ipq6018 --fltype nand --srcPath ./ipq --inImage ./ipq --outImage ./bin --memory 512
python /home/xym/works/01.qsdk/QSDK_r11.4_1.2/./apss_proc/out/meta-scripts/pack_hk.py --arch ipq6018 --fltype nand --srcPath ./ipq --inImage ./ipq --outImage ./bin --image_type hlos --memory 512
python /home/xym/works/01.qsdk/QSDK_r11.4_1.2/./apss_proc/out/meta-scripts/pack_hk.py --arch ipq6018 --fltype norplusnand --srcPath ./ipq --inImage ./ipq --outImage ./bin --memory 512
python /home/xym/works/01.qsdk/QSDK_r11.4_1.2/./apss_proc/out/meta-scripts/pack_hk.py --arch ipq6018 --fltype norplusnand --srcPath ./ipq --inImage ./ipq --outImage ./bin --image_type hlos --memory 512
python /home/xym/works/01.qsdk/QSDK_r11.4_1.2/./apss_proc/out/meta-scripts/pack_hk.py --arch ipq6018 --fltype emmc --srcPath ./ipq --inImage ./ipq --outImage ./bin --memory 512
python /home/xym/works/01.qsdk/QSDK_r11.4_1.2/./apss_proc/out/meta-scripts/pack_hk.py --arch ipq6018 --fltype emmc --srcPath ./ipq --inImage ./ipq --outImage ./bin --image_type hlos --memory 512
python /home/xym/works/01.qsdk/QSDK_r11.4_1.2/./apss_proc/out/meta-scripts/pack_hk.py --arch ipq6018 --fltype norplusemmc --srcPath ./ipq --inImage ./ipq --outImage ./bin --memory 512
python /home/xym/works/01.qsdk/QSDK_r11.4_1.2/./apss_proc/out/meta-scripts/pack_hk.py --arch ipq6018 --fltype norplusemmc --srcPath ./ipq --inImage ./ipq --outImage ./bin --image_type hlos --memory 512
python /home/xym/works/01.qsdk/QSDK_r11.4_1.2/./apss_proc/out/meta-scripts/pack_hk.py --arch ipq6018 --fltype nor --srcPath ./ipq --inImage ./ipq --outImage ./bin --memory 512
python /home/xym/works/01.qsdk/QSDK_r11.4_1.2/./apss_proc/out/meta-scripts/pack_hk.py --arch ipq6018 --fltype nor --srcPath ./ipq --inImage ./ipq --outImage ./bin --image_type hlos --memory 512

ZCOM# imgaddr=0x44000000
ZCOM# source $imgaddr:script
## Executing script at 44000000
crc32+ SPI_ADDR_LEN=3
SF: Detected MX25U25635F with page size 256 Bytes, erase size 64 KiB, total 32 MiB
soc_hw_version : Validation success
machid : Validation success
Flashing sbl1:                          [ done ]
Flashing mibib:                         [ done ]
Flashing bootconfig:                    [ done ]
Flashing bootconfig1:                   [ done ]
Flashing tz:                            [ done ]
Flashing devcfg:                        [ done ]
Flashing rpm:                           [ done ]
Flashing ddr-AP-CP01-C3_256M32_DDR3:    [ done ]
Flashing u-boot:                        [ done ]
Flashing ubi:                           [ done ]

注：MX25U256 特性如下：

页大小(page)：256 byte
扇区大小(sector)：4K 也就是16个页最小擦除单位也是一个扇区大小4k
块大小(block)：
- 32k 也就是8个扇区
- 64k 也就是16个扇区
总共32M 也就是512个块
支持整片擦除、4k扇区擦除、 32K块擦除和64K块擦除
支持页编程

注：镁光 MT29F2G08ABBEAH4-ITX 特性如下特性如下：

页大小(page)：2k 读写操作的基本单位
块大小(block)：128k 也就是64个页最小擦除单位
总共2048*128k = 256M大小一共2048个块

脚本分析

执行prepareSingleImage.py脚本

./ipq/prepareSingleImage.py --arch ipq6018 --in ./ipq --gencdt --genbootconf --genpart --genmbn

功能分析

准备材料

if bootImgDir != "":
			copy_images("BOOT", bootImgDir)
		if tzImgDir != "":
			copy_images("TZ", tzImgDir)
		if nhssImgDir != "":
			copy_images("NHSS" + mode, nhssImgDir)
		if rpmImgDir != "":
			copy_images("RPM", rpmImgDir)
		if wififwImgDir != "":
			copy_images("WIFIFW", wififwImgDir)

先執行gen_cdt()

# 注意：memory默认取值为 prepareSingleImage.py 的--memcry参数  缺省情况下：默认是"default" 只能是256或者512 否则就失败
gen_cdt_bin.py -c <chipcode>/common/build/ipq/ipq6018/config.xml -o ./ipq/ -m  memory

下面分析gen_cdt_bin.py

# 解析<chipcode>/common/build/ipq/ipq6018/config.xml文件 根据 memory配置
# 重写<chipcode>/common/build/ipq/ipq6018/cdt/256M32_DDR3.xml

#然后遍历<chipcode>/common/build/ipq/ipq6018/machid_xml所有文件执行
<chipcode>/common/build/ipq/scripts/cdt_generator.py <chipcode>/common/build/ipq/ipq6018/machid_xml/AP-CP01-C1_256M32_DDR3.xml cdt-AP-CP01-C1_256M32_DDR3.bin

因为是遍历
所以这里会生成
cdt-AP-CP01-C1_256M32_DDR3.bin
cdt-AP-CP01-C2_256M32_DDR3.bin
cdt-AP-CP01-C3_256M32_DDR3.bin
等等

上面的步骤在打包日志信息上也能看到

./ipq/prepareSingleImage.py --arch ipq6018 --in ./ipq --gencdt --genbootconf --genpart --genmbn

cdt_generator.py 227 INFO: Filename: '/home/xym/works/03.qsdk_oem/common/build/ipq/ipq6018/machid_xml/AP-CP02-C1_256M32_DDR4.xml'
Created 'cdt-AP-CP02-C1_256M32_DDR4.bin'


cdt_generator.py 227 INFO: Filename: '/home/xym/works/03.qsdk_oem/common/build/ipq/ipq6018/machid_xml/AP-CP01-C4_256M32_DDR3.xml'
Created 'cdt-AP-CP01-C4_256M32_DDR3.bin'

cdt_generator.py 227 INFO: Filename: '/home/xym/works/03.qsdk_oem/common/build/ipq/ipq6018/machid_xml/DB-CP01_256M32_DDR3.xml'
Created 'cdt-DB-CP01_256M32_DDR3.bin'

cdt_generator.py 227 INFO: Filename: '/home/xym/works/03.qsdk_oem/common/build/ipq/ipq6018/machid_xml/AP-CP01-C3_256M32_DDR3.xml'
Created 'cdt-AP-CP01-C3_256M32_DDR3.bin'

cdt_generator.py 227 INFO: Filename: '/home/xym/works/03.qsdk_oem/common/build/ipq/ipq6018/machid_xml/CP-EMU_256M32_DDR3.xml'
Created 'cdt-CP-EMU_256M32_DDR3.bin'


cdt_generator.py 227 INFO: Filename: '/home/xym/works/03.qsdk_oem/common/build/ipq/ipq6018/machid_xml/AP-CP01-C1_256M32_DDR3.xml'
Created 'cdt-AP-CP01-C1_256M32_DDR3.bin'

INFO: Filename: '/home/xym/works/03.qsdk_oem/common/build/ipq/ipq6018/machid_xml/DB-CP02_1024M32_DDR4.xml'
Created 'cdt-DB-CP02_1024M32_DDR4.bin'

cdt_generator.py 227 INFO: Filename: '/home/xym/works/03.qsdk_oem/common/build/ipq/ipq6018/machid_xml/AP-CP03-C1_256M16_DDR3.xml'
Created 'cdt-AP-CP03-C1_256M16_DDR3.bin'


cdt_generator.py 227 INFO: Filename: '/home/xym/works/03.qsdk_oem/common/build/ipq/ipq6018/machid_xml/AP-CP01-C2_256M32_DDR3.xml'
Created 'cdt-AP-CP01-C2_256M32_DDR3.bin'

总结
上面生成：
cdt-AP-CP02-C1_256M32_DDR4.bin
cdt-AP-CP01-C4_256M32_DDR3.bin
cdt-DB-CP01_256M32_DDR3.bin
cdt-AP-CP01-C3_256M32_DDR3.bin
cdt-CP-EMU_256M32_DDR3.bin
cdt-AP-CP01-C1_256M32_DDR3.bin
cdt-DB-CP02_1024M32_DDR4.bin
cdt-AP-CP03-C1_256M16_DDR3.bin
cdt-AP-CP01-C2_256M32_DDR3.bin

接着执行gen_bootconfig()

gen_bootconfig_bin.py -c <chipcode>/common/build/ipq/ipq6018/config.xml -o ./ipq

下面分析gen_bootconfig_bin.py

# 解析<chipcode>/common/build/ipq/ipq6018/config.xml 根据里面的 NAND_PARAMETER 参数

<chipcode>/common/build/ipq/scripts/nand_mbn_generator.py <chipcode>/common/build/ipq/ipq6018/bootconfig/bootconfig.xml nand_raw_bootconfig.bin
也就是生成
nand_raw_bootconfig.bin

然后执行
#rawpart_path ：<chipcode>/common/build/ipq/nand_raw_bootconfig
# nand_bootconfig ：<chipcode>/common/build/ipq/nand_raw_bootconfig.bin
<chipcode>/common/build/ipq/bootconfig_tool -s nand_pagesize -p  nand_pages_per_block -i rawpart_path -o nand_bootconfig
最终生成 <chipcode>/common/build/ipq/nand_raw_bootconfig.bin

打包日志也能看到输出信息

norplusnand
        Nor page size: 256, pages/block: 256, total blocks: 256
        Partition info: /home/xym/works/03.qsdk_oem/common/build/ipq/ipq6018/flash_partition/norplusnand-partition.xml
        Creating user partition ...User partition created
        Creating system partition
...System partition created
        Nor page size: 256, pages/block: 256, total blocks: 256
        Partition info: /home/xym/works/03.qsdk_oem/common/build/ipq/ipq6018/flash_partition/norplusnand-partition.xml
        Creating user partition ...User partition created
        Creating system partition
...System partition created
        Nor page size: 256, pages/block: 256, total blocks: 256
        Partition info: /home/xym/works/03.qsdk_oem/common/build/ipq/ipq6018/flash_partition/norplusnand-4k-partition.xml
        Creating user partition ...User partition created
        Creating system partition
...System partition created
        Nor page size: 256, pages/block: 256, total blocks: 256
        Partition info: /home/xym/works/03.qsdk_oem/common/build/ipq/ipq6018/flash_partition/norplusnand-4k-partition.xml
        Creating user partition ...User partition created
        Creating system partition
...System partition created

接下來執行gen_part()

gen_flash_partition_bin.py -c <chipcode>/common/build/ipq/ipq6018/config.xml -f flash_type -o./ipq

# -c 配置路徑  <chipcode>/common/build/ipq/ipq6018/config.xml
# -o 生成的bin文件输出路径<chipcode>/common/build/ipq/norplusnand-system-partition-ipq6018.bin
# -f 存储类型 nor、tiny-nor、nand、norplusnand、emmc、norplusemmc、tiny-nor-debug
gen_flash_partition.py -c <chipcode>/common/build/ipq/ipq6018/config.xml -o <chipcode>/common/build/ipq/norplusnand-system-partition-ipq6018.bin -f norplusnand

# <partition.xml> :<chipcode>/common/build/ipq/ipq6018/flash_partition/norplusnand-partition.xml
#生成的bin文件输出路径<chipcode>/common/build/ipq/norplusnand-system-partition-ipq6018.bin

python nand_mbn_generator.py <chipcode>/common/build/ipq/ipq6018/flash_partition/norplusnand-partition.xml <chipcode>/common/build/ipq/norplusnand-system-partition-ipq6018.bin



# -s <nor_page_size>
# -p <nor_pages_per_block>
# -b <nor_total_block_count>
# -x <nand_page_size>
# -y <nand_pages_per_block>
# -z <nand_total_block>
# -c 1
# -u <user partition file>  即<chipcode>/common/build/ipq/ipq6018/flash_partition/norplusnand-partition.xml
# -o <output_system_partition> 即 <chipcode>/common/build/ipq/norplusnand-system-partition-ipq6018.bin


partition_tool -s <nor_page_size> -p <nor_pages_per_block> -b
<nor_total_block_count> -x <nand_page_size> -y <nand_pages_per_block> -z
<nand_total_block> -c 1 -u <user partition file> -o <output_system_partition>

# 最终生成的就是
# <chipcode>/common/build/ipq/norplusnand-system-partition-ipq6018.bin

下面執行gen_bootldr 这里没有用到先不分析

下面执行gen_mbn()

elftombn.py -f ./ipq/openwrt-ipq6018-u-boot.elf -o ./ipq/openwtt-ipq6018-u-boot.mbn -v 6

功能就是在uboot前加一堆的头部信息

python /home/xym/works/03.qsdk_oem/./apss_proc/out/meta-scripts/pack_hk.py

python /home/xym/works/03.qsdk_oem/./apss_proc/out/meta-scripts/pack_hk.py
--arch ipq6018
--fltype nand
--srcPath ./ipq
--inImage ./ipq
--outImage ./bin

FIT description: Flashing nand 800 20000
Created:         Mon Aug  8 15:02:29 2022
 Image 0 (script)
  Description:  flash.scr
 Image 1 (sbl1-7656825e10cf17312545f8b52d94205b6eaac2d1)
  Description:  xbl_nand.elf.padded
 Image 2 (mibib-3c2e7176e80a90454c325425fcfb853c9aa3bfa8)
  Description:  nand-system-partition-ipq6018.bin
 Image 3 (bootconfig-f1050e638265203cd2a74f220c37aeaa88edfc7e)
  Description:  bootconfig.bin
 Image 4 (bootconfig1-f1050e638265203cd2a74f220c37aeaa88edfc7e)
  Description:  bootconfig.bin
 Image 5 (tz-7fb7fc3700e39853414a46c5956c80067bd3af08)
  Description:  tz.mbn.padded
 Image 6 (devcfg-6b7479a141ff6e98f3a688383da353b19493bb6a)
  Description:  devcfg.mbn.padded
 Image 7 (rpm-74a70576db432ff372e2a04708088a33347aa910)
  Description:  rpm.mbn.padded
 Image 8 (ddr-AP-CP01-C1_256M32_DDR3-7af74781f6f54650ba9d46278976be3c3251ec73)
  Description:  cdt-AP-CP01-C1_256M32_DDR3.bin.padded
 Image 9 (ddr-AP-CP01-C2_256M32_DDR3-a2e152fee9332a84cf08b4165eb6e192212c4fd3)
  Description:  cdt-AP-CP01-C2_256M32_DDR3.bin.padded
 Image 10 (ddr-AP-CP01-C3_256M32_DDR3-98bafca6d1f45749b69c1e85c2e1c6b712bb06f4)
  Description:  cdt-AP-CP01-C3_256M32_DDR3.bin.padded
 Image 11 (ddr-AP-CP01-C4_256M32_DDR3-8f9fa722877b8ed5fb076dccd45edaaeed101cfb)
  Description:  cdt-AP-CP01-C4_256M32_DDR3.bin.padded
 Image 12 (ddr-AP-CP02-C1_256M32_DDR4-daceb352794a1eec793dfb90ea834deee833b800)
  Description:  cdt-AP-CP02-C1_256M32_DDR4.bin.padded
 Image 13 (ddr-AP-CP03-C1_256M16_DDR3-bd77335a1767981aa0a33fdc731eadc9cfb8a2d3)
  Description:  cdt-AP-CP03-C1_256M16_DDR3.bin.padded
 Image 14 (ddr-DB-CP01_256M32_DDR3-3b924f4df2038aa2013729b4bd512a0f6cd60418)
  Description:  cdt-DB-CP01_256M32_DDR3.bin.padded
 Image 15 (ddr-DB-CP02_1024M32_DDR4-83d3360def025dfb6398a30918da55c07f7efa35)
  Description:  cdt-DB-CP02_1024M32_DDR4.bin.padded
 Image 16 (ddr-CP-EMU_256M32_DDR3-6f4f696eb07d0d7732a965c1313a15d7095fc0b7)
  Description:  cdt-CP-EMU_256M32_DDR3.bin.padded
 Image 17 (u-boot-92820e908aedf960c13e47a3b5656d24c901db7a)
  Description:  openwrt-ipq6018-u-boot.mbn.padded
 Image 18 (ubi-11b222af1220a55fa0028279c31f3cf5f430e279)
  Description:  openwrt-ipq-ipq60xx-ubi-root.img






FIT description: Flashing nand 1000 40000
Created:         Mon Aug  8 15:02:30 2022
 Image 0 (script)
  Description:  flash.scr
 Image 1 (sbl1-7656825e10cf17312545f8b52d94205b6eaac2d1)
  Description:  xbl_nand.elf.padded
 Image 2 (mibib-5fa12ab5572f05adee223a9efed7d0d72c00d9f5)
  Description:  nand-system-partition-ipq6018-m4096-p256KiB.bin
 Image 3 (bootconfig-f1050e638265203cd2a74f220c37aeaa88edfc7e)
  Description:  bootconfig.bin
 Image 4 (bootconfig1-f1050e638265203cd2a74f220c37aeaa88edfc7e)
  Description:  bootconfig.bin
 Image 5 (tz-7fb7fc3700e39853414a46c5956c80067bd3af08)
  Description:  tz.mbn.padded
 Image 6 (devcfg-6b7479a141ff6e98f3a688383da353b19493bb6a)
  Description:  devcfg.mbn.padded
 Image 7 (rpm-74a70576db432ff372e2a04708088a33347aa910)
  Description:  rpm.mbn.padded
 Image 8 (ddr-AP-CP01-C1_256M32_DDR3-7af74781f6f54650ba9d46278976be3c3251ec73)
  Description:  cdt-AP-CP01-C1_256M32_DDR3.bin.padded
 Image 9 (ddr-AP-CP01-C2_256M32_DDR3-a2e152fee9332a84cf08b4165eb6e192212c4fd3)
  Description:  cdt-AP-CP01-C2_256M32_DDR3.bin.padded
 Image 10 (ddr-AP-CP01-C3_256M32_DDR3-98bafca6d1f45749b69c1e85c2e1c6b712bb06f4)
  Description:  cdt-AP-CP01-C3_256M32_DDR3.bin.padded
 Image 11 (ddr-AP-CP01-C4_256M32_DDR3-8f9fa722877b8ed5fb076dccd45edaaeed101cfb)
  Description:  cdt-AP-CP01-C4_256M32_DDR3.bin.padded
 Image 12 (ddr-AP-CP02-C1_256M32_DDR4-daceb352794a1eec793dfb90ea834deee833b800)
  Description:  cdt-AP-CP02-C1_256M32_DDR4.bin.padded
 Image 13 (ddr-AP-CP03-C1_256M16_DDR3-bd77335a1767981aa0a33fdc731eadc9cfb8a2d3)
  Description:  cdt-AP-CP03-C1_256M16_DDR3.bin.padded
 Image 14 (ddr-DB-CP01_256M32_DDR3-3b924f4df2038aa2013729b4bd512a0f6cd60418)
  Description:  cdt-DB-CP01_256M32_DDR3.bin.padded
 Image 15 (ddr-DB-CP02_1024M32_DDR4-83d3360def025dfb6398a30918da55c07f7efa35)
  Description:  cdt-DB-CP02_1024M32_DDR4.bin.padded
 Image 16 (ddr-CP-EMU_256M32_DDR3-6f4f696eb07d0d7732a965c1313a15d7095fc0b7)
  Description:  cdt-CP-EMU_256M32_DDR3.bin.padded
 Image 17 (u-boot-92820e908aedf960c13e47a3b5656d24c901db7a)
  Description:  openwrt-ipq6018-u-boot.mbn.padded
 Image 18 (ubi-0da373cd3b9749774962defe1e859cd23f5da923)
  Description:  openwrt-ipq-ipq60xx-ubi-root-m4096-p256KiB.img



下一步
python /home/xym/works/03.qsdk_oem/.//apss_proc/out/meta-scripts/pack_hk.py
--arch ipq6018
--fltype nand
--srcPath ./ipq
--inImage ./ipq
--outImage ./bin
--image_type hlos   和上面不一样的地方

FIT description: Flashing nand 800 20000
 Image 0 (script)
  Description:  flash.scr
 Image 1 (ubi-11b222af1220a55fa0028279c31f3cf5f430e279)
  Description:  openwrt-ipq-ipq60xx-ubi-root.img



FIT description: Flashing nand 1000 40000
 Image 0 (script)
  Description:  flash.scr
 Image 1 (ubi-0da373cd3b9749774962defe1e859cd23f5da923)
  Description:  openwrt-ipq-ipq60xx-ubi-root-m4096-p256KiB.img



重复上面的所有步骤
生成
norplusnand
emmc
norplusemmc
nor

其它

uboot看门狗

// qsdk\build_dir\host\u-boot-2014.10\arch\powerpc\lib\board.c
#if defined(CONFIG_WATCHDOG)
int init_func_watchdog_init(void)
{
#if defined(CONFIG_MPC85xx)
	init_85xx_watchdog();
#endif
	puts("       Watchdog enabled\n");
	WATCHDOG_RESET();
	return 0;
}

uboot flash和flasherase命令

// qsdk\qca\src\u-boot-2016\common\cmd_flashwrite.c
U_BOOT_CMD(
	flash,       4,      0,      do_flash,
	"flash part_name \n"
	"\tflash part_name load_addr file_size \n",
	"flash the image at load_addr, given file_size in hex\n"
);

U_BOOT_CMD(
	flasherase,       4,      0,      do_flash,
	"flerase part_name \n",
	"erases on flash the given partition \n"
);

flash 0:WIFIFW   # 一个mtd分区
flash wifi_fw    # ubi的卷

U_BOOT_CMD(
	smeminfo,    1,    1,    do_smeminfo,
	"print SMEM FLASH information",
	"\n    - print flash details gathered from SMEM\n"
);

uboot的imxtract命令

U_BOOT_CMD(
	imxtract, 4, 1, do_imgextract,
	"extract a part of a multi-image", imgextract_help_text
);
