高通QSDK 环境搭建
编译环境依賴
sudo apt update
sudo apt upgrade
sudo apt-get install gcc g++ binutils patch bzip2 flex make gettext pkg-config unzip zlib1g-dev libc6-dev subversion libncurses5-dev gawk sharutils curl libxml-parser-perl python-yaml ocaml-nox ocaml ocaml-findlib libssl-dev libfdt-dev repo
sudo apt-get install u-boot-tools libssl1.0-dev libaudit-dev libgtk2.0-dev
sudo apt-get install device-tree-compiler libfdt-dev libc6-i386 libgl1-mesa-dri:i386
资源下载
网页打开高通官网
https://chipcode.qti.qualcomm.com/

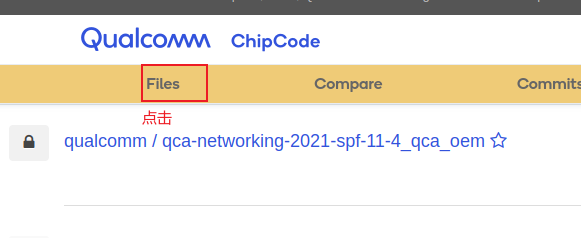

步骤1

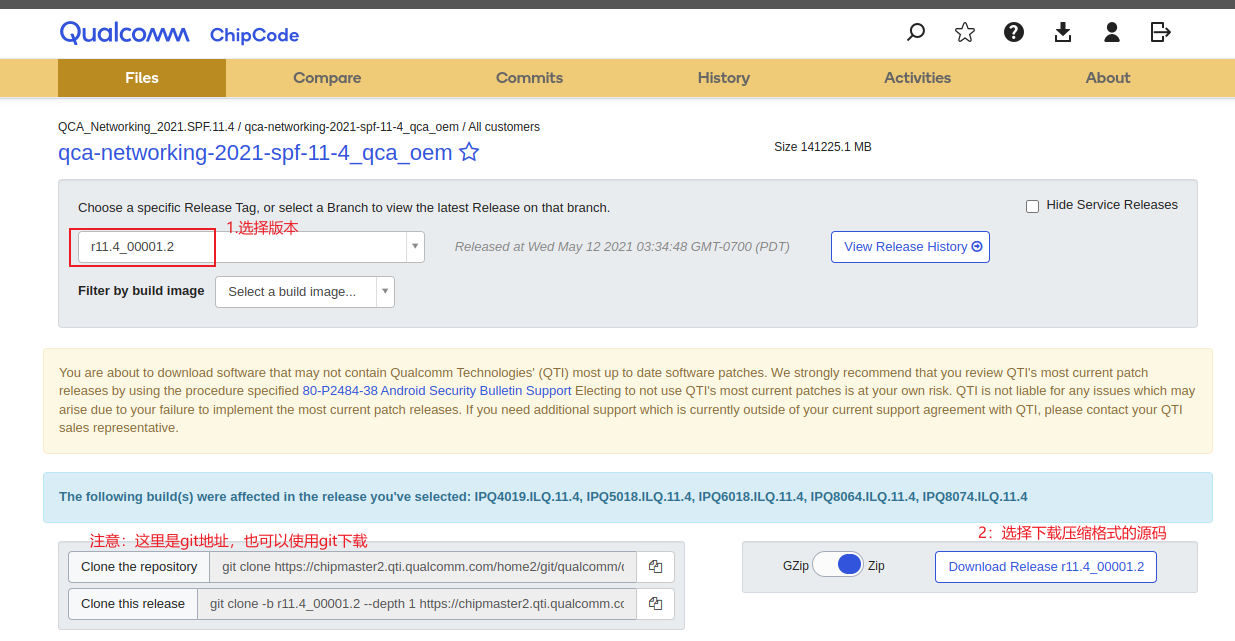

步骤2
步骤3
下载好的固件【qca-networking-2021-spf-11-4_qca_oem-r11.4】
解压
uzip qca-networking-2021-spf-11-4_qca_oem-r11.4_00001.2-577c95df9cd76fb4757e70eb609b4754089e5167.zip刪除掉无用的文件 拷贝文件到上级目录
cd qca-networking-2021-spf-11-4_qca_oem-r11.4_00001.2-577c95df9cd76fb4757e70eb609b4754089e5167 rm -rf BOOT.AK.1.0 BOOT.BF.3.* IPQ8064.ILQ* IPQ4019.ILQ* IPQ8074.ILQ* RPM.AK.1.0 TZ.AK.1.0 TZ.BF.2.7 TZ.BF.4.0.8 WIGIG.TLN* BOOT.BF.3.3.1.1 TZ.WNS.4.0 IPQ5018.ILQ.11.* BTFW.MAPLE.1.0.0 WIGIG.TLN.7.5 cp -rf */* .
执行repo init
repo init -u git://codeaurora.org/quic/qsdk/releases/manifest/qstak -b release -m caf_AU_LINUX_QSDK_NHSS.QSDK.11.4_TARGET_ALL.11.4.6938.7021.xml #如果上面命令出错 执行下面的 repo init -u git://codeaurora.org/quic/qsdk/releases/manifest/qstak -b release -m caf_AU_LINUX_QSDK_NHSS.QSDK.11.4_TARGET_ALL.11.4.6938.7021.xml --repo-url=git://codeaurora.org/tools/repo.git --repo-branch=caf-stable repo sync -j8 --no-tags -qc
备注：需要自行安装repo和全局的git配置
sudo apt-get install repo git config --global user.email "you@example.com" git config --global user.name "youname"
执行完后，到此资源下载完毕
编译
第一次编译
直接执行下面一种即可
./wim_rebuild.sh LM256 # 编译小内存256M # 或者 ./wim_rebuild.sh LM512 # 编译大内存512M # 或者 ./wim_rebuild.sh P 32 # 编译Premium 32bit # 或者 ./wim_rebuild.sh P 64 # 编译Premium 64bit # 或者 ./wim_rebuild.sh E 32 # 编译Enterprise 32bit # 或者 ./wim_rebuild.sh E 64 # 编译Enterprise 64bit
生成的固件目录
qsdk/bin/ipq/
脚本【
wim_rebuild.sh】内容如下：#!/bin/bash CHIP_CODE_DIR=$(cd $(dirname $0) && pwd) QSDK_BUILD_TYPE="NULL" QSDK_BUILD_BIT=32 function usage() { echo "usage" echo -e " [P|E|LM256|LM512] [32|64 ]" echo -e " notice LM256 and LM512 only 32 bit" } function qsdk_generating() { echo "######################## qsdk_generating ##############################" sleep 1s cd $CHIP_CODE_DIR cp -rf apss_proc/out/proprietary/Wifi/qsdk-ieee1905-security/* qsdk cp -rf apss_proc/out/proprietary/Wifi/qsdk-qca-art/* qsdk cp -rf apss_proc/out/proprietary/Wifi/qsdk-qca-wifi/* qsdk cp -rf apss_proc/out/proprietary/Wifi/qsdk-qca-wlan/* qsdk cp -rf wlan_proc/src/components/qca-wifi-fw-src-component-cmn-WLAN.HK.* qsdk/dl/ cp -rf wlan_proc/pkg/wlan_proc/bin/QCA6018/qca-wifi-fw-QCA6018_v1.0-WLAN.HK.* qsdk/dl/ tar xvf cnss_proc/src/components/qca-wifi-fw-src-component-cmn-WLAN.BL.*.tgz -C qsdk/dl tar xvf cnss_proc/src/components/qca-wifi-fw-src-component-halphy_tools-WLAN.BL.*.tgz -C qsdk/dl cp -rf cnss_proc/src/components/* qsdk/dl cp -rf cnss_proc/bin/QCA9888/hw.2/* qsdk/dl cp -rf cnss_proc/bin/AR900B/hw.2/* qsdk/dl cp -rf cnss_proc/bin/QCA9984/hw.1/* qsdk/dl cp -rf cnss_proc/bin/IPQ4019/hw.1/* qsdk/dl cp -rf qca-wifi-fw-AR988* qsdk/dl cp -rf apss_proc/out/proprietary/QSDK-Base/meta-tools/ qsdk cp -rf apss_proc/out/proprietary/QSDK-Base/common-tools/* qsdk/ cp -rf apss_proc/out/proprietary/QSDK-Base/qsdk-qca-nss/* qsdk/ cp -rf apss_proc/out/proprietary/QSDK-Base/qca-lib/* qsdk/ cp -rf apss_proc/out/proprietary/QSDK-Base/qca-mcs-apps/* qsdk cp -rf apss_proc/out/proprietary/QSDK-Base/qca-nss-userspace/* qsdk cp -rf apss_proc/out/proprietary/QSDK-Base/qca-time-services/* qsdk cp -rf apss_proc/out/proprietary/QSDK-Base/qca-qmi-framework/* qsdk cp -rf apss_proc/out/proprietary/QSDK-Base/gpio-debug/* qsdk cp -rf apss_proc/out/proprietary/QSDK-Base/qca-diag/* qsdk cp -rf apss_proc/out/proprietary/QSDK-Base/athtestcmd/* qsdk cp -rf apss_proc/out/proprietary/QSDK-Base/btdaemon/* qsdk cp -rf apss_proc/out/proprietary/QSDK-Base/minidump/* qsdk tar xjvf apss_proc/out/proprietary/QSDK-Base/qca-IOT/qca-IOT.tar.bz2 -C qsdk cp -rf apss_proc/out/proprietary/QSDK-Base/qca-cnss-daemon/* qsdk cp -rf apss_proc/out/proprietary/QSDK-Base/fw-qca-stats/* qsdk cp apss_proc/out/proprietary/QSDK-Base/qca-nss-fw-eip-cp/BIN-EIP197.CP.* qsdk/dl/ sed -i '/QCAHKSWPL_SILICONZ/c\PKG_VERSION:=WLAN.HK.2.5.r4-00622-QCAHKSWPL_SILICONZ-1' qsdk/qca/feeds/qca-cp/net/qca-cyp/Makefile cp -rf apss_proc/out/proprietary/BLUETOPIA/qca-bluetopia/* qsdk } function qsdk_where_ipq() { echo "######################## qsdk_where_ipq ##############################" sleep 1s cd $CHIP_CODE_DIR if [ QSDK_BUILD_TYPE == "E" ];then cp apss_proc/out/proprietary/RBIN-NSS-ENTERPRISE/BIN-NSS.CP* qsdk/dl/ else cp apss_proc/out/proprietary/RBIN-NSS-RETAIL/BIN-NSS.CP* qsdk/dl/ fi } function qsdk_customers_hy_fi_whc_wapid_or_dut_packages() { echo "######################## hy_fi null ##############################" sleep 1s cd $CHIP_CODE_DIR/qsdk #######Premium/ LM HY-FI ####### cp -rf apss_proc/out/proprietary/Hyfi/hyfi/* qsdk ########## Premium/ LM WHC ########### cp -rf apss_proc/out/proprietary/Wifi/qsdk-whc/* qsdk mkdir qsdk/qca/feeds/qca-son-mem-debug/qca-son-mem-debug mv qsdk/qca/feeds/qca-son-mem-debug/Makefile qsdk/qca/feeds/qca-son-mem-debug/Config.in qsdk/qca/feeds/qca-son-mem-debug/qca-son-mem-debug cp -rf apss_proc/out/proprietary/Wifi/qsdk-whcpy/* qsdk # todo ########## Premium/ WAPid ########### #git clone <wapid ChipCode directory> #cd <wapid ChipCode directory> #git checkout r11.4_00001.2 #cd .. #cp -rf <wapid ChipCode directory>/NHSS.QSDK.11.4/apss_proc/out/proprietary/Wapid/qsdk-wapid/* qsdk } function qsdk_update_feeds() { echo "######################## qsdk_update_feeds##############################" sleep 1s cd $CHIP_CODE_DIR/qsdk ./scripts/feeds update -a ./scripts/feeds install -a -f } function qsdk_base_configuration() { echo "######################## qsdk_base_configuration ##############################" sleep 1s cd $CHIP_CODE_DIR/qsdk if [ $QSDK_BUILD_TYPE == "P" ];then if [ $QSDK_BUILD_BIT -eq 32 ];then cp qca/configs/qsdk/ipq_premium.config .config sed -i "s/TARGET_ipq_ipq806x/TARGET_ipq_ipq60xx/g" .config sed -i "s/CONFIG_PACKAGE_qal/#CONFIG_PACKAGE_qal/g" .config mv prebuilt/ipq60xx/ipq_premium/* prebuilt/ipq60xx/ elif [ $QSDK_BUILD_BIT -eq 64 ];then cp qca/configs/qsdk/ipq_premium.config .config sed -i "s/TARGET_ipq_ipq806x/TARGET_ipq_ipq60xx_64/g" .config sed -i "s/CONFIG_PACKAGE_qal/#CONFIG_PACKAGE_qal/g" .config mv prebuilt/ipq60xx_64/ipq_premium/* prebuilt/ipq60xx_64/ fi elif [ $QSDK_BUILD_TYPE == "E" ];then if [ $QSDK_BUILD_BIT -eq 32 ];then cp qca/configs/qsdk/ipq_enterprise.config .config sed -i "s/TARGET_ipq_ipq806x/TARGET_ipq_ipq60xx/g" .config mv prebuilt/ipq60xx/ipq_enterprise/* prebuilt/ipq60xx/ elif [ $QSDK_BUILD_BIT -eq 64 ];then cp qca/configs/qsdk/ipq_enterprise.config .config sed -i "s/TARGET_ipq_ipq806x/TARGET_ipq_ipq60xx_64/g" .config mv prebuilt/ipq60xx_64/ipq_enterprise/* prebuilt/ipq60xx_64/ fi elif [ $QSDK_BUILD_TYPE == "LM256" ];then cp qca/configs/qsdk/ipq_256.config .config sed -i "s/TARGET_ipq_ipq807x/TARGET_ipq_ipq60xx/g" .config mv prebuilt/ipq60xx/ipq_256/* prebuilt/ipq60xx/ elif [ $QSDK_BUILD_TYPE == "LM512" ];then cp qca/configs/qsdk/ipq_512.config .config sed -i "s/TARGET_ipq_ipq807x/TARGET_ipq_ipq60xx/g" .config mv prebuilt/ipq60xx/ipq_512/* prebuilt/ipq60xx/ fi } function qsdk_son_package() { echo "######################## qsdk_son_package ##############################" sleep 1s cd $CHIP_CODE_DIR/qsdk echo "CONFIG_PACKAGE_whc-mesh=n" >> .config echo "CONFIG_PACKAGE_hyfi-mesh=n" >> .config echo "CONFIG_PACKAGE_whc-son=y" >> .config echo "CONFIG_PACKAGE_hyfi-son=y" >> .config echo "CONFIG_PACKAGE_qca-ezmesh-cmn=n" >> .config echo "CONFIG_PACKAGE_qca-ezmesh=n" >> .config echo "CONFIG_PACKAGE_qca-ezmesh-alg=n" >> .config echo "CONFIG_PACKAGE_qca-ezmesh-ctrl=n" >> .config echo "CONFIG_PACKAGE_qca-ezmesh-agent=n" >> .config echo "CONFIG_PACKAGE_qca-ezmesh-agentalg=n" >> .config sed -i "s/@PACKAGE_whc-son/@PACKAGE_whc-map/g" package/feeds/qca_lib/qca-wifison-ext-lib/Makefile } function qsdk_ezmesh_package_full_mode() { echo "######################## qsdk_ezmesh_package_full_mode ##############################" sleep 1s cd $CHIP_CODE_DIR/qsdk echo "CONFIG_PACKAGE_whc-mesh=n" >> .config echo "CONFIG_PACKAGE_hyfi-mesh=n" >> .config echo "CONFIG_PACKAGE_whc-map=y" >> .config echo "CONFIG_PACKAGE_hyfi-map=y" >> .config #Additional configuration to enable ezmesh packages: echo "CONFIG_PACKAGE_qca-ezmesh-cmn=y" >> .config echo "CONFIG_PACKAGE_qca-ezmesh=y" >> .config echo "CONFIG_PACKAGE_qca-ezmesh-alg=y" >> .config echo "CONFIG_PACKAGE_qca-ezmesh-ctrl=n" >> .config echo "CONFIG_PACKAGE_qca-ezmesh-agent=n" >> .config echo "CONFIG_PACKAGE_qca-ezmesh-agentalg=n" >> .config sed -i "s/@PACKAGE_whc-son/@PACKAGE_whc-map/g" package/feeds/qca_lib/qca-wifison-ext-lib/Makefile } function qsdk_ezmesh_package_co_locater_mode() { echo "######################## qsdk_ezmesh_package_co_locater_mode ##############################" sleep 1s cd $CHIP_CODE_DIR/qsdk echo "CONFIG_PACKAGE_whc-mesh=n" >> .config echo "CONFIG_PACKAGE_hyfi-mesh=n" >> .config echo "CONFIG_PACKAGE_whc-map=y" >> .config echo "CONFIG_PACKAGE_hyfi-map=y" >> .config #Additional configuration to enable ezmesh packages: echo "CONFIG_PACKAGE_qca-ezmesh-cmn=y" >> .config echo "CONFIG_PACKAGE_qca-ezmesh-ctrl=y" >> .config echo "CONFIG_PACKAGE_qca-ezmesh-agent=y" >> .config echo "CONFIG_PACKAGE_qca-ezmesh-alg=y" >> .config echo "CONFIG_PACKAGE_qca-ezmesh-agentalg=y" >> .config echo "CONFIG_PACKAGE_qca-ezmesh=n" >> .config sed -i "s/@PACKAGE_whc-son/@PACKAGE_whc-map/g" package/feeds/qca_lib/qca-wifison-ext-lib/Makefile } function qsdk_son_ezmesh_package_full_mode() { echo "######################## qsdk_son_ezmesh_package_full_mode ##############################" sleep 1s cd $CHIP_CODE_DIR/qsdk echo "CONFIG_PACKAGE_whc-mesh=y" >> .config echo "CONFIG_PACKAGE_hyfi-mesh=y" >> .config #Additional configuration to enable ezmesh packages: echo "CONFIG_PACKAGE_qca-ezmesh-cmn=y" >> .config echo "CONFIG_PACKAGE_qca-ezmesh=y" >> .config echo "CONFIG_PACKAGE_qca-ezmesh-alg=y" >> .config } function qsdk_build_env_check() { if [ $# -eq 0 ] then usage return -1 fi if [ $1 == "P" ];then if [ $# -ne 2 ];then echo -e "please input P 32 or P 64 " return -2 fi if [ $2 -eq 32 ];then QSDK_BUILD_TYPE="P" QSDK_BUILD_BIT=32 elif [ $2 -eq 64 ];then QSDK_BUILD_TYPE="P" QSDK_BUILD_BIT=64 else echo -e "please input P 32 or P 64 " return -3 fi elif [ $1 == "E" ];then if [ $# -ne 2 ];then echo -e "please input E 32 or E 64 " return -2 fi if [ $2 -eq 32 ];then QSDK_BUILD_TYPE="E" QSDK_BUILD_BIT=32 elif [ $2 -eq 64 ];then QSDK_BUILD_TYPE="E" QSDK_BUILD_BIT=64 else echo -e "please input E 32 or E 64 " return -3 fi elif [ $1 == "LM256" ];then QSDK_BUILD_TYPE="LM256" elif [ $1 == "LM512" ];then QSDK_BUILD_TYPE="LM512" else usage return -4 fi echo "QSDK_BUILD_TYPE=$QSDK_BUILD_TYPE" echo "QSDK_BUILD_BIT=$QSDK_BUILD_BIT" return 0 } function qsdk_build_start() { qsdk_build_env_check $1 $2 if [ $? -ne 0 ];then echo -e "build error" exit fi cd $CHIP_CODE_DIR/qsdk make clean cd $CHIP_CODE_DIR qsdk_generating qsdk_where_ipq qsdk_customers_hy_fi_whc_wapid_or_dut_packages qsdk_update_feeds qsdk_base_configuration qsdk_son_package #qsdk_ezmesh_package_full_mode #qsdk_ezmesh_package_co_locater_mode #qsdk_son_ezmesh_package_full_mode make defconfig make V=s } qsdk_build_start $1 $2
第二次编译
无需在再次执行脚本，直接进入qsdk目录编译即可
cd qsdk make -j6 V=s
可能遇见的编译问题

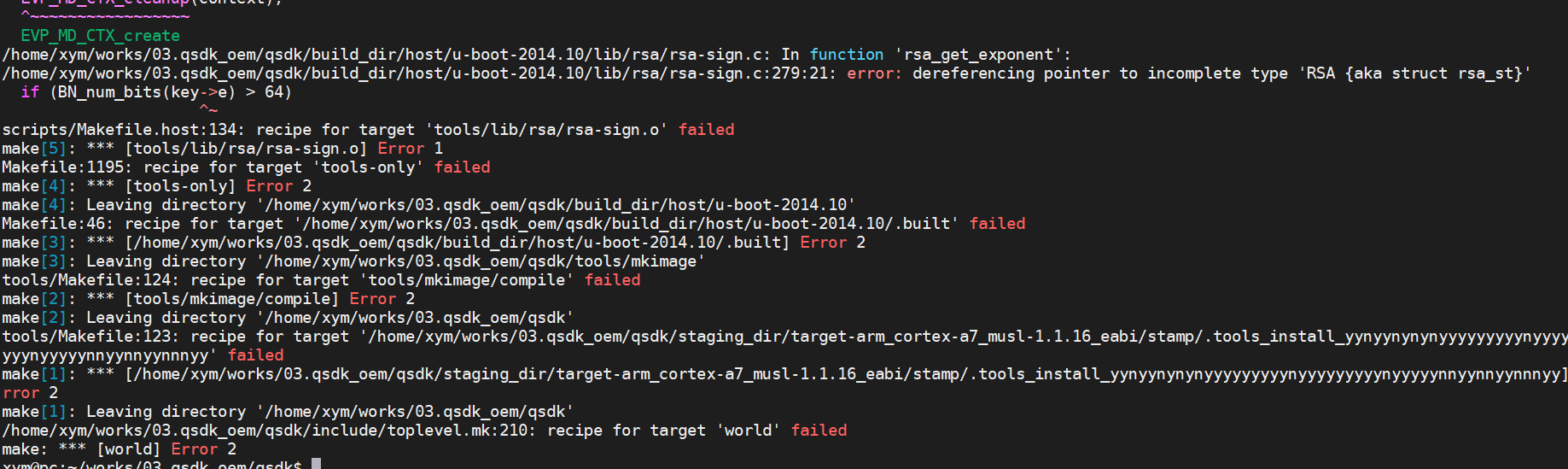

openssl版本问题
解决如下：
sudo apt install libssl1.0-dev
libelf编译出错

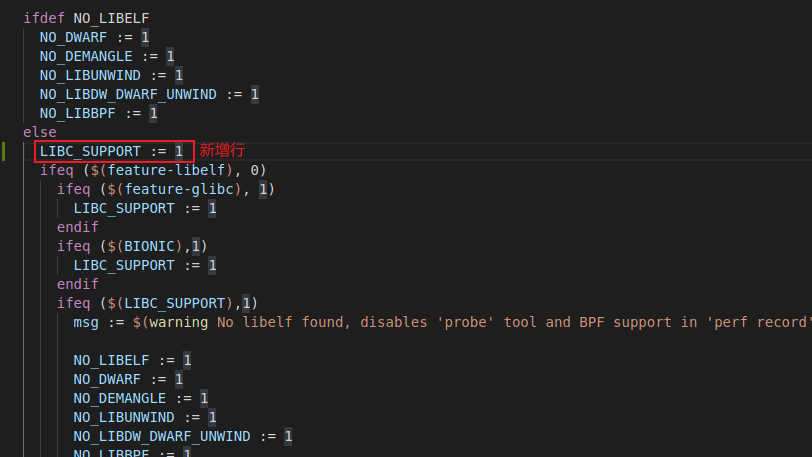

修改【
qsdk/qca/src/linux-4.4/tools/perf/config/Makefile】文件如下
然后执行
make clean make -j1 V=s
打包
整个镜像打包
# 下面命令执行一个，要和上面编译的时候对应 ./wim_pack_single_image.sh LM256 ./wim_pack_single_image.sh LM512 ./wim_pack_single_image.sh E 32 ./wim_pack_single_image.sh E 64 ./wim_pack_single_image.sh P 32 ./wim_pack_single_image.sh P 64
最后生成的镜像路径如下
common/build/binxym@pc:~/works/01.qsdk/QSDK_r11.4_1.2/common/build/bin$ ls -lht total 356M -rw-rw-r-- 1 xym xym 23M 7月 28 11:05 nor-ipq6018-apps.img -rw-rw-r-- 1 xym xym 25M 7月 28 11:05 nor-ipq6018-single.img -rw-rw-r-- 1 xym xym 23M 7月 28 11:05 norplusemmc-ipq6018-apps.img -rw-rw-r-- 1 xym xym 26M 7月 28 11:05 norplusemmc-ipq6018-single.img -rw-rw-r-- 1 xym xym 23M 7月 28 11:05 emmc-ipq6018-apps.img -rw-rw-r-- 1 xym xym 26M 7月 28 11:05 emmc-ipq6018-single.img -rw-rw-r-- 1 xym xym 26M 7月 28 11:05 norplusnand-4k-ipq6018-apps.img -rw-rw-r-- 1 xym xym 26M 7月 28 11:05 norplusnand-ipq6018-apps.img -rw-rw-r-- 1 xym xym 29M 7月 28 11:05 norplusnand-4k-ipq6018-single.img -rw-rw-r-- 1 xym xym 28M 7月 28 11:04 norplusnand-ipq6018-single.img -rw-rw-r-- 1 xym xym 26M 7月 28 11:04 nand-4k-ipq6018-apps.img -rw-rw-r-- 1 xym xym 26M 7月 28 11:04 nand-ipq6018-apps.img -rw-rw-r-- 1 xym xym 29M 7月 28 11:04 nand-4k-ipq6018-single.img -rw-rw-r-- 1 xym xym 29M 7月 28 11:04 nand-ipq6018-single.img
我們最终用的固件如下：
nand-ipq6018-single.img包含所有分内容nand-ipq6018-apps.img：文件系统部分kernel rootfs
脚本【
wim_pack_single_image.sh】内容如下：#!/bin/bash CHIP_CODE_DIR=$(cd $(dirname $0) && pwd) LOCAL_BLD_ENV_BUILD_ID="LM256" LOCAL_QSDK_BUILD_BIT=32 function pack_32() { mkdir -p common/build/ipq mkdir -p apss_proc/out/meta-scripts cp qsdk/qca/src/u-boot-2016/tools/pack.py apss_proc/out/meta-scripts/pack_hk.py #sed -i 's#</linux_root_path>#/</linux_root_path>#' contents.xml #sed -i 's#</windows_root_path>#\\</windows_root_path>#' contents.xml cp qsdk/bin/ipq/openwrt* common/build/ipq cp -r apss_proc/out/proprietary/QSDK-Base/meta-tools apss_proc/out/ cp -rf qsdk/bin/ipq/dtbs/* common/build/ipq/ cp -rf skales/* common/build/ipq/ cp -rf wlan_proc/build/ms/bin/FW_IMAGES/* common/build/ipq/ cp qsdk/staging_dir/host/bin/ubinize common/build/ipq/ cd common/build sed '/debug/d;/packages/d;/"ipq6018_64"/d;/t32/d;/ret_prep_64image/d;/Required/d; /skales/d;/nosmmu/d;/os.system(cmd)/d;/os.chdir(ipq_dir)/d;/atfdir/d;/noac/d;/single-atf/d;/bl31.mbn/d;/ret_pack_64image/d;/ret_pack_apps_64image/d;/64image/d' -i update_common_info.py #E, P, LM256, or LM512 export BLD_ENV_BUILD_ID=$LOCAL_BLD_ENV_BUILD_ID python update_common_info.py } function pack_64() { cd $CHIP_CODE_DIR mkdir -p common/build/ipq_x64 mkdir -p apss_proc/out/meta-scripts cp qsdk/qca/src/u-boot-2016/tools/pack.py apss_proc/out/meta-scripts/pack_hk.py sed -i 's#</linux_root_path>#/</linux_root_path>#' contents.xml sed -i 's#</windows_root_path>#\\</windows_root_path>#' contents.xml cp qsdk/bin/ipq/openwrt* common/build/ipq_x64 #copy the saved openwrt-ipq6018-u-boot*.elf from the 32-bit build to: common/build/ipq_x64 cp -r apss_proc/out/proprietary/QSDK-Base/meta-tools apss_proc/out/ cp -rf qsdk/bin/ipq/dtbs/* common/build/ipq_x64/ cp -rf skales/* common/build/ipq_x64/ cp -rf wlan_proc/build/ms/bin/FW_IMAGES/* common/build/ipq_x64 cp qsdk/staging_dir/host/bin/ubinize common/build/ipq_x64 cd common/build sed -i 's/\.\/ipq/\.\/ipq_x64/g' update_common_info.py sed -i 's/\.\/ipq_x64_x64/\.\/ipq_x64/g' update_common_info.py sed '/debug/d;/packages/d;/"ipq6018"/d;/t32/d;/ret_prep_32image/d;/Required/d;/nosmmu/d;/os.system(cmd)/d;/skales/d;/os.chdir(ipq_dir)/d;/atfdir/d;/noac/d;/single-atf/d;/bl31.mbn/d;/ret_pack_32image/d;/ret_pack_apps_32image/d;/32image/d' -i update_common_info.py export BLD_ENV_BUILD_ID=$LOCAL_BLD_ENV_BUILD_ID python update_common_info.py } function usage() { echo "usage" echo -e " [P|E|LM256|LM512] [32|64 ]" echo -e " notice LM256 and LM512 only 32 bit" } if [ $# -eq 0 ] then usage exit fi if [ $1 == "E" ]||[ $1 == "P" ];then if [ $# -ne 2 ] then usage exit fi if [ $2 -eq 32 ];then LOCAL_BLD_ENV_BUILD_ID=$1 LOCAL_QSDK_BUILD_BIT=32 elif [ $2 -eq 64 ];then LOCAL_BLD_ENV_BUILD_ID=$1 LOCAL_QSDK_BUILD_BIT=64 else usage exit fi else if [ $1 == "LM256" ] || [ $1 == "LM512" ];then LOCAL_BLD_ENV_BUILD_ID=$1 LOCAL_QSDK_BUILD_BIT=32 else usage exit fi fi echo "***********************packing ipq6018 image start***********************" echo "LOCAL_BLD_ENV_BUILD_ID=$LOCAL_BLD_ENV_BUILD_ID" echo "LOCAL_QSDK_BUILD_BIT =$LOCAL_QSDK_BUILD_BIT" echo "qsdk chip code dir : $CHIP_CODE_DIR" cd $CHIP_CODE_DIR rm common/build/ipq -rf rm apss_proc/out/meta-scripts -rf if [ $LOCAL_QSDK_BUILD_BIT -eq 32 ];then pack_32 else pack_64 fi sudo cp $CHIP_CODE_DIR/common/build/bin/nand-ipq6018-single.img ~/tftpboot -f ls ~/tftpboot/*single.img -l echo "***********************packing ipq6018 image end***********************"
wifi_fw单独打包./wim_pack_wifi_fw.sh
脚本【wim_pack_wifi_fw.sh】内容如下
#!/bin/bash CHIP_CODE_DIR=$(cd $(dirname $0) && pwd) echo "qsdk chip code dir : $CHIP_CODE_DIR" echo "***********************packing wifi_fw start***********************" cd $CHIP_CODE_DIR rm fwtemp -rf mkdir -p fwtemp cp -rfv wlan_proc/pkg/wlan_proc/bin/QCA6018/qca-wifi-fw-QCA6018_v1.0-WLAN.HK.*.tar.bz2 fwtemp cd fwtemp tar -xvf qca-wifi-fw-QCA6018_v1.0-WLAN.HK.*.tar.bz2 rm staging_dir -rf mkdir staging_dir cp -rfv qca-wifi-fw-WLAN.HK.*/PIL_IMAGES/* staging_dir cp -rfv qca-wifi-fw-WLAN.HK.*/bdwlan* staging_dir cp $CHIP_CODE_DIR/common/build/mksquashfs4 ./ -f rm wifi_fw_squashfs.img wifi_fw.squashfs -f ./mksquashfs4 staging_dir/ wifi_fw.squashfs -nopad -noappend -root-owned -comp xz -Xpreset 9 -Xe -Xlc 0 -Xlp 2 -Xpb 2 -Xbcj arm -b 256k -processors 1 dd if=wifi_fw.squashfs of=wifi_fw_squashfs.img bs=2k conv=sync sudo cp wifi_fw_squashfs.img ~/tftpboot/ -f ls ~/tftpboot/wifi_fw_squashfs.img -l echo "***********************packing wifi_fw end***********************"
下载
整个镜像文件下载
set ipaddr 192.168.1.11
set serverip 192.168.1.xx
ping ${serverip}
set bootargs console=ttyMSM0,115200n8
tftpboot nand-ipq6018-single.img
imgaddr=$fileaddr && source $imgaddr:script
注意：需要自己提前拷貝目標镜像文件到tftp服务器
mtd16分区(rootfs)单独下载
使用网页更新nand-ipq6018-apps.img
FW_WIFI 固件单独下载
tftpboot wifi_fw_squashfs.img
flash wifi_fw
ipk软件安装
需要安裝的软件需要手动拷贝到硬件的/tmp目录下
bluetopia 安装
32bit 软件包位置
qsdk/prebuilt/ipq60xx/bluetopia_4.2.1.c1_13-1_ipq.ipk64bit 软件包位置
qsdk/prebuilt/ipq60xx_64/bluetopia_4.2.1.c1_13-1_ipq.ipk
自行拷贝到板子的
/tmp目录下安装opkg install bluetopia_4.2.1.c1_13-1_ipq.ipk
SON package安装
32bit 软件包位置
qsdk/prebuilt/ipq60xx/qca-hyd-init_ge474d2e-1_ipq.ipk qsdk/prebuilt/ipq60xx/qca-hyd-son_ge474d2e-1_ipq.ipk
64bit 软件包位置
qsdk/prebuilt/ipq60xx_64/qca-hyd-init_ge474d2e-1_ipq.ipk qsdk/prebuilt/ipq60xx_64/qca-hyd-son_ge474d2e-1_ipq.ipk
自行拷贝到板子的
/tmp目录下安装opkg install qca-hyd-init_ge474d2e-1_ipq.ipk opkg install qca-hyd-son_ge474d2e-1_ipq.ipk
EZMESH package 安装
32bit 软件包位置
# To support Full mode: qsdk/prebuilt/ipq60xx/qca-ezmesh-cmn_ge474d2e-1_ipq.ipk qsdk/prebuilt/ipq60xx/qca-ezmesh_ge474d2e-1_ipq.ipk qsdk/prebuilt/ipq60xx/qca-ezmesh-alg_ge474d2e-1_ipq.ipk # To support Co-located mode: qsdk/prebuilt/ipq60xx/qca-ezmesh-cmn_ge474d2e-1_ipq.ipk qsdk/prebuilt/ipq60xx/qca-ezmesh-ctrl_ge474d2e-1_ipq.ipk qsdk/prebuilt/ipq60xx/qca-ezmesh-agent_ge474d2e-1_ipq.ipk qsdk/prebuilt/ipq60xx/qca-ezmesh-alg_ge474d2e-1_ipq.ipk qsdk/prebuilt/ipq60xx/qca-ezmesh-agentalg_ge474d2e-1_ipq.ipk
64bit 软件包位置
# To support Full mode: qsdk/prebuilt/ipq60xx_64/qca-ezmesh-cmn_ge474d2e-1_ipq.ipk qsdk/prebuilt/ipq60xx_64/qca-ezmesh_ge474d2e-1_ipq.ipk qsdk/prebuilt/ipq60xx_64/qca-ezmesh-alg_ge474d2e-1_ipq.ipk # To support Co-located mode: qsdk/prebuilt/ipq60xx_64/qca-ezmesh-cmn_ge474d2e-1_ipq.ipk qsdk/prebuilt/ipq60xx_64/qca-ezmesh-ctrl_ge474d2e-1_ipq.ipk qsdk/prebuilt/ipq60xx_64/qca-ezmesh-agent_ge474d2e-1_ipq.ipk qsdk/prebuilt/ipq60xx_64/qca-ezmesh-alg_ge474d2e-1_ipq.ipk qsdk/prebuilt/ipq60xx_64/qca-ezmesh-agentalg_ge474d2e-1_ipq.ipk
自行拷贝到板子的
/tmp目录下安装# To support Full mode: opkg install qca-ezmesh-cmn_ge474d2e-1_ipq.ipk opkg install qca-ezmesh_ge474d2e-1_ipq.ipk opkg install qca-ezmesh-alg_ge474d2e-1_ipq.ipk # To support Co-located mode: opkg install qca-ezmesh-cmn_ge474d2e-1_ipq.ipk opkg install qca-ezmesh-ctrl_ge474d2e-1_ipq.ipk opkg install qca-ezmesh-agent_ge474d2e-1_ipq.ipk opkg install qca-ezmesh-alg_ge474d2e-1_ipq.ipk opkg install qca-ezmesh-agentalg_ge474d2e-1_ipq.ipk
注意：ge474d2e 是git的提交id 有可能会不一样
守护进程相关
SON package
ln -s /usr/sbin/wsplcd-son /usr/sbin/wsplcd ln -s /usr/sbin/hyd-son /usr/sbin/hyd
EZMESH package
ln -s /usr/sbin/wsplcd-map /usr/sbin/wsplcd
