高通QSDK nl80211框架
该文章介绍了应用层通过NL80211的libnl库，和底层驱动交互的过程。并以高通wifitool和cfg80211tool 运行机制进行举例说明。

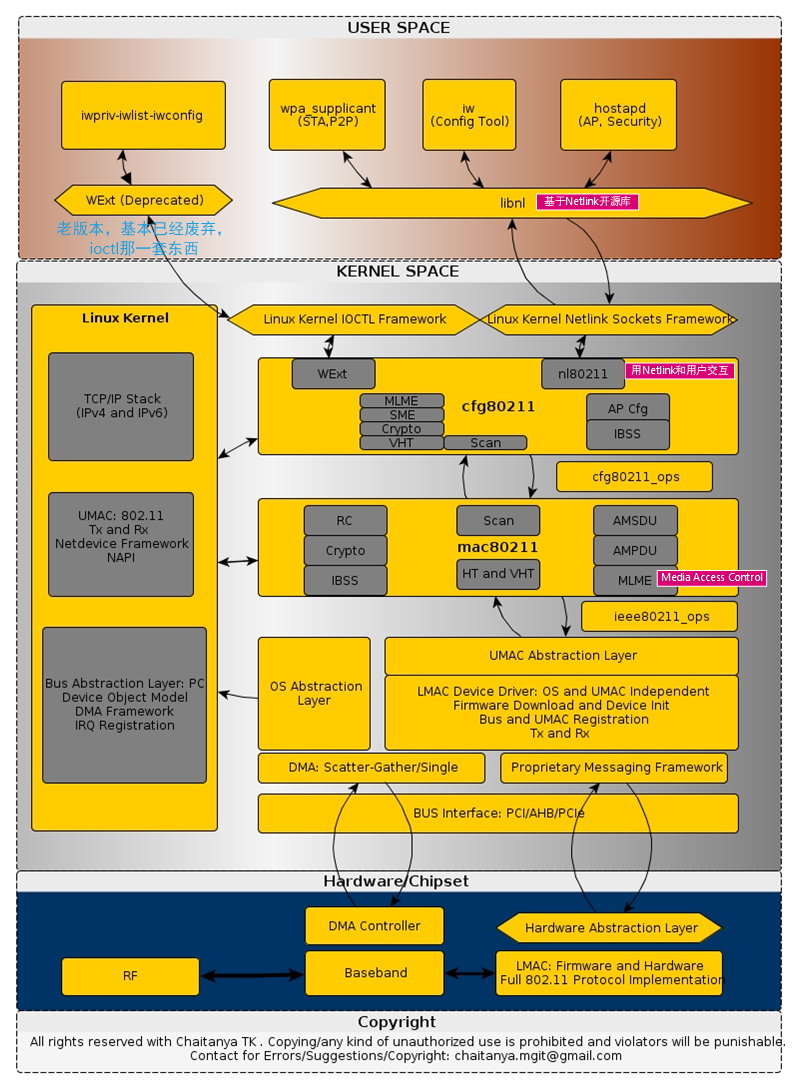

NL80211机制
应用层使用nl消息发送NL80211_CMD_xx到驱动层，驱动根据NL80211_CMD_xx，找到对应的ops调用。在高通QSDK中，像wifitool、cfg80211tool、wpa_supplicant等很多工具都是基于nl消息。如下图所示：
套路如下
创建socket和内核联系
#define WIFI_NL80211_CMD_SOCK_ID DEFAULT_NL80211_CMD_SOCK_ID //777 #define WIFI_NL80211_EVENT_SOCK_ID DEFAULT_NL80211_EVENT_SOCK_ID //778 struct socket_context sock_ctx; sock_ctx.cfg80211 = 1; init_socket_context(&sock_ctx, WIFI_NL80211_CMD_SOCK_ID, WIFI_NL80211_EVENT_SOCK_ID);
首先创建nl消息，携带NL80211_CMD_xx，默认的命令如下
qca/src/linux-4.4/user_headers/include/linux/nl80211.h/enum nl80211_commandsenum nl80211_commands { /* don't change the order or add anything between, this is ABI! */ NL80211_CMD_UNSPEC, NL80211_CMD_GET_WIPHY, /* can dump */ NL80211_CMD_SET_WIPHY, NL80211_CMD_NEW_WIPHY, NL80211_CMD_DEL_WIPHY, NL80211_CMD_GET_INTERFACE, /* can dump */ NL80211_CMD_SET_INTERFACE, NL80211_CMD_NEW_INTERFACE, NL80211_CMD_DEL_INTERFACE, NL80211_CMD_GET_KEY, NL80211_CMD_SET_KEY, NL80211_CMD_NEW_KEY, NL80211_CMD_DEL_KEY, NL80211_CMD_GET_BEACON, NL80211_CMD_SET_BEACON, NL80211_CMD_START_AP, NL80211_CMD_NEW_BEACON = NL80211_CMD_START_AP, NL80211_CMD_STOP_AP, NL80211_CMD_DEL_BEACON = NL80211_CMD_STOP_AP, NL80211_CMD_GET_STATION, NL80211_CMD_SET_STATION, NL80211_CMD_NEW_STATION, NL80211_CMD_DEL_STATION, NL80211_CMD_GET_MPATH, NL80211_CMD_SET_MPATH, NL80211_CMD_NEW_MPATH, NL80211_CMD_DEL_MPATH, NL80211_CMD_SET_BSS, NL80211_CMD_SET_REG, NL80211_CMD_REQ_SET_REG, NL80211_CMD_GET_MESH_CONFIG, NL80211_CMD_SET_MESH_CONFIG, NL80211_CMD_SET_MGMT_EXTRA_IE /* reserved; not used */, NL80211_CMD_GET_REG, NL80211_CMD_GET_SCAN, NL80211_CMD_TRIGGER_SCAN, NL80211_CMD_NEW_SCAN_RESULTS, NL80211_CMD_SCAN_ABORTED, NL80211_CMD_REG_CHANGE, NL80211_CMD_AUTHENTICATE, NL80211_CMD_ASSOCIATE, NL80211_CMD_DEAUTHENTICATE, NL80211_CMD_DISASSOCIATE, NL80211_CMD_MICHAEL_MIC_FAILURE, NL80211_CMD_REG_BEACON_HINT, NL80211_CMD_JOIN_IBSS, NL80211_CMD_LEAVE_IBSS, NL80211_CMD_TESTMODE, NL80211_CMD_CONNECT, NL80211_CMD_ROAM, NL80211_CMD_DISCONNECT, NL80211_CMD_SET_WIPHY_NETNS, NL80211_CMD_GET_SURVEY, NL80211_CMD_NEW_SURVEY_RESULTS, NL80211_CMD_SET_PMKSA, NL80211_CMD_DEL_PMKSA, NL80211_CMD_FLUSH_PMKSA, NL80211_CMD_REMAIN_ON_CHANNEL, NL80211_CMD_CANCEL_REMAIN_ON_CHANNEL, NL80211_CMD_SET_TX_BITRATE_MASK, NL80211_CMD_REGISTER_FRAME, NL80211_CMD_REGISTER_ACTION = NL80211_CMD_REGISTER_FRAME, NL80211_CMD_FRAME, NL80211_CMD_ACTION = NL80211_CMD_FRAME, NL80211_CMD_FRAME_TX_STATUS, NL80211_CMD_ACTION_TX_STATUS = NL80211_CMD_FRAME_TX_STATUS, NL80211_CMD_SET_POWER_SAVE, NL80211_CMD_GET_POWER_SAVE, NL80211_CMD_SET_CQM, NL80211_CMD_NOTIFY_CQM, NL80211_CMD_SET_CHANNEL, NL80211_CMD_SET_WDS_PEER, NL80211_CMD_FRAME_WAIT_CANCEL, NL80211_CMD_JOIN_MESH, NL80211_CMD_LEAVE_MESH, NL80211_CMD_UNPROT_DEAUTHENTICATE, NL80211_CMD_UNPROT_DISASSOCIATE, NL80211_CMD_NEW_PEER_CANDIDATE, NL80211_CMD_GET_WOWLAN, NL80211_CMD_SET_WOWLAN, NL80211_CMD_START_SCHED_SCAN, NL80211_CMD_STOP_SCHED_SCAN, NL80211_CMD_SCHED_SCAN_RESULTS, NL80211_CMD_SCHED_SCAN_STOPPED, NL80211_CMD_SET_REKEY_OFFLOAD, NL80211_CMD_PMKSA_CANDIDATE, NL80211_CMD_TDLS_OPER, NL80211_CMD_TDLS_MGMT, NL80211_CMD_UNEXPECTED_FRAME, NL80211_CMD_PROBE_CLIENT, NL80211_CMD_REGISTER_BEACONS, NL80211_CMD_UNEXPECTED_4ADDR_FRAME, NL80211_CMD_SET_NOACK_MAP, NL80211_CMD_CH_SWITCH_NOTIFY, NL80211_CMD_START_P2P_DEVICE, NL80211_CMD_STOP_P2P_DEVICE, NL80211_CMD_CONN_FAILED, NL80211_CMD_SET_MCAST_RATE, NL80211_CMD_SET_MAC_ACL, NL80211_CMD_RADAR_DETECT, NL80211_CMD_GET_PROTOCOL_FEATURES, NL80211_CMD_UPDATE_FT_IES, NL80211_CMD_FT_EVENT, NL80211_CMD_CRIT_PROTOCOL_START, NL80211_CMD_CRIT_PROTOCOL_STOP, NL80211_CMD_GET_COALESCE, NL80211_CMD_SET_COALESCE, NL80211_CMD_CHANNEL_SWITCH, NL80211_CMD_VENDOR, NL80211_CMD_SET_QOS_MAP, NL80211_CMD_ADD_TX_TS, NL80211_CMD_DEL_TX_TS, NL80211_CMD_GET_MPP, NL80211_CMD_JOIN_OCB, NL80211_CMD_LEAVE_OCB, NL80211_CMD_CH_SWITCH_STARTED_NOTIFY, NL80211_CMD_TDLS_CHANNEL_SWITCH, NL80211_CMD_TDLS_CANCEL_CHANNEL_SWITCH, NL80211_CMD_WIPHY_REG_CHANGE, NL80211_CMD_ABORT_SCAN, NL80211_CMD_START_NAN, NL80211_CMD_STOP_NAN, NL80211_CMD_ADD_NAN_FUNCTION, NL80211_CMD_DEL_NAN_FUNCTION, NL80211_CMD_CHANGE_NAN_CONFIG, NL80211_CMD_NAN_MATCH, NL80211_CMD_SET_MULTICAST_TO_UNICAST, NL80211_CMD_UPDATE_CONNECT_PARAMS, NL80211_CMD_SET_PMK, NL80211_CMD_DEL_PMK, NL80211_CMD_PORT_AUTHORIZED, NL80211_CMD_RELOAD_REGDB, NL80211_CMD_EXTERNAL_AUTH, NL80211_CMD_STA_OPMODE_CHANGED, NL80211_CMD_CONTROL_PORT_FRAME, NL80211_CMD_GET_FTM_RESPONDER_STATS, NL80211_CMD_PEER_MEASUREMENT_START, NL80211_CMD_PEER_MEASUREMENT_RESULT, NL80211_CMD_PEER_MEASUREMENT_COMPLETE, NL80211_CMD_NOTIFY_RADAR, NL80211_CMD_UPDATE_OWE_INFO, NL80211_CMD_PROBE_MESH_LINK, NL80211_CMD_SET_FILS_AAD, /* add new commands above here */ /* used to define NL80211_CMD_MAX below */ __NL80211_CMD_AFTER_LAST, NL80211_CMD_MAX = __NL80211_CMD_AFTER_LAST - 1 };
这些命令对应的ops如下
qca/src/linux-4.4/net/wireless/nl80211.c/：static const struct genl_ops nl80211_ops[] = { { .cmd = NL80211_CMD_GET_WIPHY, .doit = nl80211_get_wiphy, .dumpit = nl80211_dump_wiphy, .done = nl80211_dump_wiphy_done, .policy = nl80211_policy, /* can be retrieved by unprivileged users */ .internal_flags = NL80211_FLAG_NEED_WIPHY | NL80211_FLAG_NEED_RTNL, }, { .cmd = NL80211_CMD_SET_WIPHY, .doit = nl80211_set_wiphy, .policy = nl80211_policy, .flags = GENL_ADMIN_PERM, .internal_flags = NL80211_FLAG_NEED_RTNL, }, { .cmd = NL80211_CMD_GET_INTERFACE, .doit = nl80211_get_interface, .dumpit = nl80211_dump_interface, .policy = nl80211_policy, /* can be retrieved by unprivileged users */ .internal_flags = NL80211_FLAG_NEED_WDEV | NL80211_FLAG_NEED_RTNL, }, { .cmd = NL80211_CMD_SET_INTERFACE, .doit = nl80211_set_interface, .policy = nl80211_policy, .flags = GENL_ADMIN_PERM, .internal_flags = NL80211_FLAG_NEED_NETDEV | NL80211_FLAG_NEED_RTNL, }, { .cmd = NL80211_CMD_NEW_INTERFACE, .doit = nl80211_new_interface, .policy = nl80211_policy, .flags = GENL_ADMIN_PERM, .internal_flags = NL80211_FLAG_NEED_WIPHY | NL80211_FLAG_NEED_RTNL, }, { .cmd = NL80211_CMD_DEL_INTERFACE, .doit = nl80211_del_interface, .policy = nl80211_policy, .flags = GENL_ADMIN_PERM, .internal_flags = NL80211_FLAG_NEED_WDEV | NL80211_FLAG_NEED_RTNL, }, { .cmd = NL80211_CMD_GET_KEY, .doit = nl80211_get_key, .policy = nl80211_policy, .flags = GENL_ADMIN_PERM, .internal_flags = NL80211_FLAG_NEED_NETDEV_UP | NL80211_FLAG_NEED_RTNL, }, { .cmd = NL80211_CMD_SET_KEY, .doit = nl80211_set_key, .policy = nl80211_policy, .flags = GENL_ADMIN_PERM, .internal_flags = NL80211_FLAG_NEED_NETDEV_UP | NL80211_FLAG_NEED_RTNL | NL80211_FLAG_CLEAR_SKB, }, { .cmd = NL80211_CMD_NEW_KEY, .doit = nl80211_new_key, .policy = nl80211_policy, .flags = GENL_ADMIN_PERM, .internal_flags = NL80211_FLAG_NEED_NETDEV_UP | NL80211_FLAG_NEED_RTNL | NL80211_FLAG_CLEAR_SKB, }, { .cmd = NL80211_CMD_DEL_KEY, .doit = nl80211_del_key, .policy = nl80211_policy, .flags = GENL_ADMIN_PERM, .internal_flags = NL80211_FLAG_NEED_NETDEV_UP | NL80211_FLAG_NEED_RTNL, }, { .cmd = NL80211_CMD_SET_BEACON, .policy = nl80211_policy, .flags = GENL_ADMIN_PERM, .doit = nl80211_set_beacon, .internal_flags = NL80211_FLAG_NEED_NETDEV_UP | NL80211_FLAG_NEED_RTNL, }, { .cmd = NL80211_CMD_START_AP, .policy = nl80211_policy, .flags = GENL_ADMIN_PERM, .doit = nl80211_start_ap, .internal_flags = NL80211_FLAG_NEED_NETDEV_UP | NL80211_FLAG_NEED_RTNL, }, { .cmd = NL80211_CMD_STOP_AP, .policy = nl80211_policy, .flags = GENL_ADMIN_PERM, .doit = nl80211_stop_ap, .internal_flags = NL80211_FLAG_NEED_NETDEV_UP | NL80211_FLAG_NEED_RTNL, }, { .cmd = NL80211_CMD_GET_STATION, .doit = nl80211_get_station, .dumpit = nl80211_dump_station, .policy = nl80211_policy, .internal_flags = NL80211_FLAG_NEED_NETDEV | NL80211_FLAG_NEED_RTNL, }, { .cmd = NL80211_CMD_SET_STATION, .doit = nl80211_set_station, .policy = nl80211_policy, .flags = GENL_ADMIN_PERM, .internal_flags = NL80211_FLAG_NEED_NETDEV_UP | NL80211_FLAG_NEED_RTNL, }, { .cmd = NL80211_CMD_NEW_STATION, .doit = nl80211_new_station, .policy = nl80211_policy, .flags = GENL_ADMIN_PERM, .internal_flags = NL80211_FLAG_NEED_NETDEV_UP | NL80211_FLAG_NEED_RTNL, }, { .cmd = NL80211_CMD_DEL_STATION, .doit = nl80211_del_station, .policy = nl80211_policy, .flags = GENL_ADMIN_PERM, .internal_flags = NL80211_FLAG_NEED_NETDEV_UP | NL80211_FLAG_NEED_RTNL, }, { .cmd = NL80211_CMD_GET_MPATH, .doit = nl80211_get_mpath, .dumpit = nl80211_dump_mpath, .policy = nl80211_policy, .flags = GENL_ADMIN_PERM, .internal_flags = NL80211_FLAG_NEED_NETDEV_UP | NL80211_FLAG_NEED_RTNL, }, { .cmd = NL80211_CMD_GET_MPP, .doit = nl80211_get_mpp, .dumpit = nl80211_dump_mpp, .policy = nl80211_policy, .flags = GENL_ADMIN_PERM, .internal_flags = NL80211_FLAG_NEED_NETDEV_UP | NL80211_FLAG_NEED_RTNL, }, { .cmd = NL80211_CMD_SET_MPATH, .doit = nl80211_set_mpath, .policy = nl80211_policy, .flags = GENL_ADMIN_PERM, .internal_flags = NL80211_FLAG_NEED_NETDEV_UP | NL80211_FLAG_NEED_RTNL, }, { .cmd = NL80211_CMD_NEW_MPATH, .doit = nl80211_new_mpath, .policy = nl80211_policy, .flags = GENL_ADMIN_PERM, .internal_flags = NL80211_FLAG_NEED_NETDEV_UP | NL80211_FLAG_NEED_RTNL, }, { .cmd = NL80211_CMD_DEL_MPATH, .doit = nl80211_del_mpath, .policy = nl80211_policy, .flags = GENL_ADMIN_PERM, .internal_flags = NL80211_FLAG_NEED_NETDEV_UP | NL80211_FLAG_NEED_RTNL, }, { .cmd = NL80211_CMD_SET_BSS, .doit = nl80211_set_bss, .policy = nl80211_policy, .flags = GENL_ADMIN_PERM, .internal_flags = NL80211_FLAG_NEED_NETDEV_UP | NL80211_FLAG_NEED_RTNL, }, { .cmd = NL80211_CMD_GET_REG, .doit = nl80211_get_reg_do, .dumpit = nl80211_get_reg_dump, .policy = nl80211_policy, .internal_flags = NL80211_FLAG_NEED_RTNL, /* can be retrieved by unprivileged users */ }, #ifdef CONFIG_CFG80211_CRDA_SUPPORT { .cmd = NL80211_CMD_SET_REG, .doit = nl80211_set_reg, .policy = nl80211_policy, .flags = GENL_ADMIN_PERM, .internal_flags = NL80211_FLAG_NEED_RTNL, }, #endif { .cmd = NL80211_CMD_REQ_SET_REG, .doit = nl80211_req_set_reg, .policy = nl80211_policy, .flags = GENL_ADMIN_PERM, }, { .cmd = NL80211_CMD_GET_MESH_CONFIG, .doit = nl80211_get_mesh_config, .policy = nl80211_policy, /* can be retrieved by unprivileged users */ .internal_flags = NL80211_FLAG_NEED_NETDEV_UP | NL80211_FLAG_NEED_RTNL, }, { .cmd = NL80211_CMD_SET_MESH_CONFIG, .doit = nl80211_update_mesh_config, .policy = nl80211_policy, .flags = GENL_ADMIN_PERM, .internal_flags = NL80211_FLAG_NEED_NETDEV_UP | NL80211_FLAG_NEED_RTNL, }, { .cmd = NL80211_CMD_TRIGGER_SCAN, .doit = nl80211_trigger_scan, .policy = nl80211_policy, .flags = GENL_ADMIN_PERM, .internal_flags = NL80211_FLAG_NEED_WDEV_UP | NL80211_FLAG_NEED_RTNL, }, { .cmd = NL80211_CMD_ABORT_SCAN, .doit = nl80211_abort_scan, .policy = nl80211_policy, .flags = GENL_ADMIN_PERM, .internal_flags = NL80211_FLAG_NEED_WDEV_UP | NL80211_FLAG_NEED_RTNL, }, { .cmd = NL80211_CMD_GET_SCAN, .policy = nl80211_policy, .dumpit = nl80211_dump_scan, }, { .cmd = NL80211_CMD_START_SCHED_SCAN, .doit = nl80211_start_sched_scan, .policy = nl80211_policy, .flags = GENL_ADMIN_PERM, .internal_flags = NL80211_FLAG_NEED_NETDEV_UP | NL80211_FLAG_NEED_RTNL, }, { .cmd = NL80211_CMD_STOP_SCHED_SCAN, .doit = nl80211_stop_sched_scan, .policy = nl80211_policy, .flags = GENL_ADMIN_PERM, .internal_flags = NL80211_FLAG_NEED_NETDEV_UP | NL80211_FLAG_NEED_RTNL, }, { .cmd = NL80211_CMD_AUTHENTICATE, .doit = nl80211_authenticate, .policy = nl80211_policy, .flags = GENL_ADMIN_PERM, .internal_flags = NL80211_FLAG_NEED_NETDEV_UP | NL80211_FLAG_NEED_RTNL | NL80211_FLAG_CLEAR_SKB, }, { .cmd = NL80211_CMD_ASSOCIATE, .doit = nl80211_associate, .policy = nl80211_policy, .flags = GENL_ADMIN_PERM, .internal_flags = NL80211_FLAG_NEED_NETDEV_UP | NL80211_FLAG_NEED_RTNL, }, { .cmd = NL80211_CMD_DEAUTHENTICATE, .doit = nl80211_deauthenticate, .policy = nl80211_policy, .flags = GENL_ADMIN_PERM, .internal_flags = NL80211_FLAG_NEED_NETDEV_UP | NL80211_FLAG_NEED_RTNL, }, { .cmd = NL80211_CMD_DISASSOCIATE, .doit = nl80211_disassociate, .policy = nl80211_policy, .flags = GENL_ADMIN_PERM, .internal_flags = NL80211_FLAG_NEED_NETDEV_UP | NL80211_FLAG_NEED_RTNL, }, { .cmd = NL80211_CMD_JOIN_IBSS, .doit = nl80211_join_ibss, .policy = nl80211_policy, .flags = GENL_ADMIN_PERM, .internal_flags = NL80211_FLAG_NEED_NETDEV_UP | NL80211_FLAG_NEED_RTNL, }, { .cmd = NL80211_CMD_LEAVE_IBSS, .doit = nl80211_leave_ibss, .policy = nl80211_policy, .flags = GENL_ADMIN_PERM, .internal_flags = NL80211_FLAG_NEED_NETDEV_UP | NL80211_FLAG_NEED_RTNL, }, #ifdef CONFIG_NL80211_TESTMODE { .cmd = NL80211_CMD_TESTMODE, .doit = nl80211_testmode_do, .dumpit = nl80211_testmode_dump, .policy = nl80211_policy, .flags = GENL_ADMIN_PERM, .internal_flags = NL80211_FLAG_NEED_WIPHY | NL80211_FLAG_NEED_RTNL, }, #endif { .cmd = NL80211_CMD_CONNECT, .doit = nl80211_connect, .policy = nl80211_policy, .flags = GENL_ADMIN_PERM, .internal_flags = NL80211_FLAG_NEED_NETDEV_UP | NL80211_FLAG_NEED_RTNL, }, { .cmd = NL80211_CMD_DISCONNECT, .doit = nl80211_disconnect, .policy = nl80211_policy, .flags = GENL_ADMIN_PERM, .internal_flags = NL80211_FLAG_NEED_NETDEV_UP | NL80211_FLAG_NEED_RTNL, }, { .cmd = NL80211_CMD_SET_WIPHY_NETNS, .doit = nl80211_wiphy_netns, .policy = nl80211_policy, .flags = GENL_ADMIN_PERM, .internal_flags = NL80211_FLAG_NEED_WIPHY | NL80211_FLAG_NEED_RTNL, }, { .cmd = NL80211_CMD_GET_SURVEY, .policy = nl80211_policy, .dumpit = nl80211_dump_survey, }, { .cmd = NL80211_CMD_SET_PMKSA, .doit = nl80211_setdel_pmksa, .policy = nl80211_policy, .flags = GENL_ADMIN_PERM, .internal_flags = NL80211_FLAG_NEED_NETDEV_UP | NL80211_FLAG_NEED_RTNL, }, { .cmd = NL80211_CMD_DEL_PMKSA, .doit = nl80211_setdel_pmksa, .policy = nl80211_policy, .flags = GENL_ADMIN_PERM, .internal_flags = NL80211_FLAG_NEED_NETDEV_UP | NL80211_FLAG_NEED_RTNL, }, { .cmd = NL80211_CMD_FLUSH_PMKSA, .doit = nl80211_flush_pmksa, .policy = nl80211_policy, .flags = GENL_ADMIN_PERM, .internal_flags = NL80211_FLAG_NEED_NETDEV_UP | NL80211_FLAG_NEED_RTNL, }, { .cmd = NL80211_CMD_REMAIN_ON_CHANNEL, .doit = nl80211_remain_on_channel, .policy = nl80211_policy, .flags = GENL_ADMIN_PERM, .internal_flags = NL80211_FLAG_NEED_WDEV_UP | NL80211_FLAG_NEED_RTNL, }, { .cmd = NL80211_CMD_CANCEL_REMAIN_ON_CHANNEL, .doit = nl80211_cancel_remain_on_channel, .policy = nl80211_policy, .flags = GENL_ADMIN_PERM, .internal_flags = NL80211_FLAG_NEED_WDEV_UP | NL80211_FLAG_NEED_RTNL, }, { .cmd = NL80211_CMD_SET_TX_BITRATE_MASK, .doit = nl80211_set_tx_bitrate_mask, .policy = nl80211_policy, .flags = GENL_ADMIN_PERM, .internal_flags = NL80211_FLAG_NEED_NETDEV | NL80211_FLAG_NEED_RTNL, }, { .cmd = NL80211_CMD_REGISTER_FRAME, .doit = nl80211_register_mgmt, .policy = nl80211_policy, .flags = GENL_ADMIN_PERM, .internal_flags = NL80211_FLAG_NEED_WDEV | NL80211_FLAG_NEED_RTNL, }, { .cmd = NL80211_CMD_FRAME, .doit = nl80211_tx_mgmt, .policy = nl80211_policy, .flags = GENL_ADMIN_PERM, .internal_flags = NL80211_FLAG_NEED_WDEV_UP | NL80211_FLAG_NEED_RTNL, }, { .cmd = NL80211_CMD_FRAME_WAIT_CANCEL, .doit = nl80211_tx_mgmt_cancel_wait, .policy = nl80211_policy, .flags = GENL_ADMIN_PERM, .internal_flags = NL80211_FLAG_NEED_WDEV_UP | NL80211_FLAG_NEED_RTNL, }, { .cmd = NL80211_CMD_SET_POWER_SAVE, .doit = nl80211_set_power_save, .policy = nl80211_policy, .flags = GENL_ADMIN_PERM, .internal_flags = NL80211_FLAG_NEED_NETDEV | NL80211_FLAG_NEED_RTNL, }, { .cmd = NL80211_CMD_GET_POWER_SAVE, .doit = nl80211_get_power_save, .policy = nl80211_policy, /* can be retrieved by unprivileged users */ .internal_flags = NL80211_FLAG_NEED_NETDEV | NL80211_FLAG_NEED_RTNL, }, { .cmd = NL80211_CMD_SET_CQM, .doit = nl80211_set_cqm, .policy = nl80211_policy, .flags = GENL_ADMIN_PERM, .internal_flags = NL80211_FLAG_NEED_NETDEV | NL80211_FLAG_NEED_RTNL, }, { .cmd = NL80211_CMD_SET_CHANNEL, .doit = nl80211_set_channel, .policy = nl80211_policy, .flags = GENL_ADMIN_PERM, .internal_flags = NL80211_FLAG_NEED_NETDEV | NL80211_FLAG_NEED_RTNL, }, { .cmd = NL80211_CMD_SET_WDS_PEER, .doit = nl80211_set_wds_peer, .policy = nl80211_policy, .flags = GENL_ADMIN_PERM, .internal_flags = NL80211_FLAG_NEED_NETDEV | NL80211_FLAG_NEED_RTNL, }, { .cmd = NL80211_CMD_JOIN_MESH, .doit = nl80211_join_mesh, .policy = nl80211_policy, .flags = GENL_ADMIN_PERM, .internal_flags = NL80211_FLAG_NEED_NETDEV_UP | NL80211_FLAG_NEED_RTNL, }, { .cmd = NL80211_CMD_LEAVE_MESH, .doit = nl80211_leave_mesh, .policy = nl80211_policy, .flags = GENL_ADMIN_PERM, .internal_flags = NL80211_FLAG_NEED_NETDEV_UP | NL80211_FLAG_NEED_RTNL, }, { .cmd = NL80211_CMD_JOIN_OCB, .doit = nl80211_join_ocb, .policy = nl80211_policy, .flags = GENL_ADMIN_PERM, .internal_flags = NL80211_FLAG_NEED_NETDEV_UP | NL80211_FLAG_NEED_RTNL, }, { .cmd = NL80211_CMD_LEAVE_OCB, .doit = nl80211_leave_ocb, .policy = nl80211_policy, .flags = GENL_ADMIN_PERM, .internal_flags = NL80211_FLAG_NEED_NETDEV_UP | NL80211_FLAG_NEED_RTNL, }, #ifdef CONFIG_PM { .cmd = NL80211_CMD_GET_WOWLAN, .doit = nl80211_get_wowlan, .policy = nl80211_policy, /* can be retrieved by unprivileged users */ .internal_flags = NL80211_FLAG_NEED_WIPHY | NL80211_FLAG_NEED_RTNL, }, { .cmd = NL80211_CMD_SET_WOWLAN, .doit = nl80211_set_wowlan, .policy = nl80211_policy, .flags = GENL_ADMIN_PERM, .internal_flags = NL80211_FLAG_NEED_WIPHY | NL80211_FLAG_NEED_RTNL, }, #endif { .cmd = NL80211_CMD_SET_REKEY_OFFLOAD, .doit = nl80211_set_rekey_data, .policy = nl80211_policy, .flags = GENL_ADMIN_PERM, .internal_flags = NL80211_FLAG_NEED_NETDEV_UP | NL80211_FLAG_NEED_RTNL | NL80211_FLAG_CLEAR_SKB, }, { .cmd = NL80211_CMD_TDLS_MGMT, .doit = nl80211_tdls_mgmt, .policy = nl80211_policy, .flags = GENL_ADMIN_PERM, .internal_flags = NL80211_FLAG_NEED_NETDEV_UP | NL80211_FLAG_NEED_RTNL, }, { .cmd = NL80211_CMD_TDLS_OPER, .doit = nl80211_tdls_oper, .policy = nl80211_policy, .flags = GENL_ADMIN_PERM, .internal_flags = NL80211_FLAG_NEED_NETDEV_UP | NL80211_FLAG_NEED_RTNL, }, { .cmd = NL80211_CMD_UNEXPECTED_FRAME, .doit = nl80211_register_unexpected_frame, .policy = nl80211_policy, .flags = GENL_ADMIN_PERM, .internal_flags = NL80211_FLAG_NEED_NETDEV | NL80211_FLAG_NEED_RTNL, }, { .cmd = NL80211_CMD_PROBE_CLIENT, .doit = nl80211_probe_client, .policy = nl80211_policy, .flags = GENL_ADMIN_PERM, .internal_flags = NL80211_FLAG_NEED_NETDEV_UP | NL80211_FLAG_NEED_RTNL, }, { .cmd = NL80211_CMD_REGISTER_BEACONS, .doit = nl80211_register_beacons, .policy = nl80211_policy, .flags = GENL_ADMIN_PERM, .internal_flags = NL80211_FLAG_NEED_WIPHY | NL80211_FLAG_NEED_RTNL, }, { .cmd = NL80211_CMD_SET_NOACK_MAP, .doit = nl80211_set_noack_map, .policy = nl80211_policy, .flags = GENL_ADMIN_PERM, .internal_flags = NL80211_FLAG_NEED_NETDEV | NL80211_FLAG_NEED_RTNL, }, { .cmd = NL80211_CMD_START_P2P_DEVICE, .doit = nl80211_start_p2p_device, .policy = nl80211_policy, .flags = GENL_ADMIN_PERM, .internal_flags = NL80211_FLAG_NEED_WDEV | NL80211_FLAG_NEED_RTNL, }, { .cmd = NL80211_CMD_STOP_P2P_DEVICE, .doit = nl80211_stop_p2p_device, .policy = nl80211_policy, .flags = GENL_ADMIN_PERM, .internal_flags = NL80211_FLAG_NEED_WDEV_UP | NL80211_FLAG_NEED_RTNL, }, { .cmd = NL80211_CMD_SET_MCAST_RATE, .doit = nl80211_set_mcast_rate, .policy = nl80211_policy, .flags = GENL_ADMIN_PERM, .internal_flags = NL80211_FLAG_NEED_NETDEV | NL80211_FLAG_NEED_RTNL, }, { .cmd = NL80211_CMD_SET_MAC_ACL, .doit = nl80211_set_mac_acl, .policy = nl80211_policy, .flags = GENL_ADMIN_PERM, .internal_flags = NL80211_FLAG_NEED_NETDEV | NL80211_FLAG_NEED_RTNL, }, { .cmd = NL80211_CMD_RADAR_DETECT, .doit = nl80211_start_radar_detection, .policy = nl80211_policy, .flags = GENL_ADMIN_PERM, .internal_flags = NL80211_FLAG_NEED_NETDEV_UP | NL80211_FLAG_NEED_RTNL, }, { .cmd = NL80211_CMD_GET_PROTOCOL_FEATURES, .doit = nl80211_get_protocol_features, .policy = nl80211_policy, }, { .cmd = NL80211_CMD_UPDATE_FT_IES, .doit = nl80211_update_ft_ies, .policy = nl80211_policy, .flags = GENL_ADMIN_PERM, .internal_flags = NL80211_FLAG_NEED_NETDEV_UP | NL80211_FLAG_NEED_RTNL, }, { .cmd = NL80211_CMD_CRIT_PROTOCOL_START, .doit = nl80211_crit_protocol_start, .policy = nl80211_policy, .flags = GENL_ADMIN_PERM, .internal_flags = NL80211_FLAG_NEED_WDEV_UP | NL80211_FLAG_NEED_RTNL, }, { .cmd = NL80211_CMD_CRIT_PROTOCOL_STOP, .doit = nl80211_crit_protocol_stop, .policy = nl80211_policy, .flags = GENL_ADMIN_PERM, .internal_flags = NL80211_FLAG_NEED_WDEV_UP | NL80211_FLAG_NEED_RTNL, }, { .cmd = NL80211_CMD_GET_COALESCE, .doit = nl80211_get_coalesce, .policy = nl80211_policy, .internal_flags = NL80211_FLAG_NEED_WIPHY | NL80211_FLAG_NEED_RTNL, }, { .cmd = NL80211_CMD_SET_COALESCE, .doit = nl80211_set_coalesce, .policy = nl80211_policy, .flags = GENL_ADMIN_PERM, .internal_flags = NL80211_FLAG_NEED_WIPHY | NL80211_FLAG_NEED_RTNL, }, { .cmd = NL80211_CMD_CHANNEL_SWITCH, .doit = nl80211_channel_switch, .policy = nl80211_policy, .flags = GENL_ADMIN_PERM, .internal_flags = NL80211_FLAG_NEED_NETDEV_UP | NL80211_FLAG_NEED_RTNL, }, { .cmd = NL80211_CMD_VENDOR, .doit = nl80211_vendor_cmd, .dumpit = nl80211_vendor_cmd_dump, .policy = nl80211_policy, .flags = GENL_ADMIN_PERM, .internal_flags = NL80211_FLAG_NEED_WIPHY | NL80211_FLAG_NEED_RTNL, }, { .cmd = NL80211_CMD_SET_QOS_MAP, .doit = nl80211_set_qos_map, .policy = nl80211_policy, .flags = GENL_ADMIN_PERM, .internal_flags = NL80211_FLAG_NEED_NETDEV_UP | NL80211_FLAG_NEED_RTNL, }, { .cmd = NL80211_CMD_ADD_TX_TS, .doit = nl80211_add_tx_ts, .policy = nl80211_policy, .flags = GENL_ADMIN_PERM, .internal_flags = NL80211_FLAG_NEED_NETDEV_UP | NL80211_FLAG_NEED_RTNL, }, { .cmd = NL80211_CMD_DEL_TX_TS, .doit = nl80211_del_tx_ts, .policy = nl80211_policy, .flags = GENL_ADMIN_PERM, .internal_flags = NL80211_FLAG_NEED_NETDEV_UP | NL80211_FLAG_NEED_RTNL, }, { .cmd = NL80211_CMD_TDLS_CHANNEL_SWITCH, .doit = nl80211_tdls_channel_switch, .policy = nl80211_policy, .flags = GENL_ADMIN_PERM, .internal_flags = NL80211_FLAG_NEED_NETDEV_UP | NL80211_FLAG_NEED_RTNL, }, { .cmd = NL80211_CMD_TDLS_CANCEL_CHANNEL_SWITCH, .doit = nl80211_tdls_cancel_channel_switch, .policy = nl80211_policy, .flags = GENL_ADMIN_PERM, .internal_flags = NL80211_FLAG_NEED_NETDEV_UP | NL80211_FLAG_NEED_RTNL, }, { .cmd = NL80211_CMD_EXTERNAL_AUTH, .doit = nl80211_external_auth, .policy = nl80211_policy, .flags = GENL_ADMIN_PERM, .internal_flags = NL80211_FLAG_NEED_NETDEV_UP | NL80211_FLAG_NEED_RTNL, }, { .cmd = NL80211_CMD_SET_FILS_AAD, .doit = nl80211_set_fils_aad, .policy = nl80211_policy, .flags = GENL_ADMIN_PERM, .internal_flags = NL80211_FLAG_NEED_NETDEV_UP | NL80211_FLAG_NEED_RTNL, }, };
当内核收到这些nl消息的时候就会调用该NL80211_CMD_xx对应的
.doit函数；qca-wifi-g431c69b42e38-dirty/os/linux/tools/qcatools_lib.cqcatools_lib.c就是对该过程的封装，编译成libqca_tools.so，提供api函数方便用户使用。下面以wifitool和cfg80211tool为例说明
wifitool
基本数据结构
wifi_cfg80211_context结构体
在cfg80211_nlwrapper_api.h文件中定义
typedef struct wifi_cfg80211_t { /* command socket object */ struct nl_sock *cmd_sock; struct nl_sock *event_sock; /* private command socket ids*/ int pvt_cmd_sock_id; int pvt_event_sock_id; /* family id for 80211 driver */ int nl80211_family_id; void (*event_callback)(char *ifname, uint32_t subcmd, uint8_t *data,size_t len); pthread_t event_thread_handle; volatile int event_thread_running; } wifi_cfg80211_context; struct cfg80211_data { void *data; /* data pointer */ void *nl_vendordata; /* vendor data */ unsigned int nl_vendordata_len; /* vendor data length */ unsigned int length; /* data length */ unsigned int flags; /* flags for data */ unsigned int parse_data; /* 1 - data parsed by caller 0- data parsed by wrapper */ /* callback that needs to be called when data recevied from driver */ void (*callback) (struct cfg80211_data *); };
struct socket_context结构体在
qca-wifi-g431c69b42e38-dirty/os/linux/tools/qcatools_lib.hstruct socket_context { u_int8_t cfg80211; /* cfg80211 使能 flag */ #if UMAC_SUPPORT_CFG80211 wifi_cfg80211_context cfg80211_ctxt; /* cfg80211 context */ // 参见上面解释的 #endif int sock_fd; /* wext socket file descriptor */ };
todo
应用层连接内核nl sock 分析
main
init_socket_context
wifi_init_nl80211
wifi_create_nl_socket
wifi_socket_set_local_port
nl_connect
在qca-wifi-g431c69b42e38-dirty/os/linux/tools/wifitool.c中，main函数中创建socket和内核连接
//定义全局 sock_ctx 是qca封装了一层
struct socket_context sock_ctx;
int main(int argc, char *argv[])
{
const char *ifname, *cmd;
/*
* Based on driver config mode (cfg80211/wext), application also runs
* in same mode (wext?cfg80211)
* 这里是cfg80211 故而sock_ctx.cfg80211=1
*/
sock_ctx.cfg80211 = get_config_mode_type();
// 参数检查并偏移地址
if(streq(argv[argc-1],"-cfg80211") ||
streq(argv[argc-1],"--cfg80211")) {
--argc;
if (!sock_ctx.cfg80211){
fprintf(stderr, "Invalid tag 'cfg80211' for current mode.\n");
return -EINVAL;
}
sock_ctx.cfg80211 = 1;
}
// 得到 athx 和cmd
ifname = argv[1];
cmd = argv[2];
// 下面这个先不管
#if UMAC_SUPPORT_CFG80211
if (sock_ctx.cfg80211 && streq(cmd, "setUnitTestCmdEvent")) {
sock_ctx.cfg80211_ctxt.event_callback = cfg80211_event_callback;
}
#endif
// 这个队列也是 libqca_tools.so提供，暂时先不解析
q_init(&event_q);
// 初始化socket 和内核联系，这个函数下面分析
init_socket_context(&sock_ctx, WIFI_NL80211_CMD_SOCK_ID, WIFI_NL80211_EVENT_SOCK_ID);
// 识别用户输入的字符串命令 调用对应的函数，这里肯定发送nl消息了 后面分析
if (streq(cmd, "rrmstats")) {
get_rrmstats(ifname, argc, argv);
} else if (streq(cmd, "get_rrmutil")) {
get_rrmutil(ifname, argc, argv);
}
// 摧毁sock 释放资源
destroy_socket_context(&sock_ctx);
return 0;
}
init_socket_context
在qca-wifi-g431c69b42e38-dirty/os/linux/tools/qcatools_lib.c里面init_socket_context函数原型如下：
int init_socket_context (struct socket_context *sock_ctx,
int cmd_sock_id, int event_sock_id)
{
int err = 0;
#if UMAC_SUPPORT_CFG80211
if (sock_ctx->cfg80211) {
// 记录用户传进来的私有id
sock_ctx->cfg80211_ctxt.pvt_cmd_sock_id = cmd_sock_id;
sock_ctx->cfg80211_ctxt.pvt_event_sock_id = event_sock_id;
// 该函数位于qca-cfg80211-g431c69b42e38-dirty/qca_nl80211_lib/cfg80211_nlwrapper_api.c
err = wifi_init_nl80211(&(sock_ctx->cfg80211_ctxt));
}
#endif
return 0;
}
wifi_init_nl80211
qca-cfg80211-g431c69b42e38-dirty/qca_nl80211_lib/cfg80211_nlwrapper_api.c下的wifi_init_nl80211函数原型如下
int wifi_init_nl80211(wifi_cfg80211_context *ctx)
{
struct nl_sock *cmd_sock = NULL;
nl80211_ctx = ctx;
// 创建 nl_sock
cmd_sock = wifi_create_nl_socket(ctx->pvt_cmd_sock_id, NETLINK_GENERIC);
#define ALLOC_SIZE (256*1024)
/* Set the socket buffer size */
nl_socket_set_buffer_size(cmd_sock, (ALLOC_SIZE), 0) ;
// 保存sock句柄，和 nl80211_family_id 到这里才是 nl socket的 api 前面都是高通自己封装的
ctx->cmd_sock = cmd_sock;
ctx->nl80211_family_id = genl_ctrl_resolve(cmd_sock, "nl80211");
if (setup_event_mechanism(ctx)) {
goto cleanup;
}
return 0;
cleanup:
ctx->cmd_sock = NULL;
nl_socket_free(cmd_sock);
return -EIO;
}
wifi_create_nl_socket
qca-cfg80211-g431c69b42e38-dirty/qca_nl80211_lib/cfg80211_nlwrapper_api.c下的wifi_create_nl_socket函数原型如下：
struct nl_sock *wifi_create_nl_socket(int port, int protocol)
{
struct nl_sock *sock = nl_socket_alloc();
// 设置sock 参数，该函数也在cfg80211_nlwrapper_api.c里面
wifi_socket_set_local_port(sock, port);
// 连接sock
if (nl_connect(sock, protocol)) {
fprintf(stderr, "Could not connect handle\n");
nl_socket_free(sock);
return NULL;
}
return sock;
}
wifi_socket_set_local_port函数
void wifi_socket_set_local_port(struct nl_sock *sock, uint32_t port)
{
#define PID_MASK 0x3FFFFF
#define PORT_SHITF_VAL 22
uint32_t pid;
pid = getpid() & PID_MASK;
if (port == 0) {
sock->s_flags &= ~NL_OWN_PORT;
} else {
sock->s_flags |= NL_OWN_PORT;
}
sock->s_local.nl_pid = pid + (port << PORT_SHITF_VAL);
#undef PID_MASK
#undef PORT_SHITF_VAL
}

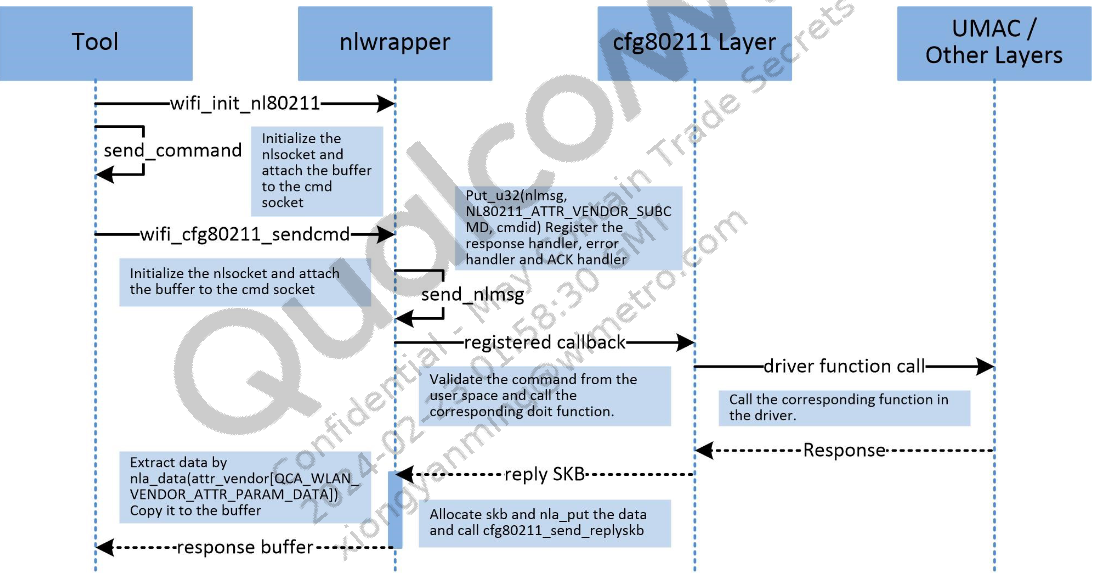

自此，wifitool的nl socket和 内核连接起来了下面分析如何发送nl消息。
上面我们提到在main函数中，会根据用户输入的参数进行匹配，然后调用对应的处理函数发送nl消息，我们以get_rssi函数为例说明，nl消息到达内核的哪个层面
应用层发送nl消息
get_rssi函数原型如下：
static int get_rssi(const char *ifname, int argc, char *argv[])
{
struct ieee80211req_athdbg req = {0};
req.cmd = IEEE80211_DBGREQ_GETRRSSI;
req.needs_reply = DBGREQ_REPLY_IS_NOT_REQUIRED;
memset(req.dstmac,0x00,QDF_MAC_ADDR_SIZE);
// 上面的req 就是缓存，里面格式怎么样 用户自己定义，到驱动层方便赋值而已，无需特别关注
// 需要注意下面函数的 QCA_NL80211_VENDOR_SUBCMD_DBGREQ 参数
//
send_command(&sock_ctx, ifname, &req, sizeof(req), NULL, QCA_NL80211_VENDOR_SUBCMD_DBGREQ, IEEE80211_IOCTL_DBGREQ);
return 0;
}
send_command
int send_command (struct socket_context *sock_ctx, const char *ifname, void *buf,
size_t buflen, void (*callback) (struct cfg80211_data *arg), int cmd, int ioctl_cmd)
{
#if UMAC_SUPPORT_CFG80211
int msg;
struct cfg80211_data buffer;
#endif
if (sock_ctx->cfg80211) {
#if UMAC_SUPPORT_CFG80211
buffer.data = buf;
buffer.length = buflen;
buffer.callback = callback;
buffer.parse_data = 0;
// 该函数用于创建nl消息，且QCA_NL80211_VENDOR_SUBCMD_SET_WIFI_CONFIGURATION 和 cmd=QCA_NL80211_VENDOR_SUBCMD_DBGREQ
msg = wifi_cfg80211_send_generic_command(&(sock_ctx->cfg80211_ctxt),
QCA_NL80211_VENDOR_SUBCMD_SET_WIFI_CONFIGURATION,
cmd, ifname, (char *)&buffer, buflen);
if (msg < 0) {
printf("Could not send NL command\n");
return -1;
}
return buffer.length;
#endif
}
return 0;
}
wifi_cfg80211_send_generic_command
int wifi_cfg80211_send_generic_command(wifi_cfg80211_context *ctx, int vendor_command, int cmdid, const char *ifname, char *buffer, int len)
{
// 此时的 vendor_command = QCA_NL80211_VENDOR_SUBCMD_SET_WIFI_CONFIGURATION
// cmdid = QCA_NL80211_VENDOR_SUBCMD_DBGREQ
struct nl_msg *nlmsg = NULL;
int res = -EIO;
struct nlattr *nl_venData = NULL;
struct cfg80211_data *cfgdata = (struct cfg80211_data *) buffer;
// 这个函数会为 nl msg 分配空间 下面会分析
nlmsg = wifi_cfg80211_prepare_command(ctx, vendor_command, ifname); // vendor_command=QCA_NL80211_VENDOR_SUBCMD_SET_WIFI_CONFIGURATION
/* Prepare Actual Payload
1. nla_put - command ID.
2. nla_put - data
3. nla_put length
QCA_WLAN_VENDOR_ATTR_CONFIG_GENERIC_COMMAND,
QCA_WLAN_VENDOR_ATTR_CONFIG_GENERIC_VALUE,
QCA_WLAN_VENDOR_ATTR_CONFIG_GENERIC_DATA,
QCA_WLAN_VENDOR_ATTR_CONFIG_GENERIC_LENGTH,
QCA_WLAN_VENDOR_ATTR_CONFIG_GENERIC_FLAGS,
*/
if (nlmsg) {
nl_venData = (struct nlattr *)start_vendor_data(nlmsg);
if (!nl_venData) {
fprintf(stderr, "failed to start vendor data\n");
nlmsg_free(nlmsg);
return -EIO;
}
// 继续放数据
if (nla_put_u32(nlmsg, QCA_WLAN_VENDOR_ATTR_CONFIG_GENERIC_LENGTH, len)) {
fprintf(stderr, "\n Failed nla_put_u32, \n");
nlmsg_free(nlmsg);
return -EIO;
}
if (nla_put_u32(nlmsg, QCA_WLAN_VENDOR_ATTR_CONFIG_GENERIC_COMMAND, cmdid)) { //QCA_NL80211_VENDOR_SUBCMD_DBGREQ
nlmsg_free(nlmsg);
return -EIO;
}
if (nla_put_u32(nlmsg, QCA_WLAN_VENDOR_ATTR_CONFIG_GENERIC_FLAGS, cfgdata->flags)) {
nlmsg_free(nlmsg);
return -EIO;
}
if (nla_put(nlmsg, QCA_WLAN_VENDOR_ATTR_CONFIG_GENERIC_DATA,
cfgdata->length, cfgdata->data)) {
nlmsg_free(nlmsg);
return -EIO;
} else {
if (nl_venData) {
end_vendor_data(nlmsg, nl_venData);
}
// 发送消息 自此 结束
res = send_nlmsg(ctx, nlmsg, buffer);
if (res < 0) {
return res;
}
return res;
}
} else {
return -EIO;
}
return res;
}
wifi_cfg80211_prepare_command
该函数会创建struct nl_msg消息命令为NL80211_CMD_VENDOR，并放入两个元素
NL80211_ATTR_VENDOR_ID = QCA_VENDOR_OUI
NL80211_ATTR_VENDOR_SUBCMD = QCA_NL80211_VENDOR_SUBCMD_SET_WIFI_CONFIGURATION =72
这里终于看到NL80211_CMD_VENDOR了。
struct nl_msg *wifi_cfg80211_prepare_command(wifi_cfg80211_context *ctx, int cmdid, const char *ifname)
{
int res;
// 分配空间
struct nl_msg *nlmsg = nlmsg_alloc();
genlmsg_put(nlmsg, 0, 0, ctx->nl80211_family_id,0, 0, NL80211_CMD_VENDOR, 0);
// 放入 NL80211_ATTR_VENDOR_ID = QCA_VENDOR_OUI
res = put_u32(nlmsg, NL80211_ATTR_VENDOR_ID, QCA_VENDOR_OUI);
// 放入 NL80211_ATTR_VENDOR_SUBCMD = cmdid = QCA_NL80211_VENDOR_SUBCMD_SET_WIFI_CONFIGURATION = 72
/* SET_WIFI_CONFIGURATION = 72 */
res = put_u32(nlmsg, NL80211_ATTR_VENDOR_SUBCMD, cmdid);
set_iface_id(nlmsg, ifname);
return nlmsg;
}
注意：自此：经过上面的调用，我们得到nl消息里面存放内容如下：相当重要，后面驱动层会一点点取出来用
NL80211_CMD_VENDOR
NL80211_ATTR_VENDOR_ID QCA_VENDOR_OUI
NL80211_ATTR_VENDOR_SUBCMD QCA_NL80211_VENDOR_SUBCMD_SET_WIFI_CONFIGURATION

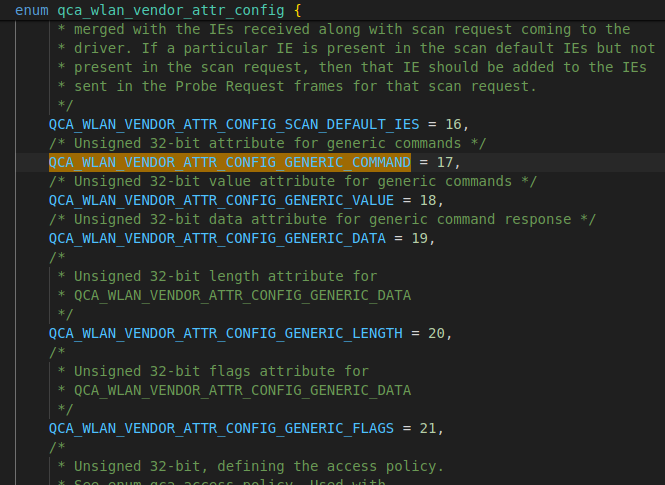

下面这几个也是QCA 驱动层解析策略里面规定的 所有我们应用层都给填充了内容
QCA_WLAN_VENDOR_ATTR_CONFIG_GENERIC_LENGTH 用户传入buflen
QCA_WLAN_VENDOR_ATTR_CONFIG_GENERIC_COMMAND QCA_NL80211_VENDOR_SUBCMD_DBGREQ
QCA_WLAN_VENDOR_ATTR_CONFIG_GENERIC_FLAGS cfgdata->flags
QCA_WLAN_VENDOR_ATTR_CONFIG_GENERIC_DATA cfgdata->data=上面我们创建的struct cfg80211_data cfgdata->length=其长度
重要的事情说三遍，这些nl 里面有什么内容，下面驱动层要用的。
综上所述
应用层发送nl消息，命令为 NL80211_CMD_VENDOR 且子命令为 NL80211_ATTR_VENDOR_SUBCMD=QCA_NL80211_VENDOR_SUBCMD_SET_WIFI_CONFIGURATION
根据章节[NL80211机制]介绍，NL80211_CMD_VENDOR命令对应 nl80211_vendor_cmd函数ops回调，在往下 就到了驱动层了
static const struct genl_ops nl80211_ops[] = {
// 此处省略了些，具体请看代码
{
.cmd = NL80211_CMD_VENDOR,
.doit = nl80211_vendor_cmd,
.dumpit = nl80211_vendor_cmd_dump,
.policy = nl80211_policy,
.flags = GENL_ADMIN_PERM,
.internal_flags = NL80211_FLAG_NEED_WIPHY |
NL80211_FLAG_NEED_RTNL,
},
};
驱动层处理nl消息
nl80211_vendor_cmd函数解析
static int nl80211_vendor_cmd(struct sk_buff *skb, struct genl_info *info)
{
struct cfg80211_registered_device *rdev = info->user_ptr[0];
struct wireless_dev *wdev =
__cfg80211_wdev_from_attrs(genl_info_net(info), info->attrs);
int i, err;
u32 vid, subcmd;
// 取出 vid和 subcmd
vid = nla_get_u32(info->attrs[NL80211_ATTR_VENDOR_ID]); //=QCA_VENDOR_OUI 注意这里的vid概念 下面会判断，如果不是这个vid 依然不会往下走
subcmd = nla_get_u32(info->attrs[NL80211_ATTR_VENDOR_SUBCMD]); // 注意这里 是应用层传过来的QCA_NL80211_VENDOR_SUBCMD_SET_WIFI_CONFIGURATION
for (i = 0; i < rdev->wiphy.n_vendor_commands; i++) {
const struct wiphy_vendor_command *vcmd;
void *data = NULL;
int len = 0;
// 该结构体注册的地方等下分析
vcmd = &rdev->wiphy.vendor_commands[i];
// 下面是合法性判断，先不用理会
//这里删掉了
// for循环 找到 nl 中的vid 和 subcmd 都和 注册的vcmd 里面匹配项，就可以往下执行，
if (vcmd->info.vendor_id != vid || vcmd->info.subcmd != subcmd)
continue;
// 能到这里说明肯定找到了 下面 取出nl消息的data内容
if (info->attrs[NL80211_ATTR_VENDOR_DATA]) {
data = nla_data(info->attrs[NL80211_ATTR_VENDOR_DATA]); // 此时就是用户传进来的空间
len = nla_len(info->attrs[NL80211_ATTR_VENDOR_DATA]);
}
rdev->cur_cmd_info = info;
// 执行nl消息 的doit 钩子函数 此时对应的
err = rdev->wiphy.vendor_commands[i].doit(&rdev->wiphy, wdev,
data, len);
rdev->cur_cmd_info = NULL;
return err;
}
return -EOPNOTSUPP;
}
上述代码提到的
rdev->wiphy.vendor_commands注册地方qca-wifi-g431c69b42e38-dirty/offload/os/linux/ol_ath_linux.c/ol_ath_ifce_setup函数void ol_ath_ifce_setup(struct ol_ath_softc_net80211 *scn, ifce_status ifce_up) { #if UMAC_SUPPORT_CFG80211 /* attach/detach both vap and radio specific handlers */ if (ic->ic_cfg80211_config) { if (ifce_up) { wlan_cfg80211_register_vendor_cmd_event_handlers(ic);// 在该函数中注册 } else { wlan_cfg80211_unregister_vendor_cmd_event_handlers(ic); } } #endif }
void wlan_cfg80211_register_vendor_cmd_event_handlers(struct ieee80211com *ic) { ic->ic_wiphy->n_vendor_commands = ARRAY_SIZE(wlan_cfg80211_vendor_commands); ic->ic_wiphy->n_vendor_events = ARRAY_SIZE(wlan_cfg80211_vendor_events); ic->ic_wiphy->vendor_commands = wlan_cfg80211_vendor_commands; // 赋值的地方 ic->ic_wiphy->vendor_events = wlan_cfg80211_vendor_events; // 赋值的地方 }
qca-wifi-g431c69b42e38-dirty/os/linux/src/ieee80211_cfg80211.c/wlan_cfg80211_vendor_commands结构体原型如下：const struct wiphy_vendor_command wlan_cfg80211_vendor_commands[] = { { .info.vendor_id = QCA_NL80211_VENDOR_ID, .info.subcmd = QCA_NL80211_VENDOR_SUBCMD_SET_WIFI_CONFIGURATION, .flags = WIPHY_VENDOR_CMD_NEED_WDEV | WIPHY_VENDOR_CMD_NEED_NETDEV, .doit = wlan_cfg80211_set_wificonfiguration }, { .info.vendor_id = QCA_NL80211_VENDOR_ID, .info.subcmd = QCA_NL80211_VENDOR_SUBCMD_GET_WIFI_CONFIGURATION, .flags = WIPHY_VENDOR_CMD_NEED_WDEV | WIPHY_VENDOR_CMD_NEED_NETDEV, .doit = wlan_cfg80211_get_wificonfiguration }, //此处省略了n行 };
所以上面提到了子命令为QCA_NL80211_VENDOR_SUBCMD_SET_WIFI_CONFIGURATION，故而 此时会调用wlan_cfg80211_set_wificonfiguration函数
wlan_cfg80211_set_wificonfiguration
qca-wifi-g431c69b42e38-dirty/os/linux/src/ieee80211_cfg80211.c文件中wlan_cfg80211_set_wificonfiguration函数原型如下：
static int wlan_cfg80211_set_wificonfiguration(struct wiphy *wiphy,
struct wireless_dev *wdev,
const void *data,
int data_len)
{
struct cfg80211_context *cfg_ctx = NULL;
struct ieee80211com *ic = NULL;
struct wlan_cfg8011_genric_params generic_params;
int return_value = 0;
int i;
cfg_ctx = (struct cfg80211_context *)wiphy_priv(wiphy);
ic = cfg_ctx->ic;
qdf_mem_zero(&generic_params, sizeof(generic_params));
// 解析data 到 generic_params里面 此时的data 就是用户层传进来的NL80211_ATTR_VENDOR_DATA熟悉的空间
extract_generic_command_params(wiphy, data, data_len, &generic_params);
switch(generic_params.command) {
case QCA_NL80211_VENDOR_SUBCMD_WIFI_PARAMS:
return_value = wlan_cfg80211_set_params(wiphy, wdev, &generic_params);
break;
case QCA_NL80211_VENDOR_SUBCMD_DBGREQ:
// 会跑到这里
return_value = wlan_cfg80211_dbgreq(wiphy, wdev, generic_params.data, generic_params.data_len);
break;
default:
qdf_print( "%s: Unsuported Genric command: %d ", __func__, generic_params.command);
return_value = -EOPNOTSUPP;
}
return return_value;
}
extract_generic_command_params
解析data数据到params 中
/* extract generic command params & send back them to caller */
static int extract_generic_command_params(struct wiphy *wiphy,
const void *data, int data_len,
struct wlan_cfg8011_genric_params *params)
{
struct cfg80211_context *cfg_ctx = NULL;
struct ieee80211com *ic = NULL;
struct nlattr *attr[QCA_WLAN_VENDOR_ATTR_CONFIG_MAX + 1];
cfg_ctx = (struct cfg80211_context *)wiphy_priv(wiphy);
ic = cfg_ctx->ic;
// 解析策略为wlan_cfg80211_set_wificonfiguration_policy
/*
static const struct nla_policy wlan_cfg80211_set_wificonfiguration_policy[QCA_WLAN_VENDOR_ATTR_CONFIG_MAX + 1] = {
[QCA_WLAN_VENDOR_ATTR_CONFIG_GENERIC_COMMAND] = {.type = NLA_U32 },
[QCA_WLAN_VENDOR_ATTR_CONFIG_GENERIC_VALUE] = {.type = NLA_U32 },
[QCA_WLAN_VENDOR_ATTR_CONFIG_GENERIC_DATA] = {.type = NLA_BINARY,
.len = 5000 },
[QCA_WLAN_VENDOR_ATTR_CONFIG_GENERIC_LENGTH] = {.type = NLA_U32 },
[QCA_WLAN_VENDOR_ATTR_CONFIG_GENERIC_FLAGS] = {.type = NLA_U32 },
};
*/
if (wlan_cfg80211_nla_parse(attr, QCA_WLAN_VENDOR_ATTR_CONFIG_MAX,
data, data_len,
wlan_cfg80211_set_wificonfiguration_policy)) {
return -EINVAL;
}
if (attr[QCA_WLAN_VENDOR_ATTR_CONFIG_GENERIC_COMMAND]) { // 这里是 QCA_NL80211_VENDOR_SUBCMD_DBGREQ
params->command = nla_get_u32(
attr[QCA_WLAN_VENDOR_ATTR_CONFIG_GENERIC_COMMAND]);
}
if (attr[QCA_WLAN_VENDOR_ATTR_CONFIG_GENERIC_VALUE]) {
params->value = nla_get_u32(
attr[QCA_WLAN_VENDOR_ATTR_CONFIG_GENERIC_VALUE]);
}
if (attr[QCA_WLAN_VENDOR_ATTR_CONFIG_GENERIC_DATA]) {
params->data = nla_data(
attr[QCA_WLAN_VENDOR_ATTR_CONFIG_GENERIC_DATA]);
params->data_len = nla_len(attr[QCA_WLAN_VENDOR_ATTR_CONFIG_GENERIC_DATA]);
}
if (attr[QCA_WLAN_VENDOR_ATTR_CONFIG_GENERIC_LENGTH]) {
params->length = nla_get_u32(
attr[QCA_WLAN_VENDOR_ATTR_CONFIG_GENERIC_LENGTH]);
}
if (attr[QCA_WLAN_VENDOR_ATTR_CONFIG_GENERIC_FLAGS]) {
params->flags = nla_get_u32(
attr[QCA_WLAN_VENDOR_ATTR_CONFIG_GENERIC_FLAGS]);
}
return 0;
}
综上 会调用wlan_cfg80211_dbgreq函数
static int
wlan_cfg80211_dbgreq(struct wiphy *wiphy, struct wireless_dev *wdev, const void *data, int data_len)
{
struct cfg80211_context *cfg_ctx = NULL;
struct ieee80211com *ic = NULL;
struct net_device *dev = NULL;
osif_dev *osifp = NULL;
wlan_if_t vap = NULL;
int err = 0;
struct ieee80211req_athdbg *req = (struct ieee80211req_athdbg *)data;
cfg_ctx = (struct cfg80211_context *)wiphy_priv(wiphy);
ic = cfg_ctx->ic;
dev = wdev->netdev;
osifp = ath_netdev_priv(dev);
vap = osifp->os_if;
if ((dev != NULL) && (req != NULL)){
// 到ucfg了 后面不在分析
err = ieee80211_ucfg_handle_dbgreq(dev, req, NULL, data_len);
if (!err && req->needs_reply) {
err = cfg80211_reply_command(wiphy, data_len, req, 0);
}
}
return err;
}
综上
驱动层会根据应用层传递的nl 属性来解析，并调用相应的函数，结束整体的架构如下：
cfg80211tool
工具编译过程

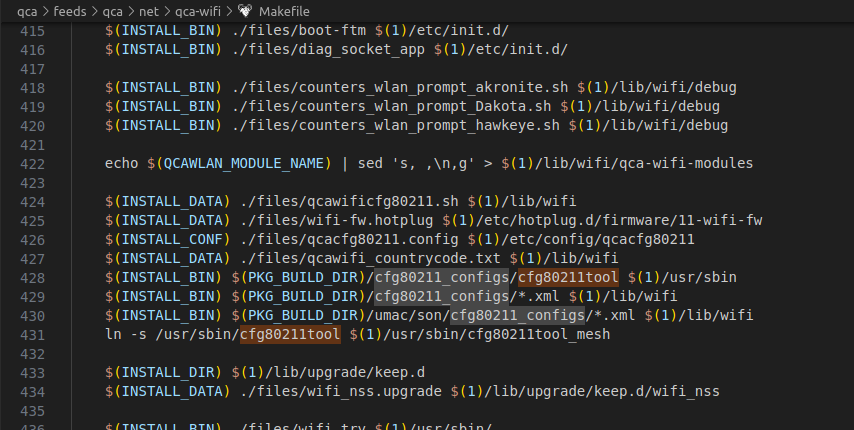

如上图所示：在qca/feeds/qca/net/qca-wifi/Makefile中会把脚本
/cfg80211_configs/cfg80211tool安装到/usr/sbin
/cfg80211_configs/*.xml安装到/lib/wifi/umac/son/cfg80211_configs/*.xml安装到/lib/wifi这个暂时不管
脚本/cfg80211_configs/cfg80211tool内如如下：
#Copyright (c) 2016,2017 Qualcomm Innovation Center, Inc.
#All Rights Reserved.
#Confidential and Proprietary – Qualcomm Innovation Center, Inc
#2016 Qualcomm Atheros, Inc.
#All Rights Reserved.
#Qualcomm Atheros Confidential and Proprietary.
row=1
xml_path=""
mesh_command="/usr/sbin/cfg80211tool_mesh"
mesh_xml_path="/lib/wifi/qcacommands_mesh.xml"
if [ "$0" == "$mesh_command" ]
then
xml_path="$mesh_xml_path"
else
xml_name=`sed -n "$row"p /sys/class/net/$1/cfg80211_xmlfile 2> /dev/null`
if [ -n "$xml_name" ]
then
xml_path="/lib/wifi/$xml_name"
fi
fi
if [ -z "$3" ]
then
val=0
else
val=$3
fi
# 这里用的的xml 在设备上存放路径为 /lib/wifi/qcacommands_vap.xml
#echo "number of arguments: $# -> $0 $1 $2 $3 $4 $5"
# Adjust command based on inputs
if [ "$#" -eq 1 ] && [ -n "$xml_path" ] ; then
cfg80211tool.1 -i $1 -f $xml_path -h list
fi
if [ "$#" -eq 2 ] && [ -n "$xml_path" ] ; then
cfg80211tool.1 -i $1 -f $xml_path -h none --START_CMD --$2 --RESPONSE --$2 --END_CMD || return 255
fi
if [ "$#" -eq 3 ] && [ -n "$xml_path" ] ; then
cfg80211tool.1 -i $1 -f $xml_path -h none --START_CMD --$2 --value0 $val --RESPONSE --$2 --END_CMD || return 255
fi
if [ "$#" -eq 4 ] && [ -n "$xml_path" ] ; then
cfg80211tool.1 -i $1 -f $xml_path -h none --START_CMD --$2 --value0 $val --value1 $4 --RESPONSE --$2 --END_CMD || return 255
fi
if [ "$#" -eq 5 ] && [ -n "$xml_path" ] ; then
cfg80211tool.1 -i $1 -f $xml_path -h none --START_CMD --$2 --value0 $val --value1 $4 --value2 $5 --RESPONSE --$2 --END_CMD || return 255
fi
if [ "$#" -eq 6 ] && [ -n "$xml_path" ] ; then
cfg80211tool.1 -i $1 -f $xml_path -h none --START_CMD --$2 --value0 $val --value1 $4 --value2 $5 --value3 $6 --RESPONSE --$2 --END_CMD || return 255
fi
if [ "$#" -eq 7 ] && [ -n "$xml_path" ] ; then
cfg80211tool.1 -i $1 -f $xml_path -h none --START_CMD --$2 --value0 $val --value1 $4 --value2 $5 --value3 $6 --value4 $7 --RESPONSE --$2 --END_CMD || return 255
fi
if [ "$#" -eq 8 ] && [ -n "$xml_path" ] ; then
cfg80211tool.1 -i $1 -f $xml_path -h none --START_CMD --$2 --value0 $val --value1 $4 --value2 $5 --value3 $6 --value4 $7 --value5 $8 --RESPONSE --$2 --END_CMD || return 255
fi
if [ "$#" -eq 9 ] && [ -n "$xml_path" ] ; then
cfg80211tool.1 -i $1 -f $xml_path -h none --START_CMD --$2 --value0 $val --value1 $4 --value2 $5 --value3 $6 --value4 $7 --value5 $8 --value6 $9 --RESPONSE --$2 --END_CMD || return 255
fi
if [ "$#" -eq 10 ] && [ -n "$xml_path" ] ; then
cfg80211tool.1 -i $1 -f $xml_path -h none --START_CMD --$2 --value0 $val --value1 $4 --value2 $5 --value3 $6 --value4 $7 --value5 $8 --value6 $9 --value7 $10 --RESPONSE --$2 --END_CMD || return 255
fi
从上面的内容可以看出，该脚本调用了cfg80211tool.1 工具，该bin文件生成过程如下：
软件包qca/feeds/qca/utils/qca-cfg80211tool下的Makefile内容如下，该软件包会生成
include $(TOPDIR)/rules.mk
PKG:=qca-cfg80211tool
PKG_NAME:=$(PKG)
PKG_SOURCE_PROTO:=git
PKG_SOURCE_URL:=ssh://qca-git01.qualcomm.com:29418/wifi/$(PKG_NAME).git
PKG_BRANCH:=master
PKG_RELEASE:=1
LOCAL_SRC:=$(TOPDIR)/qca/src/common-tools
DRIVER_PATH:=$(TOPDIR)/qca/src/qca-wifi
include $(INCLUDE_DIR)/local-development.mk
ifeq ($(DUMP)$(PKG_VERSION),)
PKG_REV:=$(shell git ls-remote $(PKG_SOURCE_URL) $(PKG_BRANCH) | cut -b -7)
PKG_VERSION:=g$(PKG_REV)
endif
PKG_BUILD_DIR:=$(BUILD_DIR)/$(PKG)-$(PKG_VERSION)
include $(INCLUDE_DIR)/package.mk
PKG_BUILD_DEPENDS:=qca-wifi
define Package/$(PKG_NAME)
SECTION:=QCA
CATEGORY:=$(QTI_SOFTWARE_CATEGORY)
URL:=http://www.qca.qualcomm.com
MAINTAINER:=Qualcomm Atheros
TITLE:= QCA cfg80211 utils
DEPENDS:=+libnl +libpthread +libroxml +iw
endef
TARGET_CFLAGS += \
-I$(STAGING_DIR)/usr/include/ \
-I$(STAGING_DIR)/usr/include/libnl \
-I$(STAGING_DIR)/usr/include/libnl3 \
-D_GNU_SOURCE=1 -D__USE_GNU=1 -D__WIN__=1 -DCONFIG_SUPPORT_LIBROXML=1
TARGET_LDFLAGS += \
-lnl-3 -lnl-genl-3 -lroxml
TARGET_CFLAGS += -fpie
TARGET_CFLAGS += -fPICassociate/AAAAAAAAAAAAAAAAA
TARGET_LDFLAGS += -pie
define Package/$(PKG_NAME)/install
$(INSTALL_DIR) $(1)/usr/sbin
$(INSTALL_BIN) $(PKG_BUILD_DIR)/vendorcmdtool/cfg80211tool.1 $(1)/usr/sbin # 这里会将生成cfg80211tool.1拷贝到/usr/sbin下
endef
$(eval $(call BuildPackage,$(PKG_NAME)))
该软件包的源码位于qca/src/common-tools/vendorcmdtool下面，源码结构如下：
.
├── common.h
├── LICENSE
├── Makefile
├── nl80211_copy.h
├── nl_cmd_wrapper.c #---根据命令 发送nl消息到底层驱动
├── nl_cmd_wrapper.h
├── NOTICE
├── ven_cmd_tool.c #----解析xml
└── ven_cmd_tool.h
Makefile内容如下：
CC ?= gcc
OBJS = ven_cmd_tool.o nl_cmd_wrapper.o
CFLAGS += -Wall -Werror
all: cfg80211tool.1
%.o: %.c
$(CC) $(CFLAGS) $(LDFLAGS) -c -o $@ $< $(LDFLAGS)
ifeq ($(CONFIG_SUPPORT_LIBROXML),1)
cfg80211tool.1: $(OBJS)
$(CC) $(LDFLAGS) -lroxml -o $@ $(OBJS)
else
cfg80211tool.1: $(OBJS)
$(CC) $(LDFLAGS) -o $@ $(OBJS)
endif
clean:
rm -rf *.o
总结：当使用cfg80211tool时候，比如执行sendmgmt 发送控制帧的命令时候，实际上会调用
cfg80211tool ath0 sendmgmt 000FFF01401100001800000040003c00000fff014011000fff010003000fff0140110000
实际调用是/usr/sbin/cfg80211tool.sh 脚本，然后脚本在根据输入的sendmgmt和 000FFF01401100001800000040003c00000fff014011000fff010003000fff0140110000这两个参数 ，调用cfg80211tool.1 bin工具 解析 /lib/wifi/qcacommands_vap.xml里面的内容，
创建内核nl socket
根据sendmgmt和/lib/wifi/qcacommands_vap.xml匹配 创建nl消息，把数据发送到驱动层，驱动层解析nl消息，然后执行对应的函数。
下面以cfg80211tool sendmgmt 发送管理帧为例说明：
cfg80211tool ath0 sendmgmt 000FFF01401100001800000040003c00000fff014011000fff010003000fff0140110000
应用层解析xml和输入参数
/usr/sbin/cfg80211tool.sh ath0 sendmgmt 000FFF01401100001800000040003c00000fff014011000fff010003000fff0140110000该句在脚本/usr/sbin/cfg80211tool.sh中有三个参数
$1 = ath0 $xml_path = /lib/wifi/qcacommands_vap.xml $2 = sendmgmt $val = $3=000FFF01401100001800000040003c00000fff014011000fff010003000fff0140110000 if [ "$#" -eq 3 ] && [ -n "$xml_path" ] ; then cfg80211tool.1 -i $1 -f $xml_path -h none --START_CMD --$2 --value0 $val --RESPONSE --$2 --END_CMD || return 255 fi
相当于下面的代码
val = 000FFF01401100001800000040003c00000fff014011000fff010003000fff0140110000 cfg80211tool.1 -i ath0 -f /lib/wifi/qcacommands_vap.xml -h none --START_CMD --sendmgmt --value0 $val --RESPONSE --sendmgmt --END_CMD || return 255
cfg80211tool.1程序
qca/src/common-tools/vendorcmdtool/ven_cmd_tool.c 下面的main函数如下：
int main(int argc, char **argv) { parseCmdinputs(info, argc, argv, cmds[NLMSG_TYPE_COMMAND],&option_index, data); { nlmsg = prepareNLMsg(info, command.attr_id[c], data.iface); { genlmsg_put(nlmsg, /* pid = */ 0, /* seq = */ 0, info->nl80211_family_id, 0, 0, NL80211_CMD_VENDOR, /* version = */ 0); res = nla_put(nlmsg, NL80211_ATTR_VENDOR_ID, sizeof(uint32_t), &OUI); res = nla_put(nlmsg, NL80211_ATTR_VENDOR_SUBCMD, sizeof(uint32_t), &cmdid); } nlVenData = startVendorData(nlmsg); //填充xml写入的数据到nl中 这里不错分析 // 发送消息 ret = sendNLMsg(info, nlmsg, &resp_info); } }
经过上面对xml和用户输入参数的解析，现在msg中存放的消息内容如下：
NL80211_CMD_VENDOR
NL80211_ATTR_VENDOR_ID OUI
NL80211_ATTR_VENDOR_SUBCMD 从xml文件得到vendorCmd id值为74 对应QCA_NL80211_VENDOR_SUBCMD_SET_WIFI_CONFIGURATION
QCA_WLAN_VENDOR_ATTR_CONFIG_GENERIC_COMMAND 248
QCA_WLAN_VENDOR_ATTR_CONFIG_GENERIC_DATA 000FFF01401100001800000040003c00000fff014011000fff010003000fff0140110000
参见前面介绍的[extract_generic_command_params]章节介绍，nl消息解析策略如下：
static const struct nla_policy wlan_cfg80211_set_wificonfiguration_policy[QCA_WLAN_VENDOR_ATTR_CONFIG_MAX + 1] = { [QCA_WLAN_VENDOR_ATTR_CONFIG_GENERIC_COMMAND] = {.type = NLA_U32 }, [QCA_WLAN_VENDOR_ATTR_CONFIG_GENERIC_VALUE] = {.type = NLA_U32 }, [QCA_WLAN_VENDOR_ATTR_CONFIG_GENERIC_DATA] = {.type = NLA_BINARY, .len = 5000 }, [QCA_WLAN_VENDOR_ATTR_CONFIG_GENERIC_LENGTH] = {.type = NLA_U32 }, [QCA_WLAN_VENDOR_ATTR_CONFIG_GENERIC_FLAGS] = {.type = NLA_U32 }, };
所以驱动只支持策略中的5种格式，
对应的ATTR宏定义如下：
所以xml中
<VendorCmd name="sendmgmt" ID="74" DEFAULTS="17"> <Attribute name="dparam0" ID="17" TYPE="u32" DEFAULT="248"/> # id=17 对应 QCA_WLAN_VENDOR_ATTR_CONFIG_GENERIC_COMMAND <Attribute name="value0" ID="19" TYPE="blob"/> # id =19 对应QCA_WLAN_VENDOR_ATTR_CONFIG_GENERIC_DATA在， </VendorCmd>
也就是在cfg80211tool.1程序中，
ID=17的 put QCA_WLAN_VENDOR_ATTR_CONFIG_GENERIC_COMMAND nl消息中
ID=19的 put QCA_WLAN_VENDOR_ATTR_CONFIG_GENERIC_DATA nl消息中
如果xml后面还有Attribute name，比如ID=18
ID=18的put QCA_WLAN_VENDOR_ATTR_CONFIG_GENERIC_VALUE nl消息中
ID=20的put QCA_WLAN_VENDOR_ATTR_CONFIG_GENERIC_LENGTH nl消息中
ID=21的put QCA_WLAN_VENDOR_ATTR_CONFIG_GENERIC_FLAGS nl消息中
**注意：**至于上面提到的TYPE=”blob” 是cfg80211tool.1规定的，会把该类型的数据当做QCA_WLAN_VENDOR_ATTR_CONFIG_GENERIC_DATA放入nl消息中。

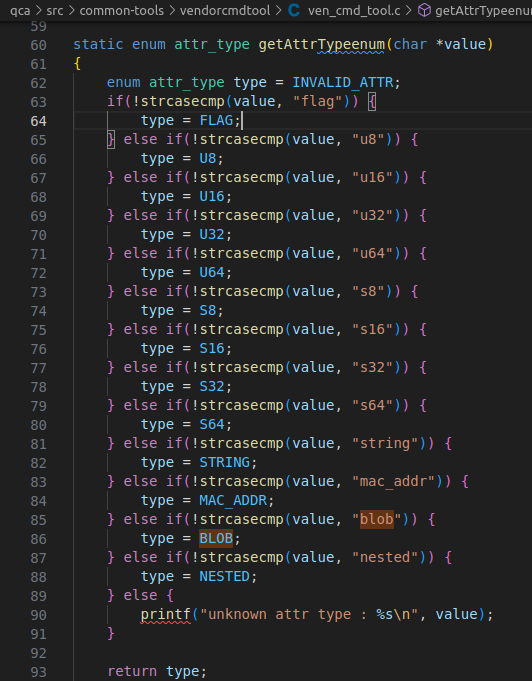

cfg80211tool.1工具中 一共支持以下数据类型
至于这些类型如何放入nl消息的 参见下面的函数
static status fillAttribute(struct cmd_params *cmd, int *c, struct nl_msg *nlmsg, int isdefault) { switch (cmd->data_type[*c]) { case FLAG: { if (nla_put_flag(nlmsg, cmd->attr_id[*c]) != SUCCESS) { printf("nla_put failed for attr: %d\n", cmd->attr_id[*c]); return MEM_NOT_AVAILABLE; } } break; case U8: { uint8_t value; if (isdefault) value = (uint8_t) strtoul(cmd->default_val[*c].val, NULL, 0); else value = (uint8_t) strtoul(optarg, NULL, 0); if (nla_put(nlmsg, cmd->attr_id[*c], sizeof(uint8_t), &value) != SUCCESS) { printf("nla_put failed for attr: %d, data : %u\n", cmd->attr_id[*c], value); return MEM_NOT_AVAILABLE; } } break; case U16: { uint16_t value; if (isdefault) value = (uint16_t) strtoul(cmd->default_val[*c].val, NULL, 0); else value = (uint16_t) strtoul(optarg, NULL, 0); if (nla_put(nlmsg, cmd->attr_id[*c], sizeof(uint16_t), &value)) { printf("nla_put failed for attr: %d, data : %u\n", cmd->attr_id[*c], value); return MEM_NOT_AVAILABLE; } } break; case U32: { uint32_t value; if (isdefault) value = (unsigned int ) strtoul(cmd->default_val[*c].val, NULL, 0); else value = (unsigned int ) strtoul(optarg, NULL, 0); if (nla_put(nlmsg, cmd->attr_id[*c], sizeof(uint32_t), &value)) { printf("nla_put failed for attr: %d, data : %u\n", cmd->attr_id[*c], value); return MEM_NOT_AVAILABLE; } } break; case U64: { uint64_t value; if (isdefault) value = (uint64_t) strtoul(cmd->default_val[*c].val, NULL, 0); else value = (uint64_t) strtoul(optarg, NULL, 0); //TODO: strtoul doesn't work for 64-bit types if (nla_put(nlmsg, cmd->attr_id[*c], sizeof(uint64_t), &value)) { printf("nla_put failed for attr: %d, data : %"PRIu64"\n", cmd->attr_id[*c], value); return MEM_NOT_AVAILABLE; } } break; case S8: { int8_t value; if (isdefault) value = (int8_t) strtoul(cmd->default_val[*c].val, NULL, 0); else value = (int8_t) strtoul(optarg, NULL, 0); if (nla_put(nlmsg, cmd->attr_id[*c], sizeof(int8_t), &value)) { printf("nla_put failed for attr: %d, data : %d\n", cmd->attr_id[*c], value); return MEM_NOT_AVAILABLE; } } break; case S16: { int16_t value; if (isdefault) value = (int16_t) strtoul(cmd->default_val[*c].val, NULL, 0); else value = (int16_t) strtoul(optarg, NULL, 0); if (nla_put(nlmsg, cmd->attr_id[*c], sizeof(int16_t), &value)) { printf("nla_put failed for attr: %d, data : %d\n", cmd->attr_id[*c], value); return MEM_NOT_AVAILABLE; } } break; case S32: { int32_t value; if (isdefault) value = (int32_t) strtoul(cmd->default_val[*c].val, NULL, 0); else value = (int32_t) strtoul(optarg, NULL, 0); if (nla_put(nlmsg, cmd->attr_id[*c], sizeof(int32_t), &value)) { printf("nla_put failed for attr: %d, data : %d\n", cmd->attr_id[*c], value); return MEM_NOT_AVAILABLE; } } break; case S64: { int64_t value; if (isdefault) value = (int64_t) strtoul(cmd->default_val[*c].val, NULL, 0); else value = (int64_t) strtoul(optarg, NULL, 0); //TODO: atoi doesn't work for 64-bit types if (nla_put(nlmsg, cmd->attr_id[*c], sizeof(int64_t), &value)) { printf("nla_put failed for attr: %d, data : %"PRId64"\n", cmd->attr_id[*c], value); return MEM_NOT_AVAILABLE; } } break; case STRING: { char *value; if (isdefault) value = cmd->default_val[*c].val; else value = optarg; if (nla_put(nlmsg, cmd->attr_id[*c], strlen(value), value)) { printf("nla_put failed for attr: %d, data : %s\n", cmd->attr_id[*c], optarg); return MEM_NOT_AVAILABLE; } } break; case BLOB: { char data[256]; if (string_to_hex(&data[0], 256, optarg, strlen(optarg)) != 0) { printf("Not able to parse hex data for attr: %d, data : %s\n", cmd->attr_id[*c], optarg); return INVALID_ARG; } if (nla_put(nlmsg, cmd->attr_id[*c], strlen(optarg)/2, data)) { printf("nla_put failed for attr: %d, data : %s\n", cmd->attr_id[*c], optarg); return MEM_NOT_AVAILABLE; } } break; case MAC_ADDR: { u8 mac_addr[MAC_ADDR_LEN]; char *value; if (isdefault) value = cmd->default_val[*c].val; else value = optarg; if (extract_mac_addr(mac_addr, value) == SUCCESS) { if (nla_put(nlmsg, cmd->attr_id[*c], 6, mac_addr)) { printf("nla_put failed for attr: %d, data : %s\n", cmd->attr_id[*c], value); return MEM_NOT_AVAILABLE; } } else { printf("Failed to parse mac address\n"); } } break; default: printf ("Uknown data type : %d\n", cmd->data_type[*c]); } return 0; }
消息发送后，到驱动层
驱动层解析
到驱动层，NL80211_CMD_VENDOR对应的ops 然后根据[nl80211_vendor_cmd函数解析]介绍，会调用NL80211_ATTR_VENDOR_SUBCMD=QCA_NL80211_VENDOR_SUBCMD_SET_WIFI_CONFIGURATION
对应的ops函数为wlan_cfg80211_set_wificonfiguration。
const struct wiphy_vendor_command wlan_cfg80211_vendor_commands[] = {
{
.info.vendor_id = QCA_NL80211_VENDOR_ID,
.info.subcmd = QCA_NL80211_VENDOR_SUBCMD_SET_WIFI_CONFIGURATION,
.flags = WIPHY_VENDOR_CMD_NEED_WDEV |
WIPHY_VENDOR_CMD_NEED_NETDEV,
.doit = wlan_cfg80211_set_wificonfiguration
},
{
.info.vendor_id = QCA_NL80211_VENDOR_ID,
.info.subcmd = QCA_NL80211_VENDOR_SUBCMD_GET_WIFI_CONFIGURATION,
.flags = WIPHY_VENDOR_CMD_NEED_WDEV |
WIPHY_VENDOR_CMD_NEED_NETDEV,
.doit = wlan_cfg80211_get_wificonfiguration
},
//此处省略了n行
};
在wlan_cfg80211_set_wificonfiguration函数中继续解析
static int wlan_cfg80211_set_wificonfiguration(struct wiphy *wiphy, struct wireless_dev *wdev, const void *data, int data_len) { struct cfg80211_context *cfg_ctx = NULL; struct ieee80211com *ic = NULL; struct wlan_cfg8011_genric_params generic_params; int return_value = 0; int i; cfg_ctx = (struct cfg80211_context *)wiphy_priv(wiphy); ic = cfg_ctx->ic; qdf_mem_zero(&generic_params, sizeof(generic_params)); extract_generic_command_params(wiphy, data, data_len, &generic_params); // 解析策略分析过 /* call extract_generic_command_params */ switch(generic_params.command) { case QCA_NL80211_VENDORSUBCMD_SEND_MGMT: return_value = wlan_cfg80211_send_mgmt(wiphy, wdev, &generic_params); break; } return return_value; }
extract_generic_command_params函数分析
参见前面介绍的[extract_generic_command_params]章节介绍
后面的参见【高通QSDK 应用层发送控制帧.md/代码解析】 章节
static int wlan_cfg80211_send_mgmt(struct wiphy *wiphy, struct wireless_dev *wdev, struct wlan_cfg8011_genric_params *params) { int ret = 0; struct ieee80211req_mgmtbuf *mgmt_frm; struct cfg80211_context *cfg_ctx = NULL; struct ieee80211com *ic = NULL; wlan_if_t vap = NULL; int cmd_type; void *cmd; uint32_t *data = (u_int32_t *) params->data; int i; cfg_ctx = (struct cfg80211_context *)wiphy_priv(wiphy); ic = cfg_ctx->ic; cmd = extract_command(ic, wdev, &cmd_type); if (cmd_type == VAP_CMD) { vap = (wlan_if_t)cmd; } else { qdf_err(" %s Command on invalid interface \n", __func__); return -EINVAL; } // 把000FFF0140110000 18000000 4000 3c00 000fff014011 000fff010003 000fff014011 0000 数据转换为ieee80211req_mgmtbuf类型的数据 /* * struct ieee80211req_mgmtbuf { * u_int8_t macaddr[IEEE80211_ADDR_LEN]; // 目的地址，虽然这里定义6字节，但是考虑到字节对齐，我们传递进来还是4字节对齐的000FFF0140110000 * u_int32_t buflen; // buf长度，这里定义为4字节，故而可以解释上面 0x18 在传递的时候是18000000 * u_int8_t buf[]; // buf[] = 4000 3c00 000fff014011 000fff010003 000fff014011 0000 * }; */ mgmt_frm = (struct ieee80211req_mgmtbuf *) params->data; /* WIM_LOG_DEBUG("SEND MGMT:start:mac:%s datalen:%d buflen:%d",ether_sprintf(mgmt_frm->macaddr),params->data_len,mgmt_frm->buflen); for(i=0;i<params->data_len;i++){ printk("%02x ",((uint8_t*)params->data)[i]); } printk("\n"); */ if(mgmt_frm->buflen >= 37 && mgmt_frm->buf[24] == 0xff) { qdf_err(" %s unknown action frame\n", __func__); return -EINVAL; } /* if the macaddr requested is for broadcast then search for all connected sta and send the mgmt packet */ if(vap) { // 如果是广播的话，就跑到这里，我们上面传递的不是广播 if(IEEE80211_IS_BROADCAST(mgmt_frm->macaddr)) { ret = wlan_iterate_station_list(vap, wlan_cfg80211_sta_send_mgmt, mgmt_frm); } else { //故而走该分支，从这里可以看出，驱动是如何把数据解析为结构体 用的 ret = wlan_send_mgmt(vap, mgmt_frm->macaddr, mgmt_frm->buf, mgmt_frm->buflen); // 下面就是wlan_send_mgmt函数的问题了 ，这里不在分析 } } else { qdf_err("%s: Invalid vap \n", __func__); return -EINVAL; } /* wlan_iterate_station_list returns the number of sta connected, so return error only if the return value is less than zero */ if (ret < 0) { return ret; } else { return 0; } }
cfg80211tool参考文档
该部分是参考[WLAN Driver CFG80211 User Guide]文章
